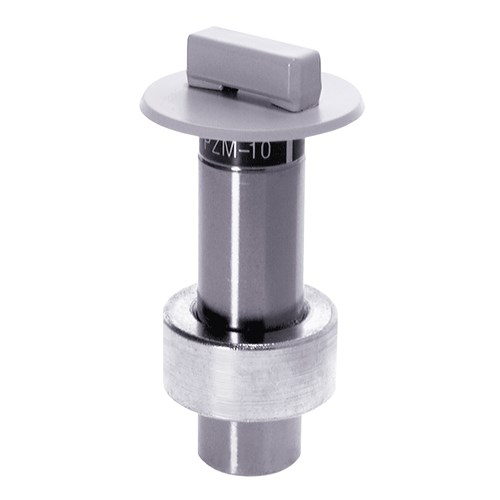

AKG PZM10 LL Professional flush mount line level boundary layer microphone

Product Code: AKG 3327H00010

Key Features
Low profile boundary layer microphone, Line level version
$781.86 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

The PZM10 LL, part of the Pressure Zone Microphone® line, is designed for security, surveillance, and conference-table use. The special housing design allows the microphone to be mounted into tables, walls or ceilings easily and inconspicuously.

Using Pressure Zone Microphone® technology, the PZM10 LL is highly sensitive and delivers a wide and smooth frequency response. Thus, the PZM10 LL is characterized by excellent clarity and a consistent pickup anywhere around the mic.

Features

Hemispherical polar pattern

For clear intelligible pickup of speech

Low-profile cylindrical design

Perfect for wall or tabletop installation

Line-level output

Line-level output – unterminated cable for optimized level matching

PZM10 LL powered by 12V - 24V/DC unterminated wires

For the most flexible connectivity

Warranty

We offer a 3 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Audio frequency bandwidth 80 - 20000 Hz
Equivalent noise level 26 dB-A
Sensitivity 2.5 mV/Pa
Signal to Noise 68 dB-A
Recommended load impedance 2000 Ohms

Dimensions

Height 72 mm
Diameter 39 mm
Net Weight 74 g

Design

Finish off-white

Audio Output

Type Line Level Output – Unterminated Cable

Powering Interface

Voltage 12 to 48 V

Application

Retail Yes

Device

Boundary Layer Microphone Yes
