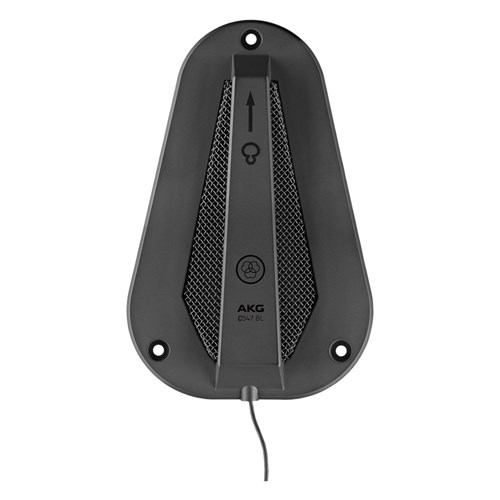

AKG C547 BL Professional boundary layer microphone

Product Code: AKG 2447H00010

Key Features
C547 is a hypercardioid professional boundary layer microphone. The rugged, non-crush case and a switchable bass-cut filter make the C547 an ideal choice for tough on-stage assignments. Using PCC® (Phase Coherent Cardioid®) technology with hypercardioid polar pattern, the microphone provides high directivity and neutral sound. The C547 is built on the same acoustical components as the legendary C747 V11.
$3,205.09 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

The C547 is a hypercardioid professional boundary layer microphone. The rugged, non-crush case and a switchable bass-cut filter make the C547 an ideal choice for tough on-stage assignments. Using PCC® (Phase Coherent Cardioid®) technology with hypercardioid polar pattern, the microphone provides high directivity and neutral sound. The C547 is built on the same acoustical components as the legendary C747 V11.

Primarily designed for use in houses of worship, theaters and conferencing, the C547 BL is also a good choice for miking kick drums and other instruments. The highly efficient RFi-Shield technology substantially reduces interference noise due to electromagnetic pollution.

Features

Hypercardioid polar pattern

For maximum rejection of disturbing signals

Acoustics based on C747 V11

For wide, smooth frequency response

RFi-Shield technology

Reduces interference noise due to electromagnetic pollution

Rugged, low profile housing

Withstands the rigors of the stage

Paintable grille assembly

To blend in with stage decoration

Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Audio frequency bandwidth 30 - 18000 Hz
Equivalent noise level 22 dB-A
Sensitivity 8.5 mV/Pa
Signal to Noise 72 dB-A
Bass cut filter 150 Hz
Recommended load impedance 1000 Ohms
Polar Pattern Hypercardioid

Dimensions

Length 120 mm
Width 185 mm
Height 19 mm
Net Weight 160 g

Design

Finish matte dark gray

Audio Output

Type Balanced XLR
Gender Male
Contacts 6-pin

Powering Interface

Voltage 9 to 52 V
Current 2 mA

Device

Boundary Layer Microphone Yes
