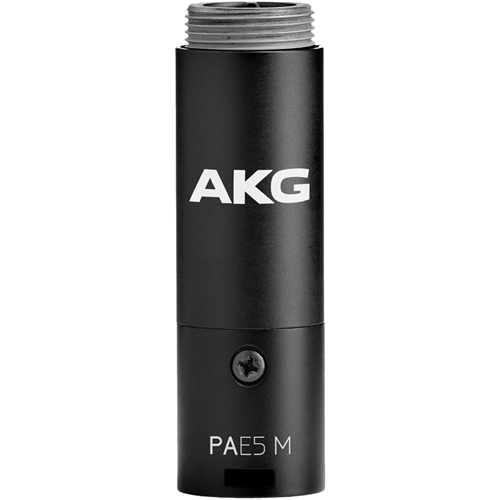

AKG PAE5 M Reference phantom power module to combine with automixers DAM+ Series

Product Code: AKG 3165H00160

Key Features
Phantompower adapter - 5pinXLR
$291.15 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Stock on order
  • Features
  • Overview
  • Technical Specs
  • Documents

The PAE5 M reference phantom power module for fixed and mobile installation provides a five-pin XLR connector that allows the audio signal and the control voltage for a LED ring to be fed separately. Thus, the LED ring can be activated remotely by a 9-52V logic output from any automatic mixer to show the 'mic on' status. With its wide voltage range the module will fit most available microphone mixers. The PAE5 M features a bass roll off for reduction of structure-borne noise. Its integrated system connector with gold-plated contacts securely fits all available gooseneck modules of the DAM+ Series as well as the HM1000 M hanging module.

Features

Extra feeding of LED ring to show mic status

For use with automixers including logic outputs

Highly reliable contacts to mounting modules

Prevent contact problems and ensure extra-long life

RFi Shield technology

Provides high immunity to radio-frequency interference

Feeds all DAM+ Series capsules

For highest flexibility

Switchable bass roll off

For reduction of body noise and proximity effect

Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Audio frequency bandwidth 20 - 20000 Hz
Bass cut filter 150 Hz
Electrical impedance < 600 Ohms
Recommended load impedance > 2000 Ohms

Dimensions

Height 65.5 mm (2.58 in)
Diameter 19.1 mm (0.75 in)
Net Weight 43 g (1.51 oz)

Audio Output

Type Balanced XLR
Gender Male
Contacts 5-pin

Powering Interface

Voltage 9 to 52 V
Current 3.5 mA
