AKG GN30 M 300mm 11.8 Inch Reference modular gooseneck module DAM+ Series

Product Code: AKG 3165H00090

Key Features
30cm gooseneck module; does not include capsule or powering module.
$356.59 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

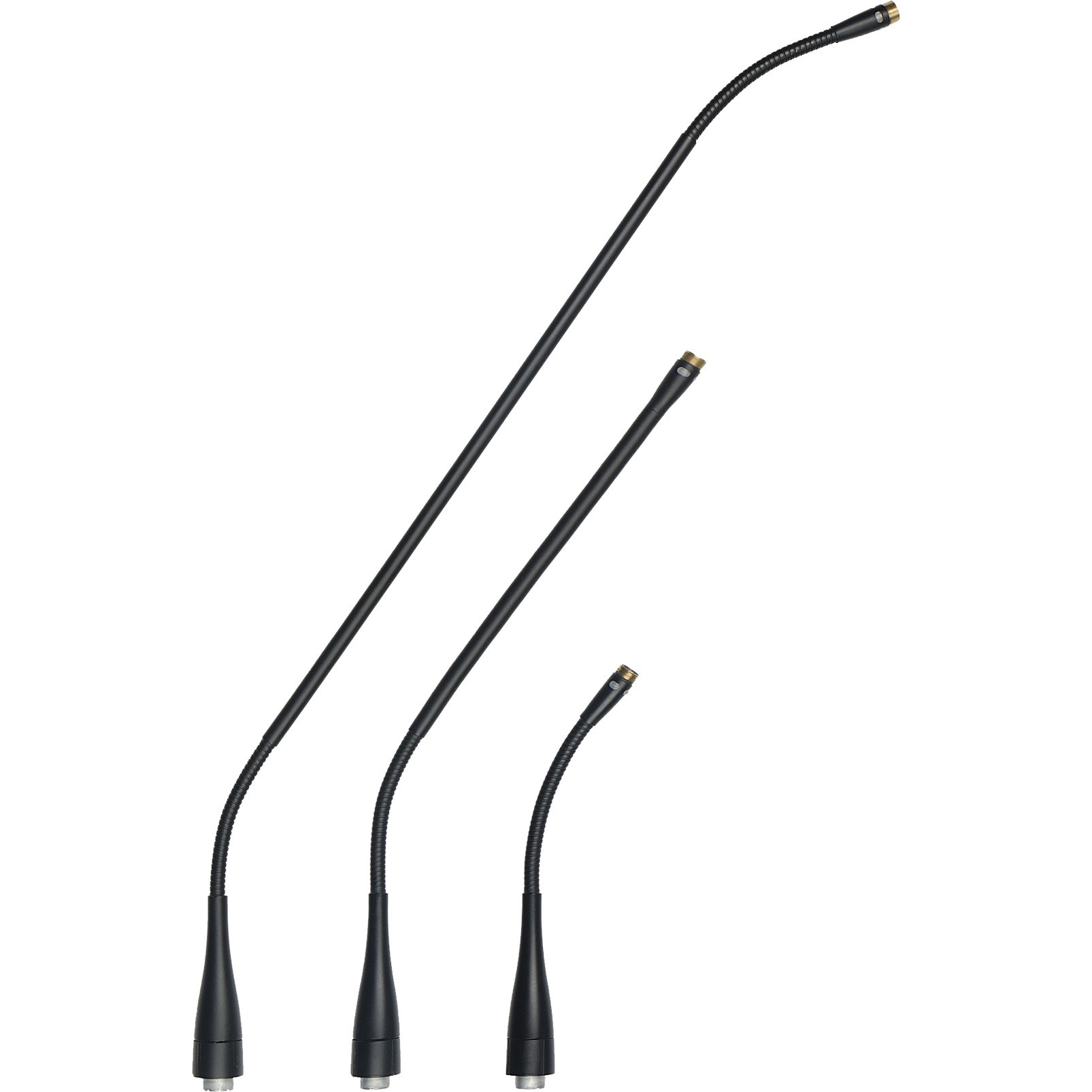

The DAM+ Series reference gooseneck modules for permanent and mobile installation are available in three different lengths: 165mm (6.5in), 300mm (11.8in) or 500mm (19.7in). The extremely slim and rugged gooseneck modules feature an LED ring which indicates whether the phantom power is on or off. A special light-ring expander comes with every DAM+ gooseneck module to improve the visibility of the LED ring if necessary. For quick setup and maximum flexibility all gooseneck modules come with a DAM+ Series system connector. This high quality connector with gold- plated contacts reliably fits all available phantom power modules. The gooseneck module is compatible with all DAM+ Series capsules, CK41, CK43, CK49 via self-cleaning contacts. Their extremely deep thread groove prevents misalignment and ensures a long useful life of all DAM+ components.

Features

Extremely rugged gooseneck construction

For an extra-long life of reliability and stability

Highly reliable contacts for capsule modules

Prevent contact problems and ensure extra-long life

Integrated switchable LED ring

To show system status

Integrated system connector

Helps save stock keeping costs

Broad assortment of mounting accessories available

For quick and hassle-free installation

Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Diameter Gooseneck 6 mm (0.24 in)
Diameter Connector 9 mm top (0.35 in) 11,3 mm bottom (0.44 in)
Total Length 300 mm (11.81 in)
Number of Flexible Parts 1
Net Weight 94 g (3.31 oz)
Finish Matte Black
