AKG HM1000 M Reference hanging module DAM+ Series

Product Code: AKG 3165H00250

Key Features
Hanging module with 10m system cable; does not include capsule or powering module.
$258.45 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

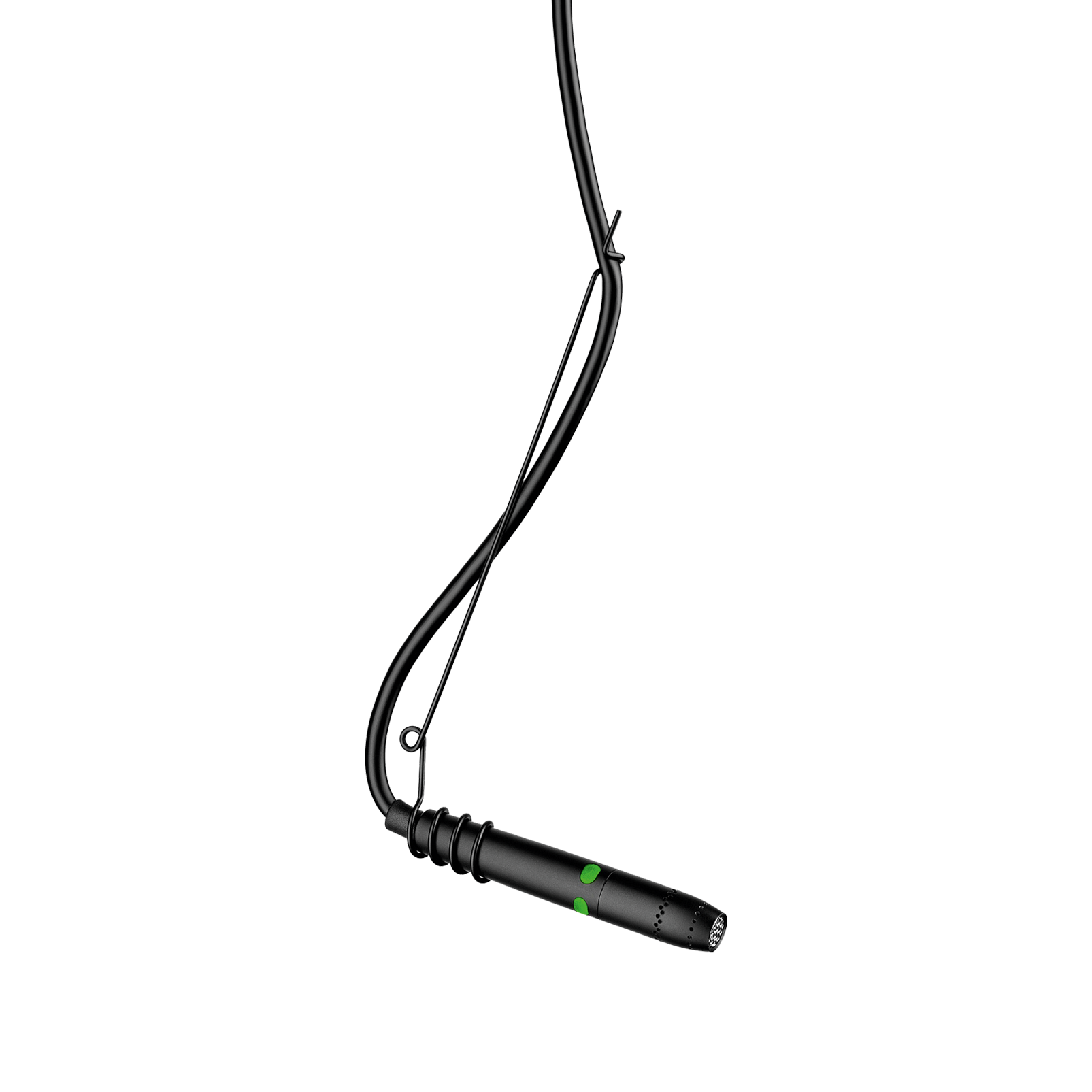

The HM1000 M is a reference hanging module compatible with all capsules of the DAM+ Series (CK41, CK43 and CK49). It is used to fly microphones from the ceiling to record music or speech in places of worship or conference rooms, or on theater stages. An integrated switchable light-ring shows the status of the microphone at a glance. A special light-ring expander comes with every DAM+ hanging module to improve the visibility of the LED ring if necessary. The HM1000 M provides a 10m (33ft) special cable that will not tend to twist, even if the temperature varies. A spring steel hanging clamp for precise microphone alignment is also included in the package. The integrated system connector fits all available phantom power modules of the DAM+ Series.

Features

Twist-free 10m cable included

To fix and secure the designated mic position

Highly reliable contacts for capsule modules

Prevent contact problems and ensure extra-long life

Spring clamp for vertical adjustment

Allows quick and hassle-free installation

Integrated switchable LED ring indicator

For full control of the installation status

Ingenious system connector interface

Adapter adds flexibility to all mounting modules

Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Finish Matte Black
Diameter Connector 9 mm top (0.35 in) 11,3 mm bottom (0.44 in)
Total Length 10 m (393.7 in)
Cable Length 10 m (393.7 in)
Net Weight 184 g (6.49 oz)

Dimensions

Length 10
Diameter 6
Net Weight 184
