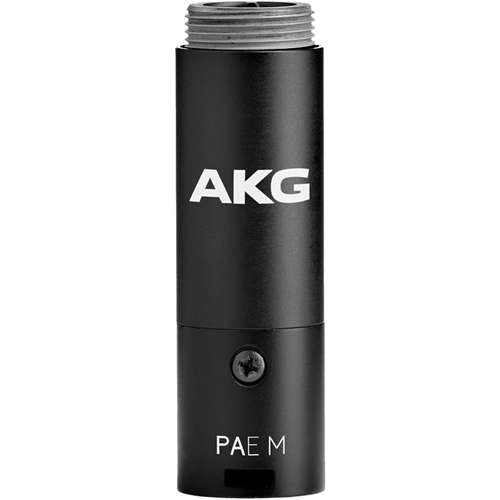

AKG PAE M Reference phantom power module DAM+ Series

Product Code: AKG 3165H00150

Key Features
Phantompower adapter - 3pinXLR
$225.72 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

The PAE M reference phantom power module for fixed and mobile installation provides a gold-plated three-pin XLR connector. With its wide voltage range the module will fit most available microphone mixers. The module also features a 250 Hz bass roll off for reduction of structure-borne noise. The PAE M comes with an integrated system connector with gold- plated contacts. This unique connection securely fits all available gooseneck modules of the DAM+ Series as well as the HM1000 M hanging module.

Features

Feeds all DAM+ Series capsules

For highest flexibility

RFi Shield technology

Provides high immunity to radio-frequency interference

Accepts 9-52V input

For almost any available mixer inputs

Switchable bass roll off

For reduction of body noise and proximity effect

Highly reliable contacts to mounting modules

Prevent contact problems and ensure extra-long life

Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Audio frequency bandwidth 20 - 20000 Hz
Bass cut filter 150 Hz
Electrical impedance < 600 Ohms
Recommended load impedance > 2000 Ohms

Dimensions

Height 65.5 mm (2.58 in)
Diameter 19.1 mm (0.75 in)
Net Weight 43 g (1.51 oz)

Audio Output

Type Balanced XLR
Gender Male
Contacts 3-pin

Powering Interface

Voltage 9 to 52 V
Current 3.5 mA
