  • Home
  • NETGEAR M4300-52G-POE+ 48-port PoE+ Layer 3 Fully Managed Stackable Switch with 2 x 10GBASE-T and 2 x SFP+ and 550W PSU

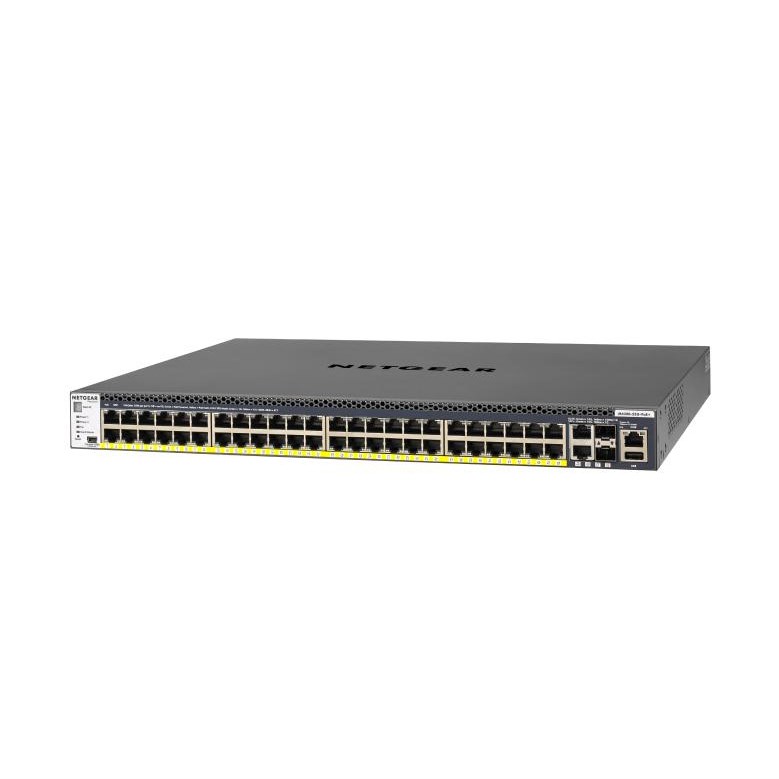

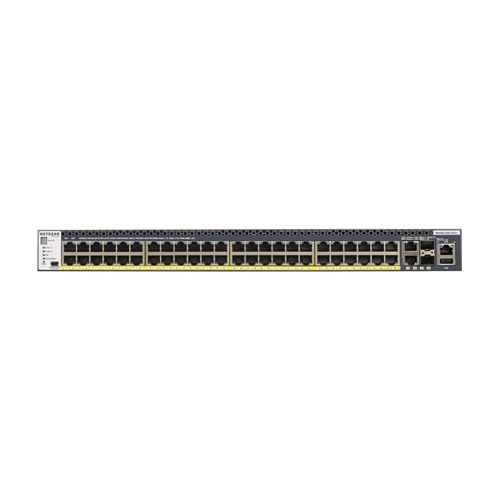

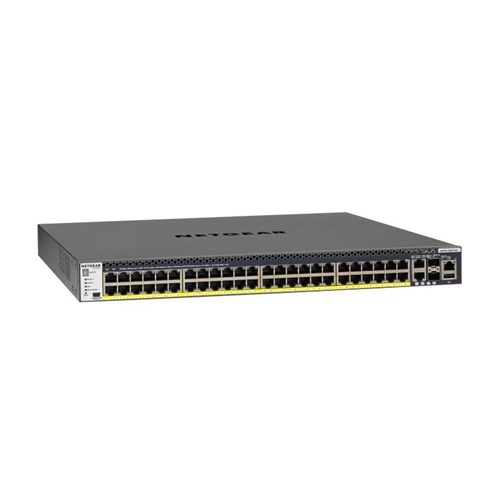

NETGEAR M4300-52G-POE+ 48-port PoE+ Layer 3 Fully Managed Stackable Switch with 2 x 10GBASE-T and 2 x SFP+ and 550W PSU

Product Code: NGR GSM4352PA-100AJS

Key Features
  • 48-port 1000BASE-T (RJ45) PoE+
  • 2-port 10GBASE-T (RJ45) all independent
  • 2-port 10GBASE-X (SFP+) all independent
  • 176Gbps non-blocking fabric across 52 ports
  • Out-of-band 1G Ethernet Management port
  • Mini-USB and RJ45 RS232 console ports and USB storage port
  • Full L3 feature set and non-stop forwarding (NSF) stacking
  • Full width form factor with one-unit rack mount kit
  • (GSM4352PA) Ships with one modular APS550W PSU in first power supply slot
  • Ship with a blank cover in the second power supply slot
$5,999.00 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time 4-6 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

NETGEAR M4300-52G-POE+ 48-port PoE+ Layer 3 Fully Managed Stackable Switch with 2 x 10GBASE-T and 2 x SFP+ and 550W PSU



RELIABILITY:

Business Continuity Management - Full-width switches offer dual redundant, modular power supplies (select m4300 models)

High Availability (HA) - Non-stop forwarding (NSF) virtual chassis architectures with hitless failover across the stack

Multi-Resiliency - Stacking and distributed link aggregation allow for zero downtime and load balancing capabilities

PVST+ Interoperability - Per VLAN Spanning Tree and Per VLAN Rapid Spanning Tree (PVSTP/PVRSTP)

Link Dependency - Enables or disables ports based on link state of different ports

Advanced IPv4/IPv6 security - Malicious code detection, DHCP Snooping, IP Source Guard protection and DoS attacks mitigation

Fiber Ports - 48 SFP+ Fiber ports have 1G/10G speeds & 2x 10Gb Copper



EASY TO MANAGE:

Simple GUI - Full- functional Web console (GUI) for IT admins who prefer an intuitive graphical interface

Flexible & Efficient - Line-rate Spine and Leaf topologies offer many possibilities for server rooms, branch collapsed cores, or at the edge of growing networks.

Mix & Match Stacking - Stack between 10/40 Gigabit and 1 Gigabit models using any 10G/40G port, with any media type (RJ45, SFP+, DAC cables). Vertical, horizontal, manage as one unit

Room to Grow - With PoE+, plug and play ports, and hot swap, you're ready to grow whenever you need to.

Industry Standard - SNMP, RMON, MIB, LLDP, AAA, sFlow, RSPAN and PTPv2 1-step transparent clock implementation (select M4300 models)



READY FOR AN AV OVER IP:

Zero Touch AV-over-IP - Pre-configured for Out-of-Box L2 Multicast (SDVoE-ready)

No Delay - Non-Blocking Fabric for Near-Zero Switch Latency

NETGEAR IGMP Plus™ - Prevent network flooding with effortless multicast implementation of Layer 2 Multicast



Designed for AV Pros - NETGEAR M4300 Switches

What is AV-over-IP?

Tech Tips: How to Create a Layer 2 VLAN on an M4300 switch:

How to Log in to the NETGEAR M4300 Switch Through the Command Line:

How to Log in to the NETGEAR M4300 Switch Using the Web GUI:

Warranty

We offer a Limited Lifetime warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Hardware Features:

  • Hardware Specifications : 48x1G PoE+ Stackable Managed Switch with 2x10GBASE-T and 2xSFP+ (550W PSU)
  • Ordering Number : GSM4352PA
  • Acoustics : 39.8dB @ 25°C (77°F)
  • Power Consumption (Max) : 865 Watts
  • 1G RJ45 Ports : 48 x 10/100/1000
  • 10G RJ45 Ports : 2 x 10GBASE-T (Fast Ethernet, 1G and 10G speeds)
  • 10G Fiber SFP+ Ports : 2 x SFP+ (1G and 10G speeds)
  • Power over Ethernet : 48 x PoE+ 30W
  • PoE Budget (Watts) : 480W PoE Budget with 1 PSU @ 110V / 220V AC input
  • 480W PoE Budget with 2 PSUs in redundant RPS mode @ 110V / 220V AC input
  • 720W PoE Budget with 2 PSUs in shared EPS mode @ 110V / 220V AC input
  • External RPS4000v2 for power redundancy (RPS) when 2 internal PSUs are used in EPS mode
  • Feature Set : Layer 3 (static, policy-based and RIP OSPF VRRP PIM dynamic routing)
  • Management Ports : 1G Ethernet service port for out-of-band management (OOB, RJ45)
  • RS232 straight-through serial RJ45 for local management console
  • Mini-USB port for local management console
  • USB port for local storage, logs, configuration or image files
  • Form Factor : Full width with dual, redundant modular PSUs for business continuity

Software Features:

  • Table Sizes : 128K MAC 8k ARP / NDP
  • Up to 960 Gbps
  • Throughput up to 714 Mpps
  • Application Static Routing- 64v4 / 64v6 RIP: 512 OSPF: 512
  • Latency : 0.9µs 10g, 1.25µs 10g
  • IP Multicast : ,024 IPv4 / 512 IPv6
  • Multicast IGMP Membership : 2k IPv4 / IPv6
  • M4300 Series features : License-free L2 and Layer 3, Layer 4 with Policy Based Routing, RIP, VRRP, OSPF and PIM
  • VLANS: 4k with 2K DHCP Server Leases, IPv4: 256 Pools / IPV6: 16 Pools
  • Mix-and-match Stackable Managed Switch Platform with nonstop forwarding and failover on all 1Gb to 10Gb models
  • Pre-configured for AV-over-IP L2 Multicast on all models 10G models (SDVoE Ready)
  • PoE+ Options (30W per port) with hot swap & redundant PSUs options
