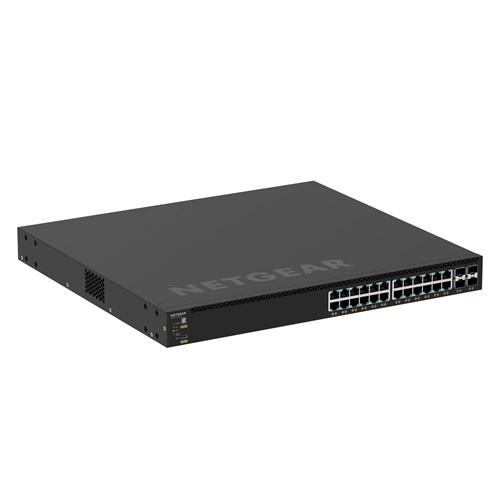

NETGEAR M4350-24G4XF 28-Port Layer 3 Stackable Fully Managed Switch with 24 x 1G POE+ & 4 x 10GBASE-X SFP+

Product Code: NGR GSM4328-100AJS

Key Features
  • 24 Gigabit PoE+ ports with 4 10GBASE-X SFP+ uplinks
  • 880W internal power supply providing 648W of PoE budget
  • 1 slot for modular power supply (1+1 redundancy and/or EPS share)
  • Any APS350Wv1, APS600Wv2, APS920Wv1, or APS2000Wv1 can be used
  • The PoE budget can reach 720W, when the redundant PoE budget remains 648W
  • Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover
  • Layer 3 feature set includes static, policy-based, and dynamic routing
  • NETGEAR IGMP Plus™, AV User Interface, and Engage Controller speed up AV installations
  • NETGEAR ProSAFE® Limited Lifetime Hardware Warranty
$5,499.00 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time 4-6 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

NETGEAR M4350-24G4XF 28-Port Layer 3 Stackable Fully Managed Switch with 24 x 1G POE+ & 4 x 10GBASE-X SFP+

POWER AND THROUGHPUT - Edge to core stackable platform, from 1 Gigabit to 100 Gigabit, all within 15.75in (40cm) of depth.

Groundbreaking AV GUI - A simplified user interface makes it easy to assign configuration profiles to each port.

Multicast in an Instant - NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.

Sleek, Quiet Design - Less fan noise, and mounting ears included for rack mounting.

Automatic Configuration - Auto-trunk and auto-LAG functionality auto connects with other M4350 (and M4250) switches.

FAST, EASY CONFIGURATION FOR AV PROS - A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.

FOCUS ON THE EVENT, NOT FAN NOISE - Most models have quiet mode which greatly reduces fan noise.

DESIGNED FOR AV OVER IP RIGHT OUT OF THE BOX - With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.

MAXIMIZE PERFORMANCE WITH PRO WIFI ACCESS POINTS - Enable powerful, reliable WiFi at your location with Pro WiFi access points, powered by PoE or an external power adapter.

What's In The Box:

  • 1 x M4350-24G4XF (GSM4328)
  • 1 x Power cord(s)
  • 1 x Console USB Type-C
  • 1 x Rack-mounting standard bracket set
  • 1 x Set of longer brackets for recessed mounting
  • 4 x Rubber footpads for tabletop installation
  • Installation guide
Warranty

We offer a Limited Lifetime warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Width

440mm

Depth

400mm

Height

43.2mm

Weight

6.41kg (14.13lb)

Primary Port Speed

1 Gigabit

Number of Ports

24 x 1G PoE+, 4 x 10G SFP+

PoE Ports / Budget

24 PoE+ (30W/port), 648W Base, up to 720W Budget

IGMP Support

Enhanced (NETGEAR IGMP Plus™)

Jumbo Frame Support

Yes, up to 12kb

AVB Support

Yes, included

Acoustics

Quiet Mode 33dB@25ºC

Power Consumption

With PoE: 792.1W/2701.06Btu/hr

  Without PoE: 80W/251.2Btu/hr
  Standby without any port connection: 32W/100.48Btu/hr

PSU Compatible Models

APS350Wv1

  APS600Wv2
  APS920Wv1
  APS2000Wv1
