  • Home
  • NETGEAR 10GBASE-LRM SFP+ Transceiver- MULTIMODE LC GBIC

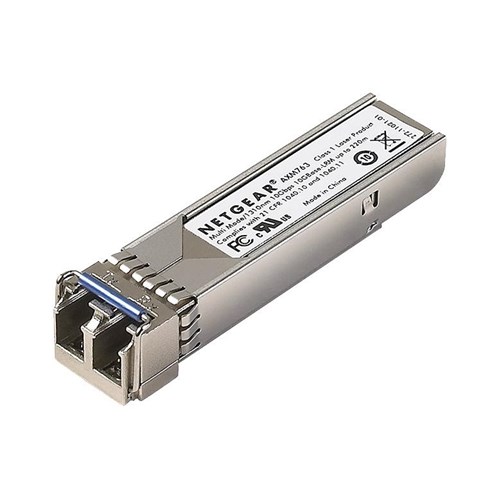

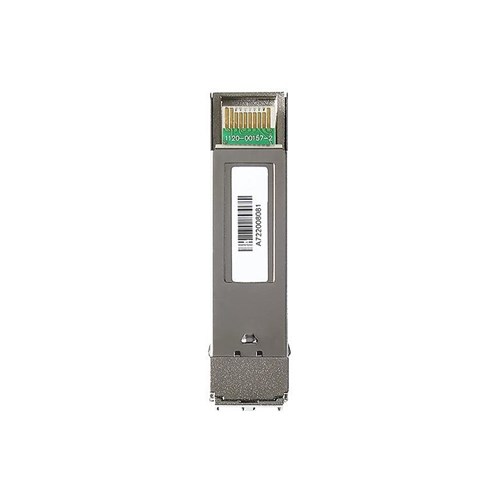

NETGEAR 10GBASE-LRM SFP+ Transceiver- MULTIMODE LC GBIC

Product Code: NGR AXM763-10000S

Key Features
  • 10 Gigabit Ethernet “short range” fiber connectivity
  • Fits into SFP+ interfaces of M4300, M5300, M7100 and M7300 series Managed Switches
  • Fits into SFP+ interfaces of select Smart and Plus Switches
  • Drives 10 Gigabit Ethernet up to 220 m (722 ft) distances with 62.5/125µm OM1/OM2 multimode fiber cables
  • Drives 10 Gigabit Ethernet up to 260 m (853 ft) distances with 50/125µm OM3/OM4 multimode fiber cables
  • LC duplex connector
$1,199.00 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time 4-6 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

NETGEAR 10GBASE-LRM SFP+ Transceiver- MULTIMODE LC GBIC

NETGEAR ProSafe 10 Gigabit SFP+ transceivers fit into M4300, M5300, M7100 and M7300 series standard SFP+ interfaces, providing hot-swappable installation and removal. Select Smart switches and Plus switches will also connect 10 Gigabit SFP+ transceivers.

The 10G Base-LRM SFP+ module provides a full-duplex 10G bps each direction for Ethernet operation on NETGEAR managed switches. The switch will automatically detect the AXM763, so you can simply plug it into an available module slot.

Warranty

We offer a 5 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Standards IEEE 802.3ae 10GBase-LRM
Wavelength 1310nm
Weight
Dimensions (H x W x D) 0.46” x 0.53” x 2.19” (11.9 mm x 13.7 mm x 55.7 mm)
Operating temperature 23 -158º F (-5 - 70ºC)
Operating relative humidity 85% @ (25ºC)
Storage temperature -40 -185 ºF (-40 - 85ºC)
Operating Distance Up to 220m for the following multi-mode optical fiber (MMF):
62.5/125µm (OM1) multi-mode fiber,
50/125µm (OM2) multi-mode fiber,
50/125µm (OM3) multi-mode fiber ‘laser optimized’
Connectors LC
Power Consumption <1.5w
MTBF 966,837 hr(110 years)
Safety Certification UL 1950 CSA 22.2 No. 950
Environmental Compliance RoHS
