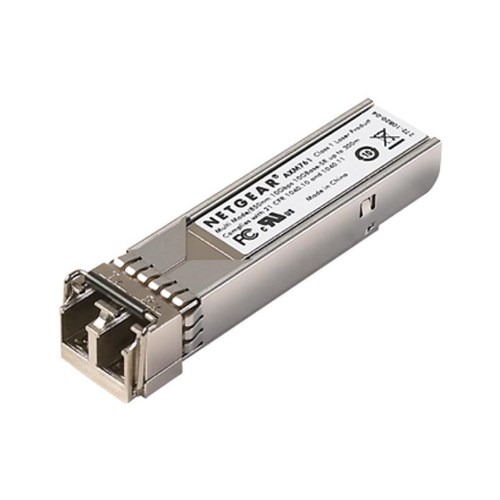

NETGEAR 10GBASE-SR SFP+ Transceiver - Multimode LC GBIC - 10 Pack

Product Code: NGR AXM761P10-10000S

Key Features
  • 10 Gigabit Ethernet “short range” fiber connectivity
  • LC duplex connector
  • Fits into SFP+ interfaces of select Managed Switches
  • Fits into SFP+ interfaces of select Smart and Plus Switches
  • Drives 10 Gigabit Ethernet up to 550 m (1,804 ft) distances with 50/125µm OM4 multimode fiber cables
  • Drives 10 Gigabit Ethernet up to 300 m (984 ft) distances with 50/125µm OM3 multimode fiber cables
  • Drives 10 Gigabit Ethernet up to 33 m (108 ft) distances with 62.5/125µm OM1/OM2 multimode fiber cables
$3,499.00 inc GST
(PCK)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

NETGEAR 10GBASE-SR SFP+ Transceiver - Multimode LC GBIC - 10 Pack

SFP+ Transceiver, 10GBase-SR for multimode 50/125µm OM3 or OM4 fiber

The 10 Gigabit small form-factor pluggable (SFP+) module provides a full-duplex 10G bps each direction for Ethernet operation on NETGEAR managed switches.

The switch will automatically detect the AXM761, so you can simply plug it into an available module slot.

The module can be inserted or removed while the switch is operational

Warranty

We offer a 5 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Standards IEEE 802.3ae 10GBase-SR
Wavelength 850nm
Dimensions (HxWxD) 0.46” x 0.53” x 2.19”
(11.9 mm x 13.7 mm x 55.7 mm)
Weight 17.1g
Operating Temperature 32 -158º F (0 - 70ºC)
Storage Temperature 32 -185 ºF (0 - 85ºC)
Operative relative humidity 85% @ (25ºC)
Operating Distance 2 - 300 m for 50/125 um MMF
2 - 33 m for 62.5/125 um MMF
Connectors LC
Power Consumption <1.0w
MTBF 4,986,536 hr (569 years)
Safety Certification UL 1950 CSA 22.2 No. 950
Environmental Compliance -RoHS
