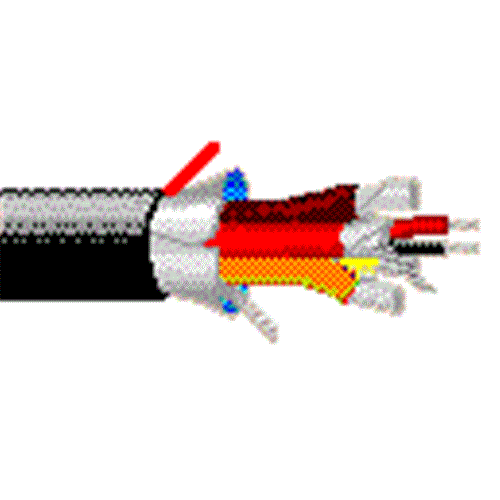

Name: Belden Analog Audio Cable - Flexible CM Rated Individual Foil Screened and Jacketed 8 Pair 24 AWG Black - 305m Reel
Price: 14.4286 AUD

Product Code: 1512C B591000

(M)

Qty	Each (inc GST)	Each

Features
Overview
Technical Specs
Documents

Physical Characteristics (Overall)
# Pairs	12
AWG	24
Stranding	7x32
Conductor Material	TC - Tinned Copper
Dia. (mm)	0.6096
Total Number of Conductors:	24
Insulation Material	PO - Polyolefin
Dia. (mm)	1.016
Inner Shield Trade Name	Beldfoil
Type	Tape
Inner Shield Material	Aluminum Foil-Polyester Tape
Coverage (%)	100
Inner Shield Drain Wire Stranding:	7x32
Inner Shield Drain Wire Conductor Material:	TC - Tinned Copper
Inner Jacket Material	PVC - Polyvinyl Chloride
Nom. Dia. (mm)	2.819
Number	1
Color	Brown
Outer Shield Trade Name	Beldfoil
Outer Shield Material	Aluminum Foil-Polyester Tape
AWG	18
Stranding	7x26
Drain Wire Conductor Material	TC - Tinned Copper
Outer Jacket Material	PVC - Polyvinyl Chloride
Outer Jacket Ripcord:	Yes
Overall Nominal Diametre:	14.249 mm
Color	Red & Black
Mechanical Characteristics (Overall)
Operating Temperature Range:	-35°C To +75°C
Bulk Cable Weight:	241.088 Kg/Km
Max. Recommended Pulling Tension:	980.383 N
Min. Bend Radius/Minor Axis:	146.050 mm
Applicable Specifications and Agency Compliance (Overall)
NEC/(UL) Specification:	CM
CEC/C(UL) Specification:	CM
EU Directive 2011/65/EU (ROHS II):	Yes
EU CE Mark:	Yes
EU Directive 2000/53/EC (ELV):	Yes
EU Directive 2002/95/EC (RoHS):	Yes
EU RoHS Compliance Date (mm/dd/yyyy):	01/01/2004
EU Directive 2002/96/EC (WEEE):	Yes
EU Directive 2003/11/EC (BFR):	Yes
CA Prop 65 (CJ for Wire & Cable):	Yes
MII Order #39 (China RoHS):	Yes
Plenum (Y/N):	No
Electrical Characteristics (Overall)
Ind. Pair Nominal Shield DC Resistance @ 20 Deg. C:	52.168 Ohm/km
Notes (Overall)
Notes:	Jacket and shield are bonded so both can be removed with automatic stripping equipment. Beldfoil® provides high reliability with ease of termination.
