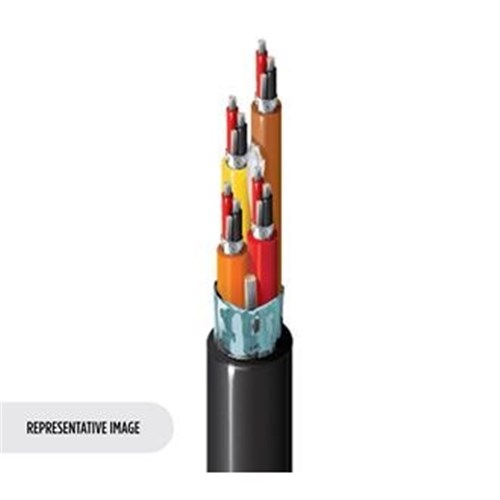

Belden Analog Audio Cable - Flexible CM Rated Individual Foil Screened and Jacketed 16 Pair 24 AWG Black - 305m Reel

Product Code: 1514C B591000

Key Features
24 AWG stranded (7x32) TC conductor, polyolefin insulation, individually shielded Beldfoil® (100% coverage) numbered/color-coded PVC jackets, jackets and shields bonded to strip simultaneously, overall Beldfoil shield and 24 AWG TC drain wire.
$31.35 inc GST
(M)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents
24 AWG stranded (7x32) TC conductor, polyolefin insulation, individually shielded Beldfoil® (100% coverage) numbered/color-coded PVC jackets, jackets and shields bonded to strip simultaneously, overall Beldfoil shield and 24 AWG TC drain wire.

Please call Madison for Project Quotations on Belden Products, or for pricing on any unlisted Belden products

Warranty

We offer a 10 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
Physical Characteristics (Overall)
# Pairs20
AWG24
Stranding7x32
Conductor MaterialTC - Tinned Copper
Dia. (mm)0.6096
Total Number of Conductors:40
Insulation MaterialPO - Polyolefin
Wall Thickness (mm)0.2032
Dia. (mm)1.016
Inner Shield Trade NameBeldfoil
TypeTape
Inner Shield MaterialAluminum Foil-Polyester Tape
Coverage (%)100
Inner Shield Drain Wire Stranding:7x32
Inner Shield Drain Wire Conductor Material:TC - Tinned Copper
Inner Jacket MaterialPVC - Polyvinyl Chloride
Nom Wall (mm)0.3556
Nom. Dia. (mm)2.8194
Number1
ColorBrown
Outer Shield Trade NameBeldfoil
Outer Shield MaterialAluminum Foil-Polyester Tape
AWG18
Stranding7x26
Drain Wire Conductor MaterialTC - Tinned Copper
Outer Jacket MaterialPVC - Polyvinyl Chloride
Nom. Wall Thickness (mm)1.397
Outer Jacket Ripcord:Yes
Overall Nominal Diametre:18.034 mm
ColorRed and Black
Mechanical Characteristics (Overall)
Operating Temperature Range:-35°C To +75°C
Bulk Cable Weight:392.885 Kg/Km
Max. Recommended Pulling Tension:1567.546 N
Min. Bend Radius/Minor Axis:184.150 mm
Applicable Specifications and Agency Compliance (Overall)
NEC/(UL) Specification:CM
CEC/C(UL) Specification:CM
EU Directive 2011/65/EU (ROHS II):Yes
EU CE Mark:Yes
EU Directive 2000/53/EC (ELV):Yes
EU Directive 2002/95/EC (RoHS):Yes
EU RoHS Compliance Date (mm/dd/yyyy):01/01/2004
EU Directive 2002/96/EC (WEEE):Yes
EU Directive 2003/11/EC (BFR):Yes
CA Prop 65 (CJ for Wire & Cable):Yes
MII Order #39 (China RoHS):Yes
Plenum (Y/N):No
Electrical Characteristics (Overall)
Ind. Pair Nominal Shield DC Resistance @ 20 Deg. C:52.168 Ohm/km
