AMX MET-6NE-WH - Metreau 6-Button Ethernet Keypad with Navigation White

Product Code: AMX FG5793-01-WH

Key Features
Metreau 6-Button Ethernet Keypad with Navigation, Install in Decora-style wallplates, White
Enquire Now
Qty Each (inc GST) Each
Estimated Lead time 2-4 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

The MET-6NE Metreau 6-Button Ethernet Keypad with Navigation features source control, a navigation wheel that adjusts levels and provides up, down, left, right and select button options, as well as an LED bar for visual level feedback. The MET-6NE can be used as an individual keypad or in conjunction with the 7 or 13-Button Metreau Ethernet Expansion Keypads. The Keypad connects to the controller via Ethernet, which simplifies installation and connectivity.

Ideal for cost effective control for classrooms, conference rooms, kitchens, bathrooms, and other applications requiring simplified control up to 6 devices.

Features

  • Connects via Standard Protocols (Ethernet) Simplifies cabling and installation by minimizing cable runs
  • Daisy Chain up to Three Keypads Provides the ability to connect up to three keypads using one IP address
  • Fits in Decor Style Wall Plates Simplifies installation and looks great
  • Blue LEDs Glow to Indicate Button Selection Improves usability by confirming the user's choice
  • Unrivaled Simplicity Includes navigation wheel for simplified control



NOTE: Keypad wallplates not included. See ALD-CW-1, ALD-CW-2, ALD-CW-3.

Harman Professional University certifications required to purchase this product. Please contact your Account Manager to learn more.

Warranty

We offer a 3 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Dimensions (HWD) Keypad and Mounting Plate: 4" x 1 3/4" x 1" (10.3 cm x 4.5 cm x 2.5 cm)
Mounting Mounts into standard decor-style wallplates

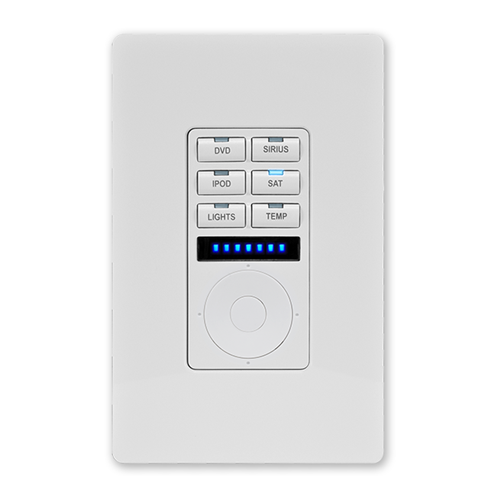

Front Panel Components Pushbuttons available in a variety of field replaceable pre-printed buttons with blue LED indicators, Navigation wheel, Light-level feedback, Sensor

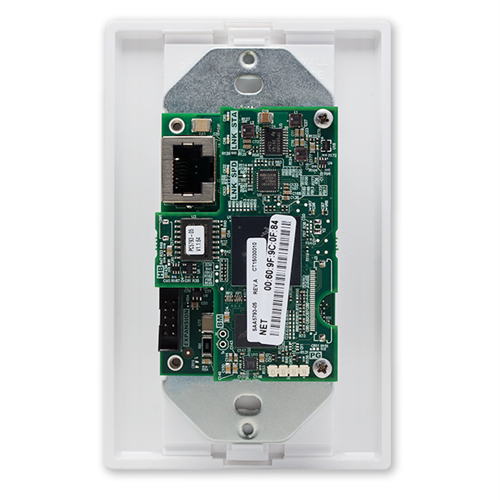

Rear Panel Components (1) RJ-45 Ethernet Connector, 10/100, (2) 8-pin, 0.100 (2.54 mm) IDC-type male header
Power PoE (Power over Ethernet), 802.3af, class 0 , Power Connector: (1) RJ-45 Ethernet Connector, 10/100
FG Numbers

FG5793-01-WH (White)
FG5793-01-BL (Black)
