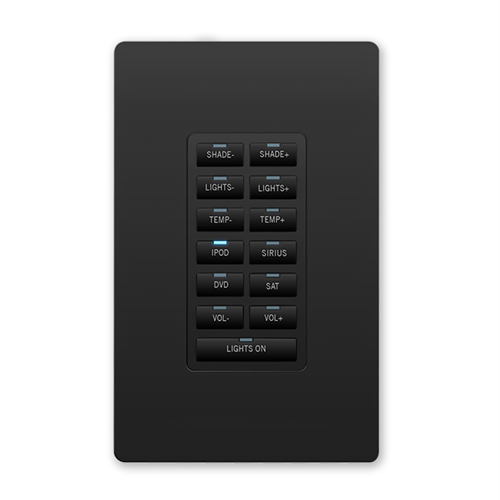

AMX MET-13E-BL - Metreau 13-Button Ethernet Keypad Black

Product Code: AMX FG5793-02-BL

Key Features
Metreau 13-Button Ethernet Keypad, Install in Decora-style wallplates, Black
Enquire Now
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

The MET-13E Metreau 13-Button Ethernet Keypad offers 13 buttons (12 single-width and 1 double-width) and can be used as in individual keypad or in conjunction with the 7 and 13-button Metreau Ethernet Expansion Keypads. The Keypad connects to the controller via Ethernet, which simplifies installation and connectivity.

Ideal for cost effective control for classrooms, conference rooms, kitchens, bathrooms, and other applications requiring simplified control of a variety of connected system devices.

Features

  • Connects via Standard Protocols (Ethernet) Simplifies cabling and installation by minimizing cable runs
  • Daisy Chain up to Three Keypads Provides the ability to connect up to three keypads using one IP address
  • Fits in Decor Style Wall Plates Simplifies installation and looks great
  • Blue LEDs Glow to Indicate Button Selection Improves usability by confirming the user's selection
  • Bottom Button Can Act as Single or Two Buttons Provides added flexibility to the configuration



NOTE: Keypad wallplates not included. See ALD-CW-1, ALD-CW-2, ALD-CW-3.

Harman Professional University certifications required to purchase this product. Please contact your Account Manager to learn more.

Warranty

We offer a 3 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Dimensions (HWD) Keypad and Mounting Plate: 4" x 1 3/4" x 1" (10.3 cm x 4.5 cm x 2.5 cm)
Mounting Mounts into standard decor-style wallplates
Front Panel Components Pushbuttons available in a variety of field replaceable pre-printed buttons with blue LED indicators
Rear Panel Components (1) RJ-45 Ethernet Connector, 10/100, (2) 8-pin, 0.100 (2.54 mm) IDC-type male header
Power PoE (Power over Ethernet), 802.3af, class 0 , Power Connector: (1) RJ-45 Ethernet Connector, 10/100
FG Numbers

FG5793-02-WH (White)
FG5793-02-BL (Black)
