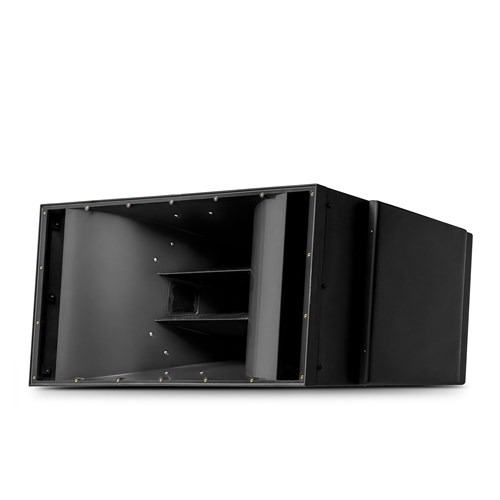

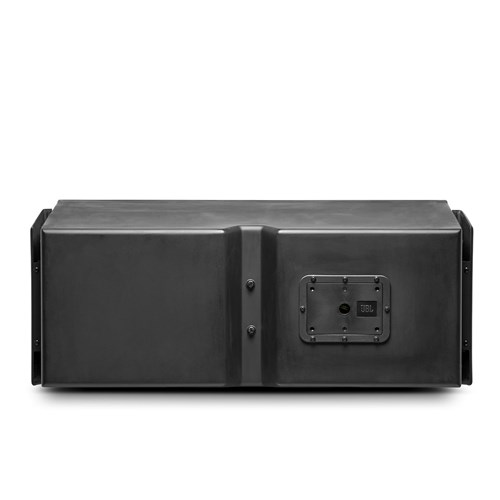

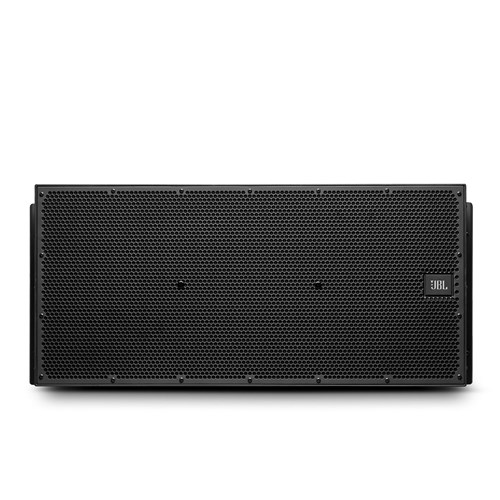

JBL VLA-C265 - Two-Way Full Range Loudspeaker with 2 x 10 Inch Differential Drive LF Black

Product Code: JBL VLA-C265-BK

Key Features
Two-Way Full Range Loudspeaker with 2 x 10" Differential Drive LF, 65° horizontal coverage pattern, Black
$17,541.61 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time Contact Us
  • Features
  • Overview
  • Technical Specs
  • Documents

Two-Way Full Range Loudspeaker with 2 x 10" Differential Drive® LF

The VLA-C265 uses JBL proven technology components. The high frequency section is horn-loaded for maximum sensitivity and optimum pattern control and features three D2415 drivers featuring 1.5” diameter annular diaphragms, 1.5” voice coils, and neodymium motors.

The low-frequency section utilizes dual 2261 10” Differential Drive® 3” voice coil drivers.

Enclosures feature multi-layer reinforced fiberglass and steel end-panels. Grilles are zinc plated, powder coated 14-gauge perforated steel with an acoustically transparent black grill cloth backing, a hydrophobic mesh underlayer, and a waterproof rail system.

The rigging system is inherent to the design of the system. Inter-box angles are selected when the array is assembled. Other accessories include a rigging frame, pull-back bar, and a cardioid kit for the sub.

Features

  • Compact line array module optimized for permanent install applications
  • Advanced technology component transducers for low weight and high output
  • Outdoor IP55 rated enclosure for protection from dust and water
  • Comprehensive rigging points for creating a line array configuration
  • Fiberglass box construction and weatherized components
  • Can be bi-amplified for maximum SPL, or fed passively for reduced amplification costs
  • 65° horizontal coverage pattern
Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
Frequency Range (-10 dB) 85 Hz - 19 kHz
Frequency Response ( 3 dB) 108 Hz 16.5 kHz
Full Range 800 W Continuous Pink Noise (3200 W peak), 2 hrs 400 W Continuous Pink Noise (1600W peak), 100 hrs
Bi-amp LF 800 W Continuous Pink Noise (3200 W peak), 2 hrs 400 W Continuous Pink Noise (1600W peak), 100 hrs
Bi-amp HF 150 W Continuous Pink Noise (600 W peak), 2 hrs 50 W Continuous Pink Noise (200 W peak), 100 hrs
Full-Range 80 V Rms (2 hrs), 160 V peak
Maximum SPL (1m) 131 dB Cont. Ave (2 hrs), 137 dB Peak
Coverage Pattern (-6 dB) Horizontal: 65 (+15/-10, 1.5 kHz to 15 kHz) Vertical: Varies with array size and configuration
Amplifiers Crown DCi Family with DSP on-boardRecommended:Crown DCi 2 | 1250NCrown DCi 4 | 1250N/ND/DACrown DCi 2 | 2400NCrown DCi 4 | 2400N
Low Frequency Driver 2 x 2261FF, 254 mm (10 in) diameter, each with two 76 mm (3 in) diameter voice coils, Neodymium Differential Drive , Direct Cooled
High Frequency Driver 3 x 2415K, D2 Dual Diaphragm Dual Voice Coil Compression Drivers, each with two 38 mm (1.5 in) dia. Voice Coils; 21 mm (0.8 in) exit
Enclosure Material Fiberglass shell, gelcoat finish, with 18 mm Birch plywood internal bracing.
Grille Powder coated 14 gauge hex-perforated steel with zinc under-coating, backed with acoustically transparent cloth and hydrophobic screen.
Inter-Enclosure Angles VLA-C265 to VLA-C265: 1.5, 2.4 3.8, 6.0, 9.5 using VLA-C265 Bracket Plate (included with VLA-C265)VLA-C265 to VLA-C2100 (either model on top/bottom): 1.9, 3.0 using VLA-C2100 Bracket Plate (included with VLA-C2100) and 4.7, 7.5, 11.9 using VLA-C265 Bracket Plate (included with VLA-C265)VLA-C265 below VLA-C125S Subwoofer (VLA-C265 cannot be connected above C125S): 0, 5 using VLA-C125S Bracket Plate (included with VLA-C125S)
Environmental IP-55 rating per IEC529 (dust protected and protected against jets of water).
Terminals CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9mm (0.375 in) spade lugs. Touch-proof covers.
Colors -GR: Gray (similar to Pantone 428C), -BK: Black
Dimensions (H x W x D) 381 x 848 x 460 mm (15.0 x 33.4 x 18.1 in)
Net Weight (ea) 37.7 kg (83 lbs)
Shipping Weight (ea) 44.0 kg (97 lbs)
Included Accessories 2 pcs. VLA-C265 Bracket Plates8 pcs. M10 x 35 mm stainless steel bolts (1.5mm pitch, 6 mm hex-drive) for attaching Bracket Plates2 pcs. Plastic Trim Cover Panels for Bracket Plates, each attaches via4 pcs (8 total) 3-32 x trusshead, phillips-drive, stainless steel bolts.
Optional Accessories VLA-C-SB Suspension Bar Kit for the array, includes 2 identical Suspension Bars (for top/bottom), 4 pcs -inch Class 2 Screw Pin Shackles (must use 2 Shackles for each Suspension Bar, located at end channels, not in the center).
