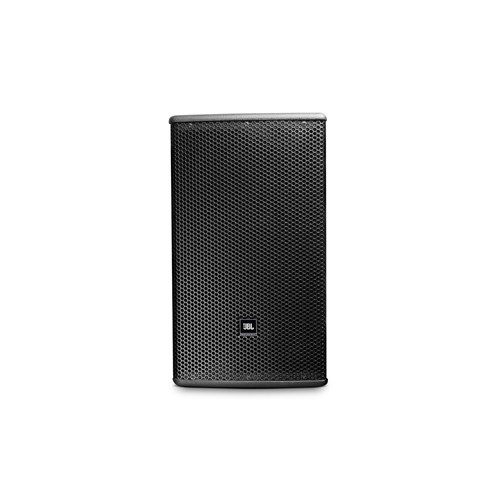

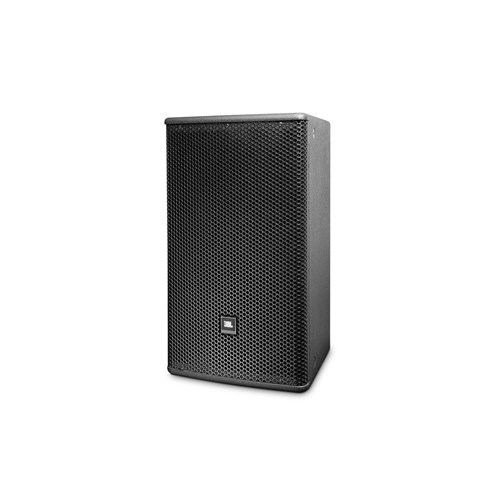

JBL AC195 - Two-Way Full-Range Loudspeaker with 1 x 10 Inch LF Black

Product Code: JBL AC195-BK

Key Features
10" 2-way full-range system, rotatable 90? x 50? waveguide coverage pattern with 2408H-2 25mm (1 in) exit, 38mm (1.5 in) voice coil.Priced as each.
$2,641.95 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

Two-Way Full-Range Loudspeaker with 1 x 10" LF

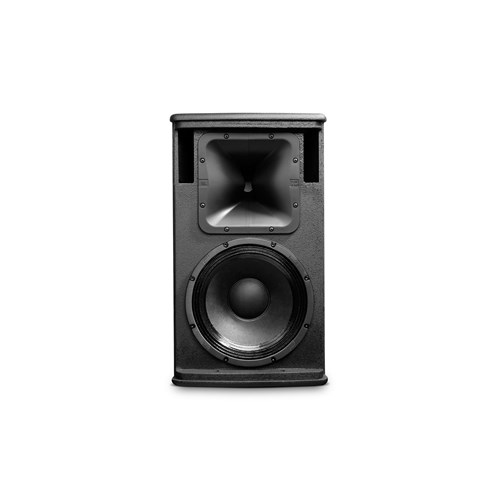

AC195 is a compact 2-way full-range loudspeaker system comprised of one 258 mm (10 in) low frequency driver and one 25 mm (1 in) exit/35 mm (1.5 in) voice-coil compression driver. The rotatable PT™ Progressive Transition waveguide provides 90° by 50° coverage in vertical cabinet orientation. Highslope passive crossovers minimize band overlap and well-controlled offaxis response.

The cabinet is fitted with M10 threaded suspension points. Four threaded inserts located on back of the enclosure allow attachment of a MultiMount® or similar type mounting.

AC195 is part of JBL’s AE Application Engineered Series, a versatil e family of loudspeakers for a wide variety of fixed installation applications

Features

  • Compact enclosure
  • 258 mm (10 in) LF transducer
  • 90° x 50° Progressive Transition™ Field Rotatable Waveguide with a 25 mm (1 in) exit 35mm (1.5") voice-coil compression driver
  • Dual Neutrik NL4 connectors plus screw terminals
  • Multiple attachment points for ultimate flexibility

Applications

  • Performing Spaces
  • Clubs & Bars
  • Houses of Worship
  • Multi Media Spaces
  • Retail & Hospitality Spaces
  • Presentation Suites
  • Educational Facilities
Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Frequency Range (-10 dB) 68 Hz - 20 kHz
Frequency Response (±3 dB) 85 Hz - 18kHz
System Sensitivity (1w @ 1m) 95 dB
Nominal Impedance 8 ohms
Maximum SPL(1m) 118 dB (124 dB peak)
Power Rating (Continuous/Program/Peak) 200 W/400 W/800 W
Coverage Pattern 90° x 50° (H x V)
Crossover 1.8 kHz
Low Frequency Driver 1 x 10" woofer (P/N: 5050692), 258 mm (10 in) driver with 66 mm (2.5 in) voice-coil
High Frequency Driver 1 x 2408H-2 driver with 25 mm (1 in) exit/38 mm (1.5 in) voice-coil
Input Connector Dual Neutrik NL4MP connectors plus covered barrier trip terminals
Enclosure 15 mm multi-ply hardwood plywood
Grille Powder coated, 1.5mm perforated steel, with acoustically transparent black foam backing
Finish Textured black paint finish. White (-WH) available upon request. Not available with WRC & WRX finish.
Suspension / Mounting 14 x M10 and 4 x M10 for Wall Mount Bracket. Optional U-bracket, L-bracket and wall-mount bracket
Dimensions (H x W x D) 535 mm x 310 mm x 329 mm 21.0 in x 12.2 in x 12.9 in
Net Weight 13.1 kg (28.8 lbs)
