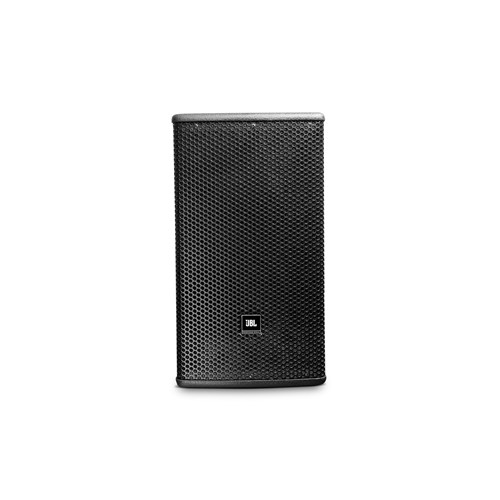

JBL AC895 - Two-Way Full-Range Loudspeaker with 1 x 8 Inch LF Black

Product Code: JBL AC895-BK

Key Features
8" 2-way full-range system, rotatable 90° x 50° waveguide coverage pattern with 2414H-C 25mm (1 in) exit, 25mm (1 in) voice coil. Priced as each.
$2,110.79 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

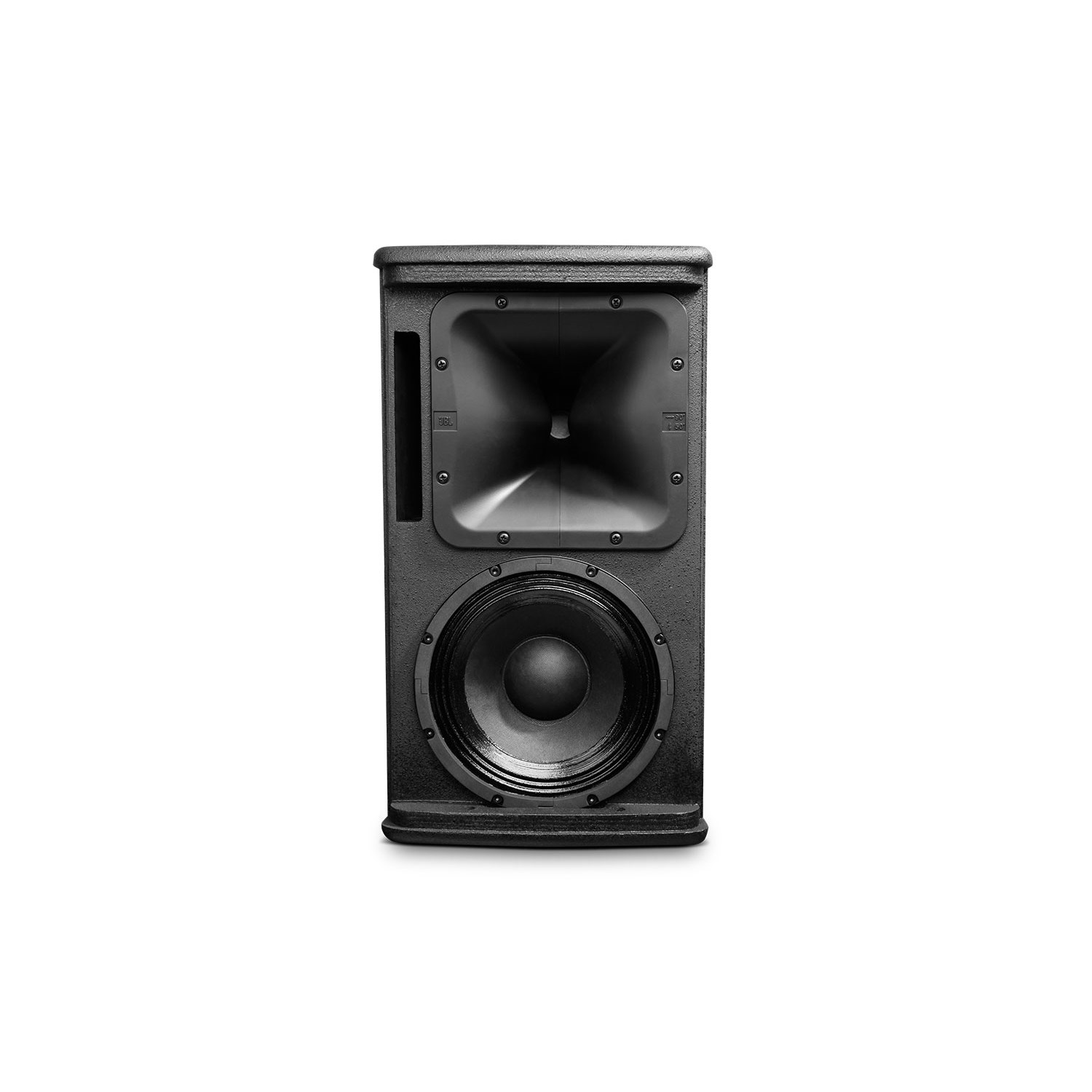

Two-Way Full-Range Loudspeaker with 1 x 8" LF

AC895 is a compact 2-way full-range loudspeaker system comprised of one 209 mm (8 in) low frequency driver and one 25 mm (1 in) exit/25 mm (1 in) voice-coil compression driver. The rotatable PT™ Progressive Transition waveguide provides 90° by 50° coverage in vertical cabinet orientation. Highslope passive crossovers minimize band overlap and well-controlled offaxis response. The cabinet is fitted with M10 threaded suspension points. Four threaded inserts located on back of the enclosure allow attachment of an MultiMount® or similar type mounting. AC895 is part of JBL's AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications

Features

  • Compact enclosure
  • 209 mm (8 in) LF transducer
  • 90° x 50° Progressive Transition™ Field Rotatable Waveguide with a 25 mm (1 in) exit 25mm (1") diaphragm compression driver
  • Dual Neutrik NL4 connectors plus screw terminals
  • Multiple Attachment Points for Ultimate Flexibility

    • Applications

  • Performing Spaces
  • Clubs & Bars
  • Houses of Worship
  • Multi Media Spaces
  • Retail & Hospitality Spaces
  • Presentation Suites
  • Educational Facilities
    • Warranty

    We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

    Frequency Range (-10 dB) 70 Hz - 20 kHz
    Frequency Response ( 3 dB) 90 Hz - 18 kHz
    System Sensitivity (1w @ 1m) 94 dB
    Nominal Impedance 8 ohms
    Maximum SPL (1m) 116 dB (122 dB peak)
    Power Rating (Continuous/Program/Peak) 150 W/ 300 W/ 600 W
    Coverage Pattern 90 x 50 (H x V)
    Crossover 2 kHz
    Low Frequency Driver 1 x 8" woofer (P/N: 5055470), 209 mm (8 in) driver with 50 mm (2 in) voice-coil
    High Frequency Driver 1 x 2414H-C driver with 25 mm (1 in) exit/25 mm (1 in) voice-coil
    Input Connector Dual Neutrik NL4MP connectors plus covered barrier trip terminals
    Enclosure 15 mm multi-ply hardwood plywood
    Grille Powder coated, 1.5mm perforated steel, with acoustically transparent black foam backing
    Finish Textured black paint finish. White (-WH) available upon request. Not available with WRC & WRX finish.
    Suspension / Mounting 14 x M10 and 4 x M10 for Wall Mount Bracket. Optional U-bracket, L-bracket and wall-mount bracket
    Dimensions (H x W x D) 470 mm x 265 mm x 254 mm 18.5 in x 10.4 in x 10.0 in
    Net Weight 10.2 kg (22.4 lbs)
