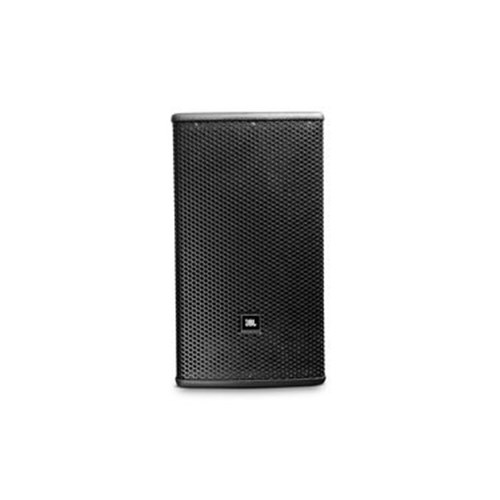

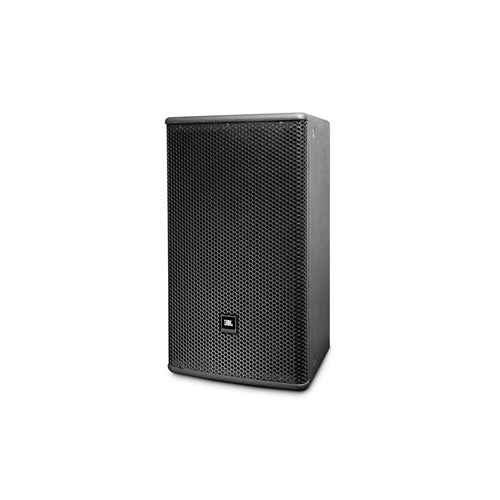

JBL AC895-WH Two-Way Full-Range Loudspeaker with 1 x 8 Inch LF White

Product Code: JBL AC895-WH

Key Features
JBL AC895-WH 8" 2-Way Full-Range System, White, 8"
$2,110.79 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

Two-Way Full-Range Loudspeaker with 1 x 8" LF

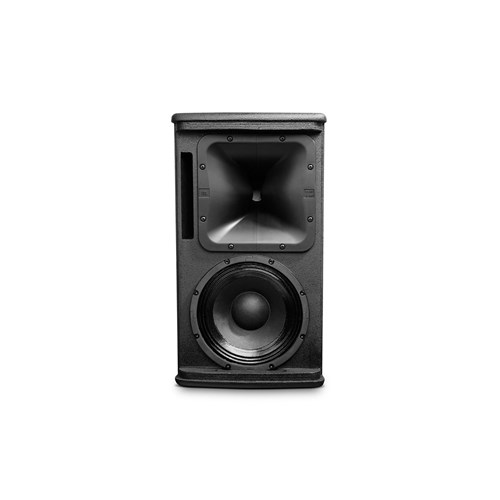

AC895 is a compact 2-way full-range loudspeaker system comprised of one 209 mm (8 in) low frequency driver and one 25 mm (1 in) exit/25 mm (1 in) voice-coil compression driver. The rotatable PT™ Progressive Transition waveguide provides 90° by 50° coverage in vertical cabinet orientation. Highslope passive crossovers minimize band overlap and well-controlled offaxis response. The cabinet is fitted with M10 threaded suspension points. Four threaded inserts located on back of the enclosure allow attachment of an MultiMount® or similar type mounting. AC895 is part of JBL's AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications

Features

  • Compact enclosure
  • 209 mm (8 in) LF transducer
  • 90° x 50° Progressive Transition™ Field Rotatable Waveguide with a 25 mm (1 in) exit 25mm (1") diaphragm compression driver
  • Dual Neutrik NL4 connectors plus screw terminals
  • Multiple Attachment Points for Ultimate Flexibility

Applications

  • Performing Spaces
  • Clubs & Bars
  • Houses of Worship
  • Multi Media Spaces
  • Retail & Hospitality Spaces
  • Presentation Suites
  • Educational Facilities
Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Frequency Range (-10dB) 70 Hz - 20 kHz
Frequency Response (±3 dB) 90 Hz - 18 kHz
System Sensitivity (1w @ 1m) 94 dB
Nominal Impedance 8 ohms
Maximum SPL (1m) 116 dB (122 dB peak)
System Power Rating 250W (1000W peak), 2 hrs (AES rated)
150 W/300 W/600 W (Continuous/Program/Peak) (IEC rated)
Coverage Pattern 90° x 50° (H x V)
Crossover 2 kHz
LF Driver 1 x 8" woofer (P/N: 5055470), 209 mm (8 in) driver with 50 mm (2 in) voice-coil
HF Driver 1 x 2414H-C driver with 25 mm (1 in) exit/25 mm (1 in) voice-coil
Input Connector Dual Neutrik NL4MP connectors plus covered barrier trip terminals
Enclosure 15 mm multi-ply hardwood plywood
Grille Powder coated, 1.5mm perforated steel, with acoustically transparent black foam backing
Finish Textured black paint finish. White (-WH) available upon request. Not available with WRC & WRX finish.
Suspension Attachment 14 x M10 and 4 x M10 for Wall Mount Bracket. Optional U-bracket, L-bracket and wall-mount bracket
Dimensions (H x W x D) 470 mm x 265 mm x 254 mm 18.5 in x 10.4 in x 10.0 in
Net Weight (each) 10.2 kg (22.4 lbs)
Crossover Modes Passive
Nominal LF Driver Impedance 8 ohms
Nominal HF Driver Impedance 8 ohms

Accessories

JBL 2290000901 Kit Sp/Vs Set Of Three M10 X 35Mm Forged Shoulder Steel Ey
JBL 2290000901 Kit Sp/Vs Set Of Three M10 X 35Mm Forged Shoulder Steel Ey JBL 229-00009-01
In Stock
$136.60 (EA)
Increase value Decrease value View Product
JBL MTU-895-WH - U-Bracket for AC895. White
JBL MTU-895-WH - U-Bracket for AC895. White JBL MTU-895-WH
In Stock
$296.62 (EA)
Increase value Decrease value View Product
