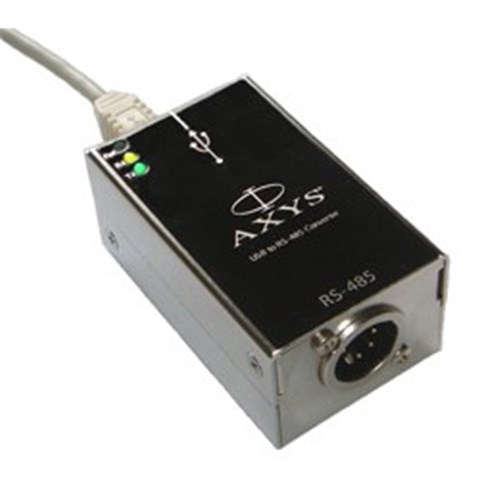

JBL DUR386612 - Universal Programming Set for AXYS and Intellivox - USB to RS485 Converter

Product Code: JBL DUR386612

Key Features
Universal Programming Set for AXYS and Intellivox
$1,852.59 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time Contact Us
  • Features
  • Overview
  • Technical Specs
  • Documents

JBL DUR386612 - Universal Programming Set for AXYS and Intellivox - USB to RS485 Converter

The JBL DUR386612 USB to RS485 Converter is a device that converts a USB signal to an RS-485 signal. This allows you to connect USB devices to RS-485 networks. The converter is compatible with a variety of JBL professional audio devices, including the AXYS and Intellivox series.

Contains:

  • USB to RS485 Converter
  • Usb-A to Usb-B Cable
  • AXYS RS485 Network Cable 5-pin XLR female socket to 5-pin XLR male plug (6 meters long)
  • AXYS Cable 5-pin female XLR socket to Wago 5-pin (0.5 meters long)
  • AXYS Cable 5-pin female XLR socket to Phoenix 5-pin (0.5 meters long)
Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
  • Connector: USB-A to DB9 Male
  • Baud Rate: 19.2 kbps to 115.2 kbps
  • Data Length: 64 to 192 bits
  • Stop Bits: 1 or 2

RS-485 connection table for use with USB to RS-485 adapter:

Client (Unit)

5p cage clamp

(WAGO) Intellivox

5p XLR

5p

Phoenix

RS-485 A (+ receive)

1

5

5

RS-485 B (- receive)

2

4

4

RS-485 Z (- send)

3

3

3

RS-485 Y (+ send)

4

2

2

DGND

5

1

1

Note that the device interface is a full-duplex (i.e. separate transmit and receive pairs) serial interface.



What cable to use with this item: The cable should be a type suitable for data transfer with two individually shielded twisted pairs.
