JBL Control 62P - Ultra-Compact Mid-High Satellite Pendant Speaker Black - Priced as Each Sold as Pair

Product Code: JBL CTRL62P-BK

Key Features
Ultra-Compact Mid-High Satellite Pendant Speaker. 2" driver, ideal for speech and mid-high music and for visually sensitive applications. Add up to 4 pics on a Control 50S/T (or 40 CS/T) subwoofer for full-range, 20W, 16 ohms, redundant suspension cable system included (priced as each; sold in pairs).
$369.38 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

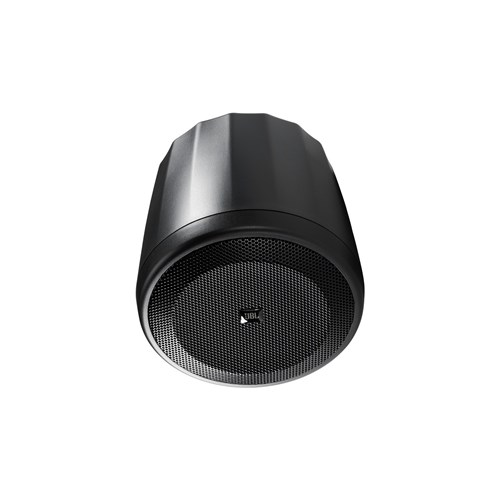

Ultra-Compact Mid-High Satellite Pendant Speaker

Ideal for visually sensitive applications, Control 62 P’s 2"" driver is great for speech and mid-high music applications (external high-pass required). For full-range, wide bandwidth performance, up to 4 pieces can be driven from a Control 50 S/T or 40 CS/T subwoofer.

Features

  • 2" (50 mm) driver
  • 20 Watts, 16 ohms
  • Can intermix with Control 52 surface-mount and Control 42C in-ceiling satellite speakers
  • Black or white

Important Order Information: The price displayed for this item is the price of a singe unit. However, this item is packaged and sold as a carton of 2 units. Please note, this item must be purchased in multiples of 2 units.

Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Frequency Response (-10 dB) 150 Hz 20 kHz
Frequency Range ( 3 dB) 200 Hz 17 kHz
Power Capacity 50 Watts Continuous Program Power (2 hrs) 25 Watts Continuous Pink Noise (2 hrs) 30 Watts Continuous Program Power (100 hrs)15 Watts Continuous Pink Noise (100 hrs)
Nominal Sensitivity 87 dB (4.0 V, 1 W)84 dB (2.83 V)
Nominal Coverage Angle 140 (+25/-50)
Directivity (Q) 4.7
Directivity Index (DI) 6.2 dB
Rated Maximum SPL @ 1m 97 dB continuous pink noise, 103 dB peak
Rated Impedance 16 ohms (no transformer taps)
Recommended High-Pass Frequency 150 Hz

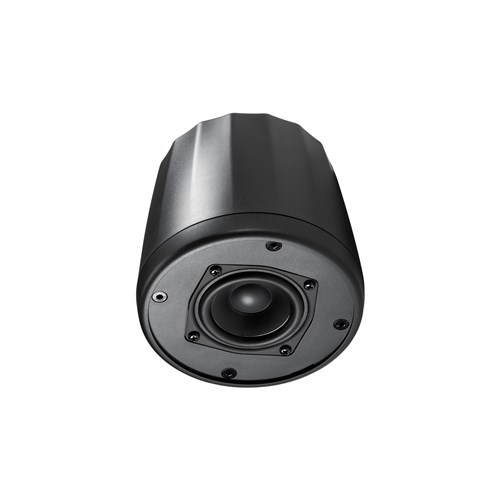

Transducer: Driver 60 mm (2.5 in), polypropylene-coated paper with pure butyl rubber surround, 20 mm ( in) copper clad aluminum voice coil with vented Nomex coil-former.
Enclosure Material High impact polystyrene
Grille Zinc-plated steel grille with powder-coat finish, foam backing (removable for painting)
Environmental Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IP44 capability per IEC 529 splashproof rating.

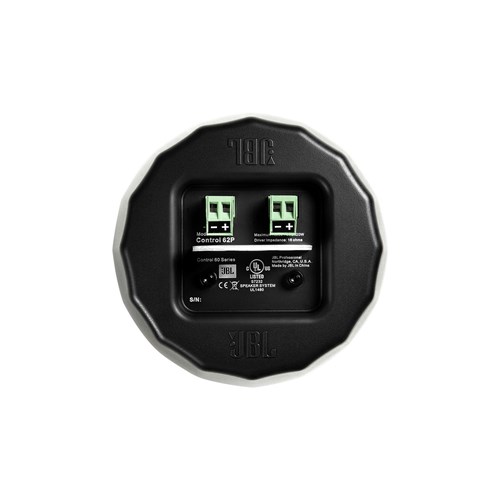

Termination Two removable locking euro-block 2-pin connectors with screwdown terminals for bare wire. Connectors paralleled for input and loop-thru. Max. wire 12 AWG (2.5 mm2). Rubber terminal covers included.
Suspension Two identical suspension systems (one as main suspension cable and the other as safety cable), each consisting of 4.5 m (15 ft) long 2 mm (0.077 in) high-tensile galvanized-steel wire rope suspension cable with spring-clips for clipping onto the loudspeaker bracket and Gripple brand adjustable-height cable fasteners for infinitely adjustable height. Cables have SWL rating of 45 kg (99 lb).
Safety Agency Ratings Speaker listed per UL1480, transformer registered per UL1876. In accordance with IEC60849/EN60849. Suspension system and Gripple-brand cable fastener listed per UL1598 and UL2239, TUV, and CSA Class 3426-01 & Class 3426-81.
Dimensions 128 mm (5.1 in) diameter x 121 mm (4.8 in) height to top of cabinet. 141 mm (5.6 in) to top of suspension bracket.
Net Weight (ea) 0.7 kg (1.5 lbs)
Shipping Weight (pair) 2.0 kg (4.3 lbs)
Included Accessories Two suspension cable systems (see Suspension", above), two 2-pin removable locking euro-block connectors, two rubber covers for euro-block connectors.
Optional Accessories MTC-PC62 top panel / terminal cover
Colors Available in black or white (-WH). Paintable.
