  • JBL Control 68HP High-Power Pendant Loudspeaker - Black - Priced as Each Sold as Pair

JBL Control 68HP High-Power Pendant Loudspeaker - Black - Priced as Each Sold as Pair

Product Code: JBL CTRL68HP-BK

Key Features
  • Coaxial design featuring: 200 mm (8 in) Kevlar™ reinforced woofer with 50 mm (2 in) voice coil, 25 mm (1.0 in) titanium-dome compression driver
  • High power capability of 250 Watts (1000W peak) and high SPL of 114 dB (120 dB peak)
  • Hanging hardware with 4.5 m (15 foot) galvanized steel cable and easy to adjust clamp
  • Stylish design available in black or white
  • UL listed speaker and hanging cable system
  • 8 ohm and 70V/100V operation
  • Extremely consistent constant-directivity 110° conical coverage
$1,470.10 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

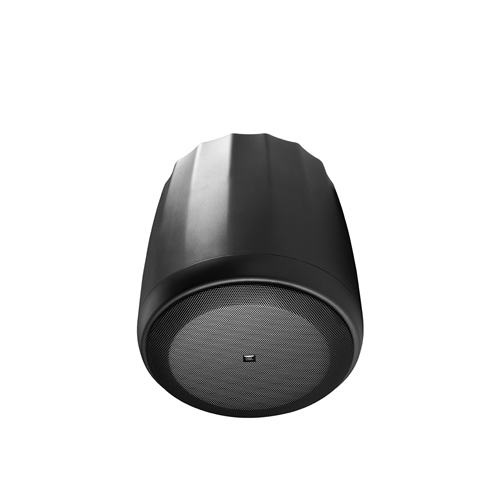

JBL Control 68HP High-Power Pendant Loudspeaker - Black

The JBL Control 68HP full-range two-way pendant loudspeaker provides high output, high power handling, superior clarity and consistent coverage in rooms with open-architecture ceilings, live spaces and other locations where a pendant loudspeaker is desired. Common applications include retail, hospitality spaces, fitness centers, convention centers, exhibit spaces, conference rooms, atriums, museums and transit centers.

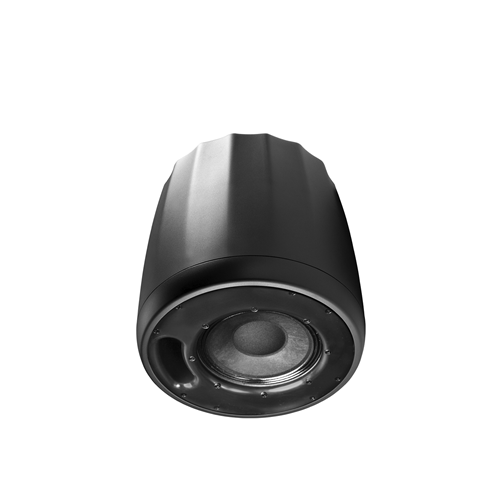

Control 68HP features a 200mm (8-inch) low-frequency driver with a Kevlar-reinforced cone and a 50mm (2-inch) voice coil with fiberglass voice coil former for superior power performance and long-term reliability. A coaxially-mounted 25mm (1-inch) compression driver features a titanium dome with damped resonance and a Kapton voice coil former for enhanced long-term fidelity and output capability.

A 68-watt multi-tap transformer is included for use on 70V/100V distributed loudspeaker lines and is switchable for 8-ohm direct operation. And, its 110° constant-directivity dispersion pattern allows for the use of fewer speakers, reducing the cost of the installed system without sacrificing performance.

Installation is fast and easy with Control 68HP’s secure mounting system. Two complete hanging cable systems are included, providing both main and safety suspension cables. Suspension height is infinitely adjustable using the included 4.5-meter high-tensile galvanized steel wire rope with spring clips and UL listed cable fasteners.



Important Order Information: The price displayed for this item is the price of a singe unit. However, this item is packaged and sold as a carton of 2 units. Please note, this item must be purchased in multiples of 2 units.

Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Frequency Range (-10dB) 52 Hz - 17 kHz
Frequency Response (+/-3 dB) 72 Hz - 16 kHz
Power Rating 150 Watts Continuous Pink Noise Power (600 Watts peak, 100 hrs)
250 Watts Continuous Pink Noise Power (1000 Watts peak, 2 hrs)
500 Watts Continuous Program Power (2 hr)
Sensitivity 90 dB
Maximum SPL 114 dB continuous pink noise, 120 dB peak
Nominal Coverage 110° conical (+30° / -30°)
Directivity Factor (Q) 7.8
Directivity Index (DI) 8.9 dB
Nominal Impedance 8
Transformer Taps 70V: 68W, 34W, 17W, & 8.5W
100V: 68W, 34W, 17W
Drivers
  • 200 mm (8 in) Kevlar(tm) reinforced cone, 50 mm (2 in) CCAW voice coil on fiberglass voice coil former
  • 25 mm (1.0 in) compression driver, titanium dome, ferrite magnet assembly, Kapton(tm) voice coil former
Terminals Two removable locking euro-block 2-pin connectors with screwdown terminals for bare wire. Connectors paralleled for input and loop-thru. Max. wire 12 AWG (2.5 mm2). Rubber terminal covers included.
Enclosure Material High impact polystyrene
Color Black or white
Dimensions 333 mm (13.1 in) diameter x 344 mm (13.6 in) height to top of cabinet. 369 mm (14.5 in) to top of suspension bracket
Net Weight 5.9 kg (13 lbs)
Shipping Weight 14.1 kg (31 lbs)
Included Accessories Two suspension cable systems, two 2-pin removable locking euro-block connectors, two rubber covers for euro-block connectors.
