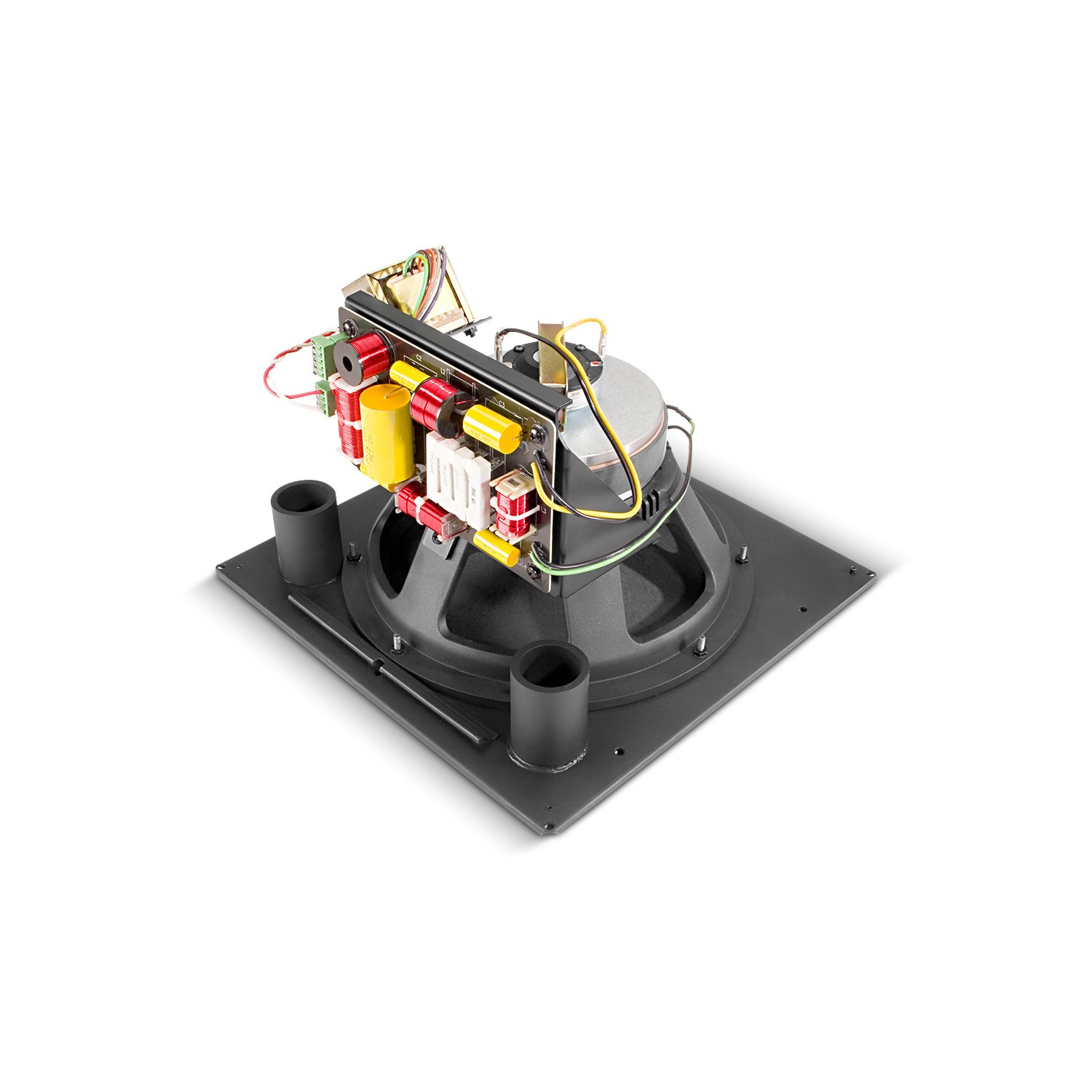

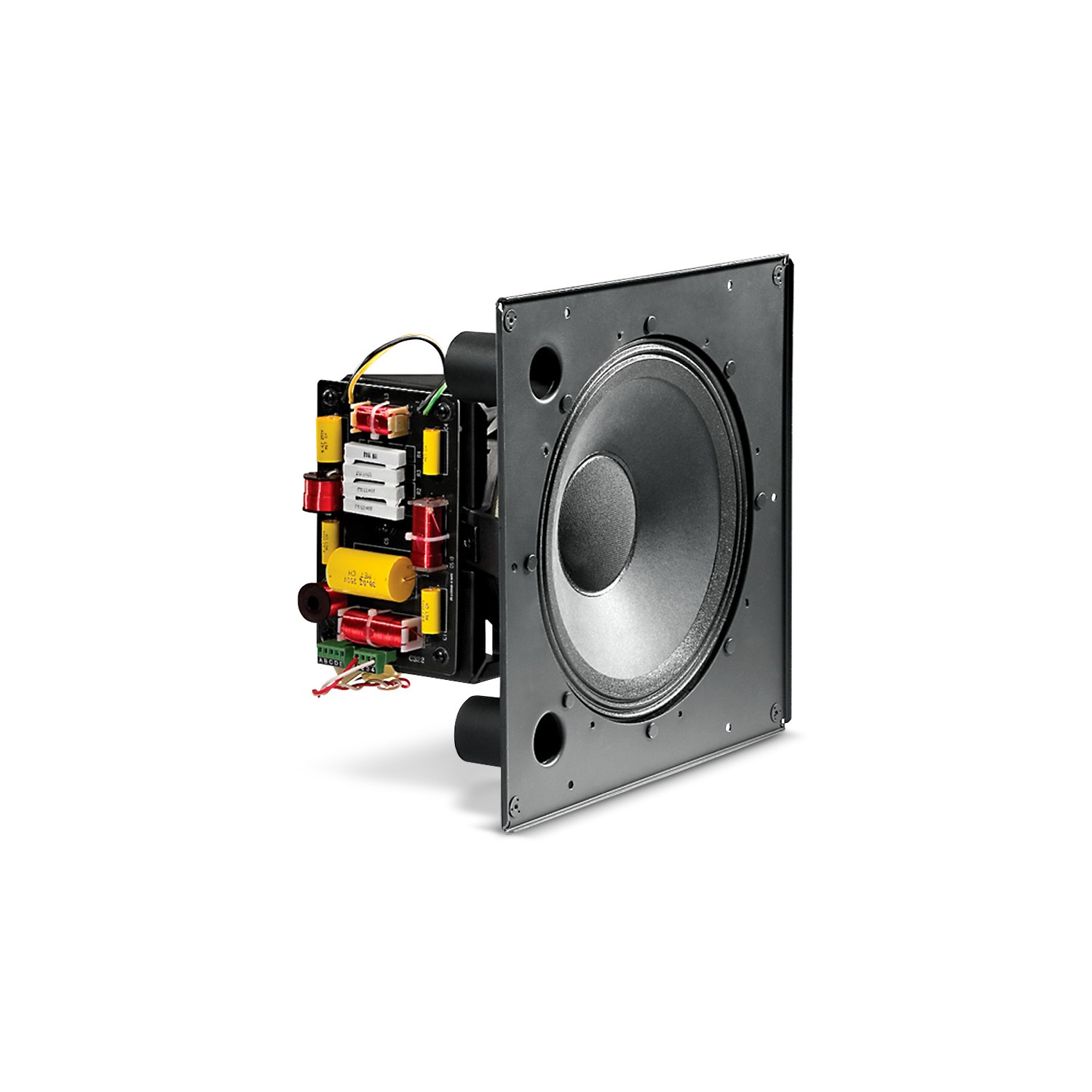

JBL Control 322CT - High-output 12 Inch Coaxial Ceiling Loudspeaker with Transformer

Product Code: JBL CTRL322CT

Key Features
Control 322C with pre-attached 100 Watt 70V/100V Multi-Tap Transformer. Taps at 100W, 50W & 25W (Plus 12.5W at 70V Only). 14.4 Square Ported Baffle x 9.5 Deep. EZ-Rail for Ease of Installation. UL LISTED
$2,499.17 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time 8-12 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

High-output 12 in. Coaxial Ceiling Loudspeaker

The 322CT delivers exceptional next-generation performance in a coaxial point source design ceiling loudspeaker.

Features

  • Consistent 90° broadband pattern control.
  • Components
    • Kevlar-reinforced 300 mm (12 in) woofer with 75 mm (3 inch) voice-coil cone.
    • Medium-format compression driver.
  • Extraordinary clarity for speech and vocals with extended frequency response for music.
  • Power handling of 400 Watts with high sensitivity provides high SPL capability.
  • Advanced high-slope crossover network for constant coverage and smooth, natural midrange.
  • Clean, contemporary grille and optional backbox available.
Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Frequency Range (-10 dB) 32 Hz 20 kHz
Long-Term System Power Rating 400 W (1600 W peak), 2 hrs250 W (1000 W peak), 100 hrs
Taps 70V: 100W, 50W, 25W, & 12.5W100V: 100W, 50W & 25W
Frequency Response ( 3 dB) 48 Hz 19 kHz
Coverage Pattern 90 conical, broadband (Avg. 1k - 16kHz)
Directivity Factor (Q) 9 (1k - 16kHz)
Directivity Index (DI) 9.5dB (1k - 16kHz)
Sensitivity (2.83V@ 1m) 95 dB measured half-space
Maximum SPL 121 dB cont ave (124 dB peak)
Dimensions (H x W x D) 366 x 366 mm (14.4 x 14.4 in) square baffle x depth from back of baffle of 240 mm (9.5 in)
