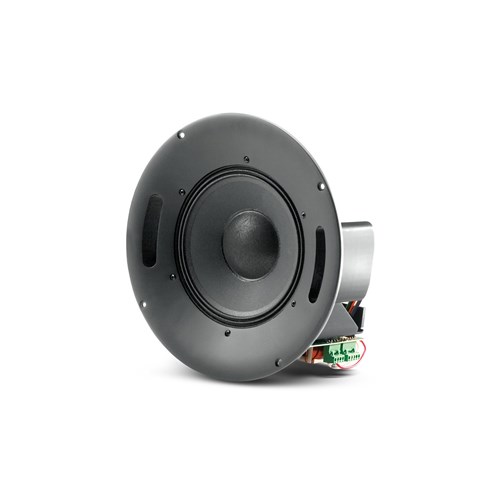

JBL Control 328CT - 8 inch Coaxial Ceiling Loudspeaker with HF Compression Driver with Transformer

Product Code: JBL CTRL328CT

Key Features

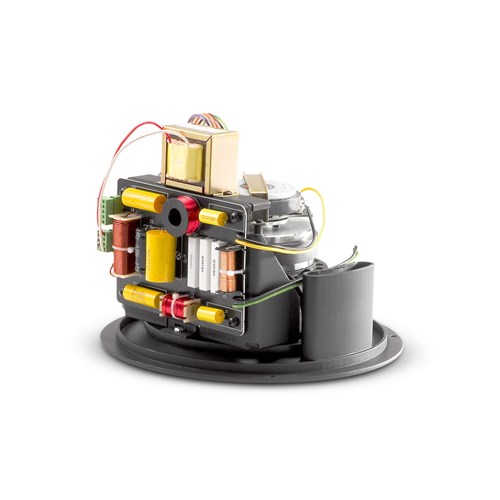

Control 328C with pre-attached 60 Watt 70V/100V Multi-Tap Transformer. Taps at 68W, 34W & 17W (Plus 8.5W at 70V Only). 12 Round Ported Baffle with Waveguide, Depth 8.6 . UL LISTED
$1,441.25 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Stock on order
  • Features
  • Overview
  • Technical Specs
  • Documents

8" Coaxial Ceiling Loudspeaker with HF Compression Driver

Control 328CT has been engineered from the ground up to deliver exceptional next-generation performance in a coaxial point source design ceiling loudspeaker.

Features

  • Consistent 120° broadband pattern control covers an extremely large area.
  • Shaped mounting baffle provides the pattern control of a 300 mm (12 in) horn from a 200 mm (8 in) driver.
  • Components
    • 200 mm (8 in) woofer with Kevlarreinforced cone and 50 mm (2 in) voice-coil.
    • 25 mm (1" exit) compression driver.
  • Extraordinary clarity for speech and vocals with extended frequency response for music.
  • 250 Watt power handling with very high sensitivity provides high SPL capability.
  • Advanced high-slope crossover network for constant coverage and smooth, natural midrange.
  • Clean, contemporary grille and optional backbox available.
Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Frequency Range (-10 dB) 45 Hz 18 kHz
Long-Term System Power Rating 250 W (1000 W peak), 2 hrs150 W (600 W peak), 100 hrs
Taps 70V: 68W, 34W, 17W, 8.5W100V: 68W, 34W, 17W
Frequency Response ( 3 dB) 60Hz 16 kHz
Coverage Pattern 120 conical, broadband
Nominal Impedance (321C) 8 ohms
Directivity Factor (Q) 7.0 (Avg 1k - 16kHz)
Directivity Index (DI) 8.5dB (Avg 1k - 16kHz)
Sensitivity (2.83V@ 1m) 93 dB measured half-space
Maximum SPL 118 dB cont ave (124 dB peak)
Crossover Network 1.9 kHz, 3rd order (18 dB/oct) high-pass plus conjugate
Dimensions (H x W x D) 305 mm (12.0 in.) diameter round baffle x depth from back of baffle of 218 mm (8.6 in)
