JBL Control 328C - 8 Inch Coaxial Ceiling Loudspeaker with HF Compression Driver

Product Code: JBL CTRL328C

Key Features
8 Coax Ceiling Speaker with 12 Waveguide. Broadband 120º Coverage. 250 Watts, 45 Hz to 18 kHz Frequency Response, 93 dB Sensitivity. 2412H Compression driver. 12 Round Ported Baffle/Waveguide x 6.3 Deep. UL LISTED
$1,281.96 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time 8-12 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

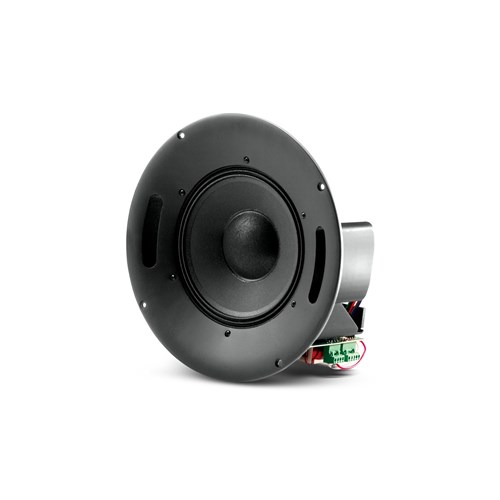

8" Coaxial Ceiling Loudspeaker with HF Compression Driver

Control 328C has been engineered from the ground up to deliver exceptional next-generation performance in a coaxial point source design ceiling loudspeaker.

Features

  • Consistent 120° broadband pattern control covers an extremely large area.
  • Shaped mounting baffle provides the pattern control of a 300 mm (12 in) horn from a 200 mm (8 in) driver.
  • Components
    • 200 mm (8 in) woofer with Kevlarre inforced cone and 50 mm (2 in) voice-coil.
    • 25 mm (1" exit) compression driver.
  • Extraordinary clarity for speech and vocals with extended frequency response for music.
  • 250 Watt power handling with very high sensitivity provides high SPL capability.

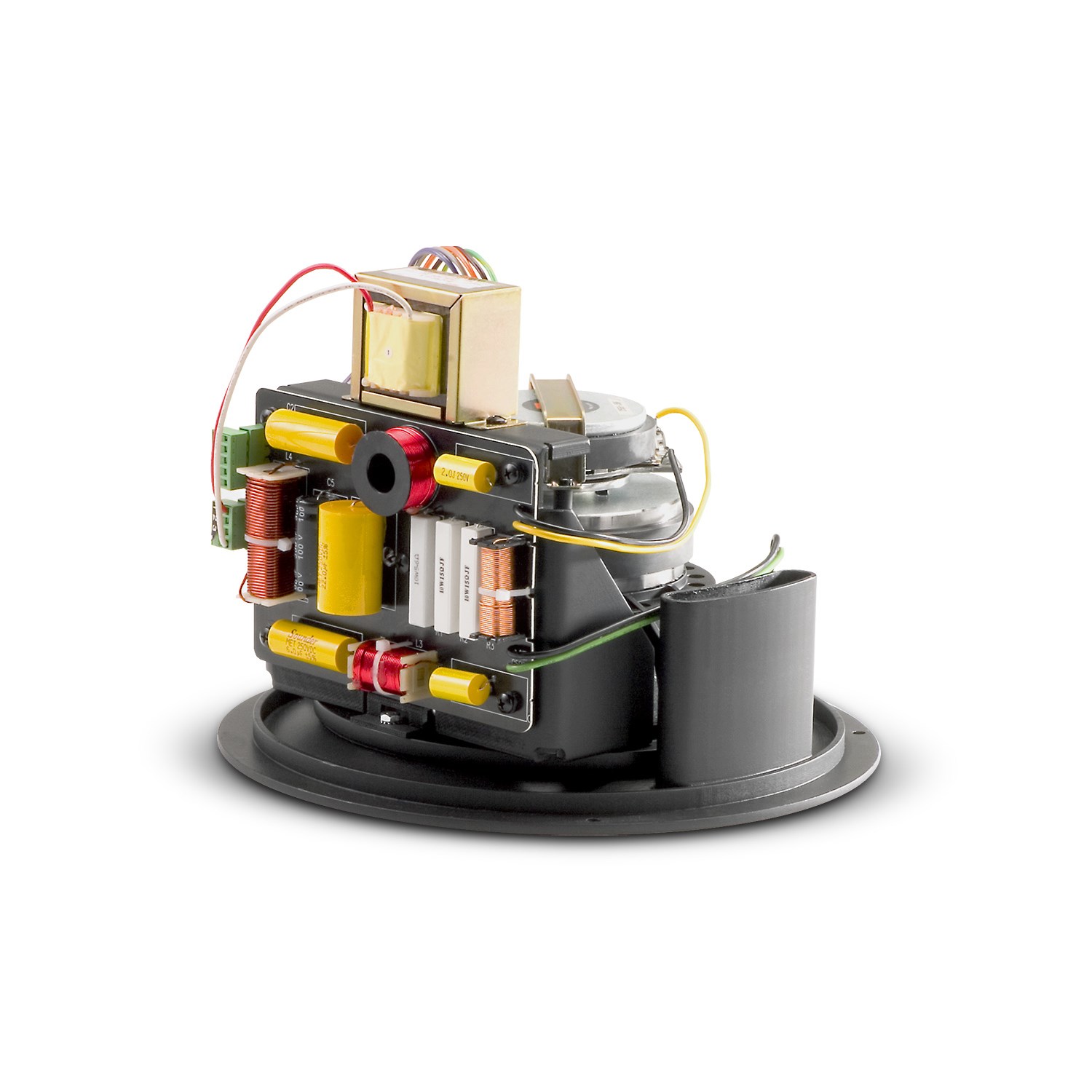

  • Advanced high-slope crossover network for constant coverage and smooth, natural midrange.
  • Clean, contemporary grille and optional backbox available.
Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Frequency Range (-10 dB) 45 Hz 18 kHz
Long-Term SystemPower Rating 250 W (1000 W peak), 2 hrs150 W (600 W peak), 100 hrs
Sensitivity (2.83V@ 1m) 93 dB4 measured half-space
Frequency Response ( 3 dB) 60Hz 16 kHz
Coverage Pattern 120 conical, broadband
Directivity Factor (Q) 7.0 (Avg 1k - 16kHz)
Directivity Index (DI) 8.5dB (Avg 1k - 16kHz)
Maximum SPL 118 dB cont ave (124 dB peak)
Crossover Network 1.9 kHz, 3rd order (18 dB/oct) high-pass plus conjugate to HF, 2nd order low-pass to LF
Nominal Impedance (321C) 8 ohms
Dimensions (H x W x D) 305 mm (12.0 in.) diameter round baffle x depth from back of baffle of 160 mm (6.3in)

Accessories

JBL MTC-300BB8 - 1 Cubic Ft. Backcan for Control 300 Series 8 in. Drivers
JBL MTC-300BB8 - 1 Cubic Ft. Backcan for Control 300 Series 8 in. Drivers JBL MTC-300BB8
Estimated Lead time 8-12 weeks
$285.76 (EA)
Increase value Decrease value View Product
JBL MTC-RG6/8 - Round Grille for Control 200 and Control 300 Series
JBL MTC-RG6/8 - Round Grille for Control 200 and Control 300 Series JBL MTC-RG6-8
Estimated Lead time 6-8 weeks
$96.34 (EA)
Increase value Decrease value View Product
JBL MTC-SG6/8 - Square Grille for Control 200 and Control 300 Series
JBL MTC-SG6/8 - Square Grille for Control 200 and Control 300 Series JBL MTC-SG6-8
Estimated Lead time 6-8 weeks
$175.34 (EA)
Increase value Decrease value View Product
JBL MTC-TB6/8 - Tile Bridge for Control 200 and Control 300 Series - Priced as Each Sold as 6 Pack
JBL MTC-TB6/8 - Tile Bridge for Control 200 and Control 300 Series - Priced as Each Sold as 6 Pack JBL MTC-TB6-8
Estimated Lead time 6-8 weeks
$86.59 (EA)
Increase value Decrease value View Product
