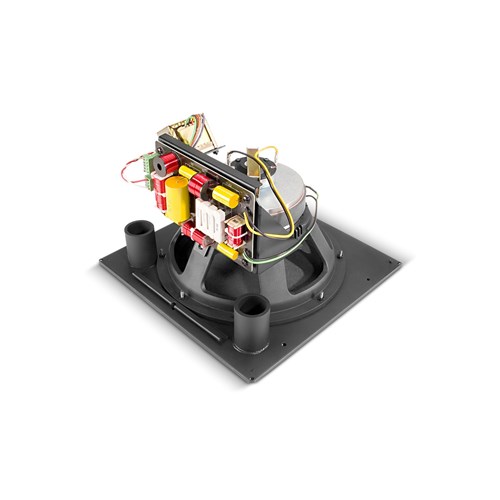

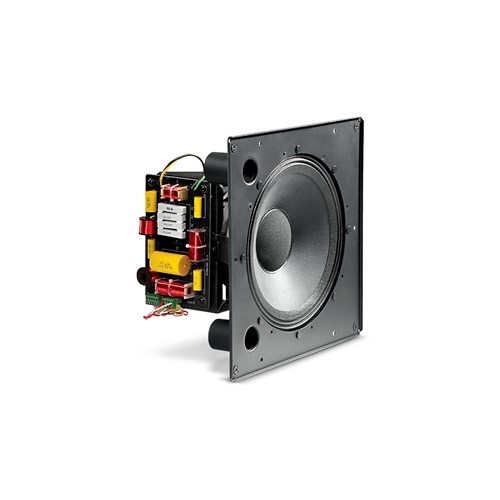

JBL Control 322C - High-output 12 Inch Coaxial Ceiling Loudspeaker

Product Code: JBL CTRL322C

Key Features
High-Power 12 Coax Ceiling Loudpeaker with Medium Format Compression Driver. True Broadband 90º Coverage. 400 Watts, 32 Hz to 20 kHz Frequency Response, 95 dB Sensitivity. 2407H Compression Driver. 14.4 Square Ported Baffle x 8.8 Deep. EZ-Rail for Ease of Installation. UL LISTED
$2,302.28 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time 8-12 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

High-output 12 in. Coaxial Ceiling Loudspeaker

The Control 322C delivers exceptional next-generation performance in a coaxial point source design ceiling loudspeaker.

Features

  • Consistent 90° broadband pattern control.
  • Components
    • Kevlar-reinforced 300 mm (12 in) woofer with 75 mm (3 inch) voice-coil cone.
    • Medium-format compression driver.
  • Extraordinary clarity for speech and vocals with extended frequency response for music.
  • Power handling of 400 Watts with high sensitivity provides high SPL capability.
  • Advanced high-slope crossover network for constant coverage and smooth, natural midrange.
  • Clean, contemporary grille and optional backbox available.
Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Frequency Range (-10 dB) 32 Hz 20 kHz
Long-Term SystemPower Rating 400 W (1600 W peak), 2 hrs250 W (1000 W peak), 100 hrs
Sensitivity (2.83V@ 1m) 95 dB measured half-space100 dB computed for competitive comparison
Frequency Response ( 3 dB) 48 Hz 19 kHz
Coverage Pattern 90 conical, broadband (Avg. 1k - 16kHz)
Directivity Factor (Q) 9 (1k - 16kHz)
Directivity Index (DI) 9.5dB (1k - 16kHz)
Crossover Network 1.4 kHz, 3rd order (18 dB/oct) high-pass plus conjugate to HF, 2nd order low-pass to LF
Nominal Impedance 8 ohms
Dimensions (H x W x D) 366 x 366 mm (14.4 x 14.4 in) square baffle x depth from back of baffle of 223 mm (8.8 in)

Accessories

JBL MTC-300BB12 - 3 Cubic Ft. Backbox for Control 300 Series 12 in. Drivers
JBL MTC-300BB12 - 3 Cubic Ft. Backbox for Control 300 Series 12 in. Drivers JBL MTC-300BB12
Estimated Lead time 8-12 weeks
$839.30 (EA)
Increase value Decrease value View Product
JBL MTC-300SG12 - Square Grille for Control 300 Series 12 in. Drivers
JBL MTC-300SG12 - Square Grille for Control 300 Series 12 in. Drivers JBL MTC-300SG12
Estimated Lead time 8-12 weeks
$133.19 (EA)
Increase value Decrease value View Product
JBL MTC-300T150 - 150W Transformer
JBL MTC-300T150 - 150W Transformer JBL MTC-300T150
Estimated Lead time 8-12 weeks
$281.02 (EA)
Increase value Decrease value View Product
