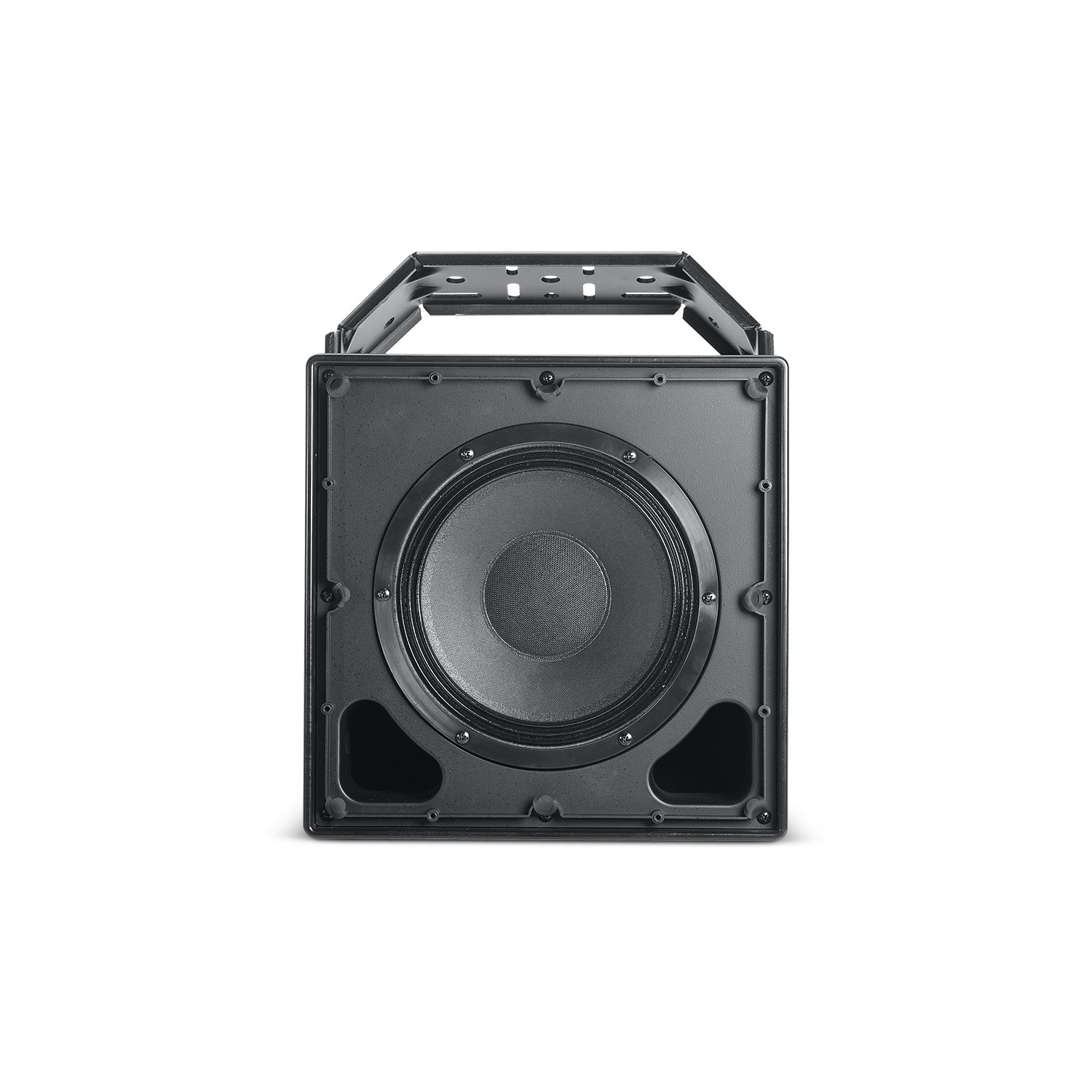

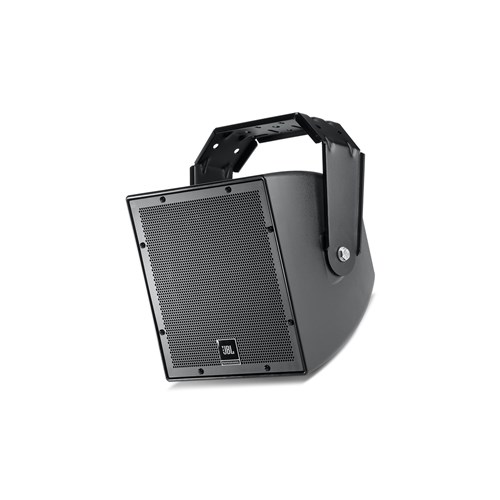

JBL AWC82 - All-Weather Compact 2-Way Coaxial Loudspeaker with 8 Inch LF Black

Product Code: JBL AWC82-BK

Key Features
8" 2-Way All-Weather Compact Co-axial Loudspeaker. 120° x 120° broadband control, co-ax driver with 200 mm (8 in) Kevlar-reinforced woofer and 25 mm (1 in) compression driver with high-temp polymer diaphragm. Excellent clarity with extended frequency response. 250 Watt power handling (1000 Watt peaks), 80 Hz - 20 kHz frequency range, overload HF protection, 200 Watt 70V/100V multi-tap or direct 8? low-impedance. U-Bracket included. Gray or black (-BK), paintable. Sold and packed as each.
$1,776.59 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

All-Weather Compact 2-Way Coaxial Loudspeaker with 8" LF

Features

  • Highly weather-resistant IP56 rating
  • Consistent 120° x 120° broadband pattern control
  • Components:
    • 200 mm (8 in) woofer with Kevlar-reinforced cone and 50 mm (2 in) voice coil.
    • 25 mm (1 in) exit compression driver with unique patented design and high temperature polymer diaphragm.
  • Extraordinary clarity for speech, with extended frequency response for music.
  • Advanced high-slope crossover network for constant coverage and smooth, natural midrange.
  • 250 Watt power handling (average continuous pink noise) with high sensitivity provides high SPL capability.
  • High-power passive crossover network.
  • Overload protection
  • 80 Hz – 20 kHz frequency response.
  • 200 Watt 70V/100V multi-tap (built-in transformer) or direct 8Ω low-impedance.
Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Frequency Range (-10 dB) 80 Hz 20 kHz
Frequency Response ( 3 dB) 100 Hz 20 kHz
Coverage Pattern 120 x 120
Directivity Factor (Q) 8.1 (1 k 16 kHz)
Directivity Index (DI) 8.4 dB (1 k 16 kHz)
Long-Term System Power Rating (IEC) 250 W 2 hrs. 200 W 100 hrs
Sensitivity (2.83V @ 1m) 94 dB (Ave. 100 Hz 20 kHz)
Maximum SPL Direct 8 : 118 dB (peaks of 124 dB) 200 W Tap: 117 dB
Crossover Network 1.8 kHz, 3rd order (18 dB/oct) high-pass plus conjugate to HF, 2nd order low-pass to LF
Nominal Impedance 8 ohms
Transformer Taps 70V: 200W, 100W, 50W, 25W100V: 200W, 100W, 50W
Low Frequency Driver Kevlar-reinforced cone with weather treatment, 50 mm (2 in) voice coil.
High Frequency Driver 25 mm (1 in) diaphragm and voice coil diameter, high temperature polymer diaphragm, patented design, fluid-cooling.
HF Driver Protection Minimum audibility SonicGuard HF overload protection
Enclosure ABS with Glass enclosure, heavily braced
Attachment Two M10 (fine-thread) points for included U-bracket. M6 secondary safety attachment point on back panel.
Grille Corrosion-resistant zinc-rich extra-thick powder coated steel grille, 3-layer assembly with foam and woven poly mesh backing.

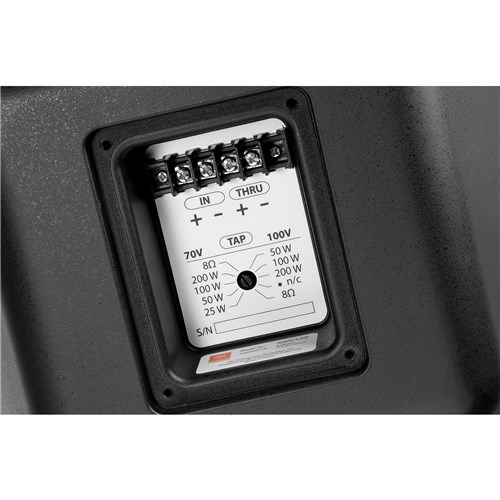

Input Connection CE-compliant covered barrier strip terminals. Barrier terminals accept up to 9 mm outside 4 mm inside open-lug (#6, #8 or #10) plus bare wire up to 2.5 mm2 (12 AWG) wire or spade lugs. Terminal compartment cover equipped with gland nut that forms water-tight seal with round-jacketed cables with outside diameters between 4.0 mm (0.16") and 9.0 mm (0.36")
Environmental IP56 per IEC529, with a minimum 5 downward aiming angle. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV, and ASTM G85 for salt spray (168 hrs).
Dimensions 300 x 300 x305 mm (11.8 x 11.8 x 12.0), cabinet 331 mm (13.0 in) including gland nut 359 mm (14.2 in) including bracket extending to back
Colors Available in gray (similar to Pantone 420C) and black (-BK)
Net Weight 9.8 kg (21.5 lb), 11.6 kg (25.5 lb) with U-bracket
Shipping Weight 14.1 kg (31.0 lb)
Included Accessories U-bracket, matches loudspeaker color (gray or black), zinc-rich extrathick powder coated, steel.
