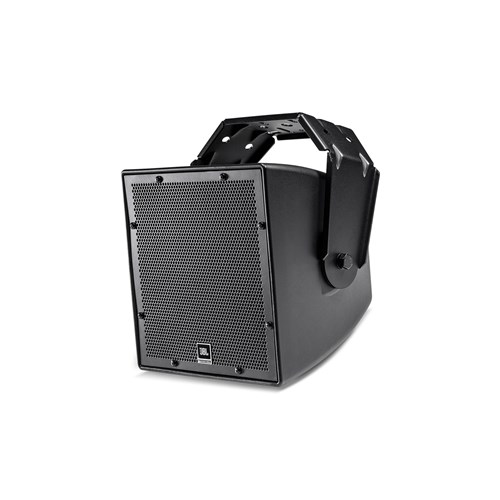

JBL AWC62 - All-Weather Compact 2-Way Coaxial Loudspeaker with 6.5 Inch LF Black

Product Code: JBL AWC62-BK

Key Features
Same as AWC62, in black. Sold and packed as each.
$1,336.83 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Stock on order
  • Features
  • Overview
  • Technical Specs
  • Documents

All-Weather Compact 2-Way Coaxial Loudspeaker with 6.5" LF

The AWC62 is a compact, coaxial-driver, 2-way, highly weather-resistant full-range loudspeaker system which is ideal for speech and music-fill in a wide variety of applications, including sports facilities, racetracks, stadiums, fairgrounds, rodeos, skating rinks, themed entertainment venues, cruise ships, water parks, outdoor background music/paging systems, swimming pools, and a wide variety of other outdoor or indoor venue types.

Features

  • Highly weather-resistant IP56 rating.
  • Consistent 110 x 110 broadband pattern control.
  • Components:

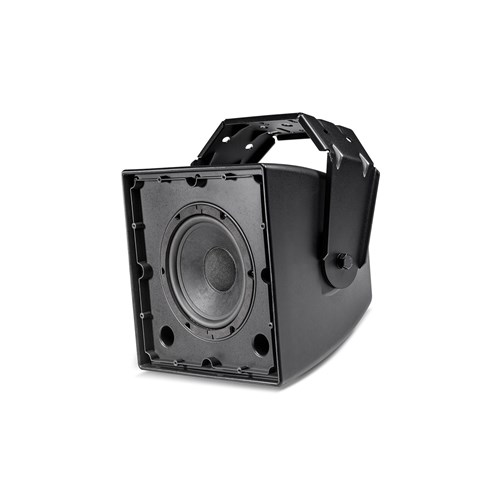

    165 mm (6.5 in) woofer with Kevlar-reinforced cone and 38 mm (1.5 in) voice coil.
    25 mm (1 in) exit compression driver
  • Extraordinary clarity for speech, with extended frequency response for music.
  • Advanced high-slope crossover network for constant coverage and smooth, natural midrange.
  • 175 Watt power handling (average continuous pink noise) with high sensitivity provides high SPL capability.
  • High-power passive crossover network.
  • Overload protection.
  • 70 Hz 18 kHz frequency response.
  • 120 Watt 70V/100V multi-tap (built-in transformer) or direct 8 low-impedance.
    • Warranty

    We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

    Frequency Range (-10 dB) 70 Hz 18 kHz
    Frequency Response ( 3 dB) 100 Hz 16 kHz
    Coverage Pattern 110 x 110
    Directivity Factor 7.2 (1 k 16 kHz)
    Directivity Index (DI) 7.9 dB (1 k 16 kHz)
    Long-Term System Power Rating (IEC) 175 W 2 hrs.120 W 100 hrs
    Sensitivity (2.83V @ 1m) 92 dB (Ave. 100 Hz 18 kHz)
    Maximum SPL Direct 8 : 114 dB (peaks of 120 dB)120 W Tap: 112 dB
    Crossover Network 1.8 kHz, 3rd order (18 dB/oct) high-pass plus conjugate to HF, 3rd order low-pass to LF
    Nominal Impedance 8 ohms
    Transformer Taps 70V: 120W, 60W, 30W, 15W 100V: 120W, 60W, 30W
    Low Frequency Driver Kevlar-reinforced cone with weather treatment, 38 mm (1.5 in) voice coil.
    High Frequency Driver 25 mm (1 in) diaphragm and voice coil diameter
    HF Driver Protection Minimum audibility SonicGuard HF overload protection
    Enclosure ABS with Glass enclosure
    Attachment Two M10 (fine-thread) points for included U-bracket. M6 secondary safety attachment point on back panel.
    Grille Corrosion-resistant zinc-rich extra-thick powder coated steel grille, 3-layer assembly with foam and woven poly mesh backing.
    Input Connection CE-compliant covered barrier strip terminals. Barrier terminals accept up to 8 mm outside 4 mm inside open-lug (#6 or #8) plus bare wire up to 2.5 mm2 (12 AWG) wire or spade lugs. Terminal compartment cover equipped with gland nut that forms water-tight seal with round- jacketed cables with outside diameters between 4.0 mm (0.16") and 9.0 mm (0.36").
    Environmental IP56 per IEC529, with a minimum 5 downward aiming angle. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV, and ASTM G85 for salt spray (168 hrs).
    Dimensions 259 x 259 x 255 mm (10.2 x 10.2 x 10.1 in), cabinet 288 mm (11.4 in) including gland nut 309 mm (12.2 in) including bracket extending to back
    Colors Available in gray (similar to Pantone 420C) and black (-BK)
    Net Weight 6.8 kg (15.0 lb), 7.7 kg (17.0 lb) with U-bracket
    Shipping Weight 8.8 kg (19.5 lb)
    Included Accessories U-bracket, matches loudspeaker color (gray or black), zinc-rich extra thick powder coated, steel.
