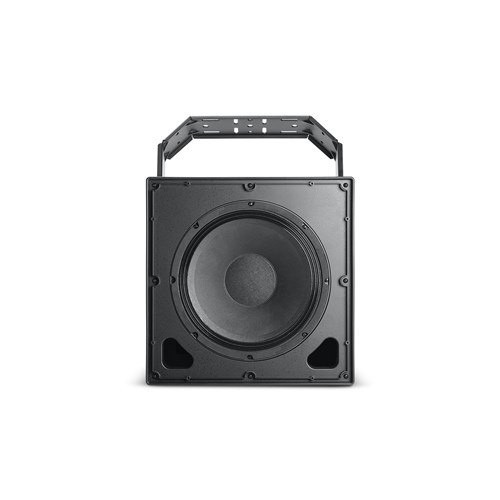

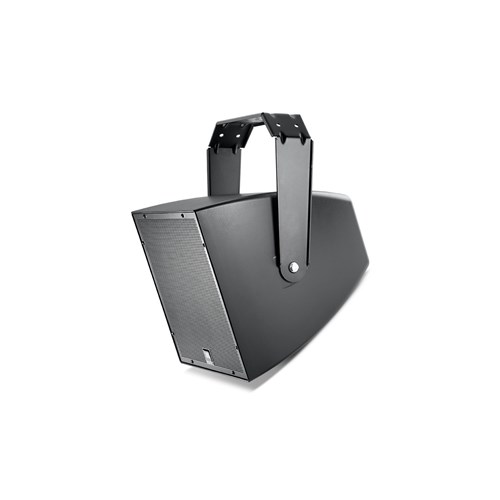

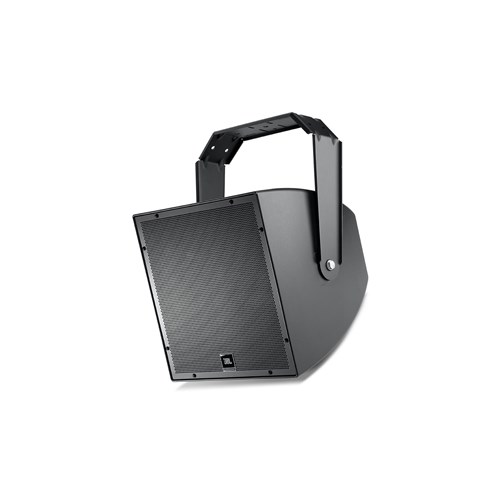

JBL AWC129 - All-Weather Compact 2-Way Coaxial Loudspeaker with 12 Inch LF Black

Product Code: JBL AWC129-BK

Key Features
12" 2-Way All-Weather Compact Co-axial Loudspeaker. 90° x 90° broadband control, co-ax driver with 300 mm (12 in) Kevlar-reinforced woofer with 75 mm (3 in) voice coil and 25 mm (1 in) compression driver, high-temp polymer diaphragm. Excellent clarity extended frequency response. 400 Watt power handling (1600 W peaks), 55 Hz - 20 kHz frequency range, overload HF protection, 200 Watt 70V/100V multi-tap or direct 8? low-impedance. U-Bracket included. Gray or black (-BK), paintable. Sold and packed as each.
$3,324.50 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

All-Weather Compact 2-Way Coaxial Loudspeaker with 12" LF

The AWC129 is a compact, coaxial-driver, 2-way, highly weather-resistant full-range loudspeaker system which is ideal for speech and music in a wide variety of applications, including sports facilities, racetracks, stadiums, fairgrounds, rodeos, skating rinks, themed entertainment venues, cruise ships, water parks, outdoor background music/paging systems, swimming pools, and a wide variety of other outdoor or indoor venue types.

Features

  • Highly weather-resistant IP56 rating
  • Consistent 90 x 90 broadband pattern control
  • Components:
    300 mm (12 in) woofer with Kevlar-reinforced cone and 75 mm (3 in) voice coil.
    25 mm (1 in) exit compression driver with unique patented design and high temperature polymer diaphragm.
  • Extraordinary clarity for speech, with extended frequency response for music.
  • Advanced high-slope crossover network for constant coverage and smooth, natural midrange.
  • 400 Watt power handling (average continuous pink noise) with high sensitivity provides high SPL capability.
  • High-power passive crossover network.
  • Overload protection
  • 55 Hz 20 kHz frequency response.
  • 200 Watt 70V/100V multi-tap (built-in transformer)
    direct 8 low-impedance.
    • Warranty

    We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

    Frequency Range (-10 dB) 55 Hz 20 kHz
    Frequency Response ( 3 dB) 80 Hz 20 kHz
    Coverage Pattern 90 x 90
    Directivity Factor (Q) 10.1 (1 k 16 kHz)
    Directivity Index (DI) 9.5 dB (1k 16 kHz)
    Long-Term System Power Rating (IEC) 400 W (1600 W peak), 2 hrs. 250 W (1000 W peak), 100 hrs
    Sensitivity (2.83V @ 1m) 96 dB (Ave. 80 Hz 20 kHz)
    Maximum SPL Direct 8 : 122 dB (peaks of 128 dB) 200 W Tap: 119 dB
    Crossover Network 1.5 kHz, 3rd order (18 dB/oct) high-pass plus conjugate to HF, 2nd order low-pass to LF
    Nominal Impedance 8 ohms
    Transformer Taps 70V: 200W, 100W, 50W, 25W 100V: 200W, 100W, 50W
    Low Frequency Driver Kevlar-reinforced cone with weather treatment, 75 mm (3 in) voice coil.
    High Frequency Driver 25 mm (1 in) diaphragm and voice coil diameter, high temperature polymer diaphragm, patented design, fluid-cooling.
    HF Driver Protection Minimum audibility SonicGuard HF overload protection
    Enclosure ABS with Glass enclosure, heavily braced
    Attachment Two M10 (fine-thread) points for included U-bracket. M6 secondary safety attachment point on back panel.
    Grille Corrosion-resistant zinc-rich extra-thick powder coated steel grille, 3- layer assembly with foam and woven poly mesh backing.
    Input Connection CE-compliant covered barrier strip terminals. Barrier terminals accept up to 9 mm outside 4 mm inside open-lug (#6, #8 or #10) plus bare wire up to 2.5 mm2 (12 AWG) wire or spade lugs. Terminal compartment cover equipped with gland nut that forms water-tight seal with round-jacketed cables with outside diameters between 4.0 mm (0.16") and 9.0 mm (0.36")
    Environmental IP56 per IEC529, with a minimum 5 downward aiming angle. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV, and ASTM G85 for salt spray (168 hrs).
    Dimensions 402 x 402 x 445mm (15.8 x 15.8 x 17.5 in), cabinet 470 mm (18.5 in) depth with gland nut 542 mm (21.4 in) including bracket extending to back
    Colors Available in gray (similar to Pantone 420C) and black (-BK)
    Net Weight 15.9 kg (35.0 lb), 18.9 kg (41.5 lb) with u-bracket
    Shipping Weight 23.4 kg (51.5 lbs)
    Included Accessories U-bracket, matches loudspeaker color (gray or black), zinc-rich extrathick powder coated, steel.
