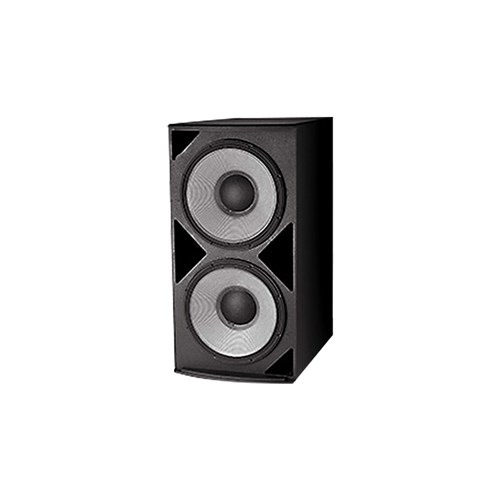

JBL ASB6128-WRX-BK High Power Subwoofer 2 x 18 Inch 2242H SVG Driver Black

Product Code: JBL ASB6128-WRX-BK

Key Features
JBL ASB6128-WRX-BK Dual 18" Subwoofer (Wrx Treatment) Blk- High Power Dual 18" Subwoofer. 2 X 18" 2242H Vgc Driver, Parallel/Discrete Switchable. With Weather Protection Treatment. Refer To Weather Resistant Configurations For Ae, Pd & Vla Series Document For Details Regarding Wrc/Wrx Models. Wrc & Wrx Enclosures Are Larger Than The Standard Enclosure. Paf Kits Do Not Fit Wrc & Wrx Enclosures. Standard Color Is Gray. Available In Black (-Bk) & White (-Wh). Custom Product Manufactured To Order, Lead Times Confirmed At Time Of Order.
Enquire Now
Qty Each (inc GST) Each
Estimated Lead time Contact Us
  • Features
  • Overview
  • Technical Specs
  • Documents

High Power Subwoofer 2 x 18" 2242H SVG™ Driver

ASB6128 is a high power subwoofer system comprised of two 460 mm (18 in) SVG Super Vented Gap low frequency drivers in a front-loaded, vented configuration.

Features

  • Large vent area for high output.
  • Parallel/Discrete Switchable.
  • FIR Tuning Set Matches Phase Profile to Full-Range Models
  • For fixed installation applications such as performing arts facilities, theatrical sound design, auditoriums, houses of worship, live clubs, dance-clubs/discotheques, sports facilities and themed entertainment venues.
Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
Frequency Range (-10dB) 28 Hz – 1 kHz
Frequency Response (±3 dB) 35 Hz – 1 kHz
Input Modes Drivers Parallel / Drivers Discrete
Transducer Power Rating (AES) 2400 W (9600 W peak), 2 hrs
System Power Rating 1600 W (6400 W peak), 100 hrs
Maximum SPL (1m) 30 Hz – 100 Hz: 136 dB-SPL cont avg (142 dB peak)100 Hz – 500 Hz: 136 dB-SPL cont avg (142 dB peak)
System Sensitivity (1w @ 1m) 30 Hz – 100 Hz: 102 dB 100 Hz – 500 Hz: 102 dB
Nominal Impedance 4 ohms in parallel-drive mode 2 x 8 ohms in discrete-drive mode
LF Driver 2 x JBL 2242H 460 mm (18 in) SVG™ drivers with 100 mm (4 in) voice coil
Nominal LF Driver Impedance 4 ohms in parallel-drive mode 2 x 8 ohms in discrete-drive mode
Enclosure Rectangular cabinet, 16 mm (5/8 in) exterior grade 11-ply Finnish birch plywood
Suspension Attachment 12 points (3 top, 3 bottom, 3 each side, 2 rear), M10 threaded hardware
Environmental Mil-Std 810; IP-x3 per IEC529.
Net Weight (each) 161 lbs. (73 kgs)
