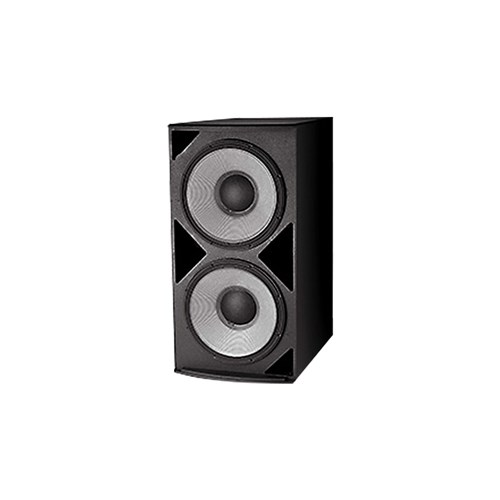

JBL ASB6128 - High Power Subwoofer 2 x 18 Inch 2242H SVG Driver Black

Product Code: JBL ASB6128-BK

Key Features
High Power Dual 18" Subwoofer. 2 x 18" 2242H VGC Driver, Parallel/Discrete Switchable. Suspension Eyebolts Not Included. Arrays with AM6340 and AM4340 Loudspeakers Using PAF-2K Planar Array Frame Kit. Priced as each.
$11,420.26 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time 8-12 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

High Power Subwoofer 2 x 18" 2242H SVG Driver

ASB6128 is a high power subwoofer system comprised of two 460 mm (18 in) SVG Super Vented Gap low frequency drivers in a front-loaded, vented configuration.

Features

  • Large vent area for high output.
  • Parallel/Discrete Switchable.
  • For fixed installation applications such as performing arts facilities, theatrical sound design, auditoriums, houses of worship, live clubs, dance-clubs/discotheques, sports facilities and themed entertainment venues.
    • Warranty

    We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

    Trade Terms
    This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
    Frequency Range 28 Hz 1 kHz (-10 dB)
    Frequency Response 35 Hz 1 kHz ( 3 dB)
    Input Modes Drivers Parallel / Drivers Discrete
    Transducer Power Rating (AES) 2400 W (9600 W peak), 2 hrs
    Long-Term System Power Rating (IEC) 1600 W (6400 W peak), 100 hrs
    Maximum SPL 30 Hz 100 Hz: 136 dB-SPL cont avg (142 dB peak)100 Hz 500 Hz: 136 dB-SPL cont avg (142 dB peak)
    System Sensitivity (dB-SPL, 1W @ 1m) 30 Hz 100 Hz: 102 dB 100 Hz 500 Hz: 102 dB
    Nominal Impedance 4 ohms in parallel-drive mode 2 x 8 ohms in discrete-drive mode

    Accessories

    JBL 2290000901 Kit Sp/Vs Set Of Three M10 X 35Mm Forged Shoulder Steel Ey
    JBL 2290000901 Kit Sp/Vs Set Of Three M10 X 35Mm Forged Shoulder Steel Ey JBL 229-00009-01
    In Stock
    $136.60 (EA)
    Increase value Decrease value View Product
