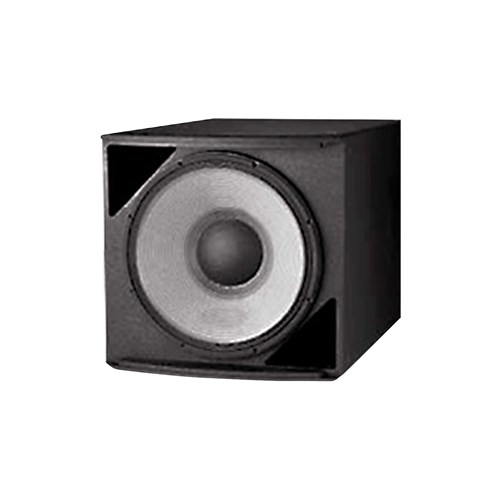

JBL ASB6118 - High Power Subwoofer 1 x 18 Inch 2242H SVG Driver Black

Product Code: JBL ASB6118-BK

Key Features
High Power Single 18" Subwoofer. 1 x 18" 2242H VGC Driver. Suspension Eyebolts Not Included. Arrays with AM6200 and AM4200 Mid-High Loudspeakers Using Optional PAF-2K Planar Array Frame Kit. Priced as each.
$7,253.81 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

High Power Subwoofer 1 x 18" 2242H SVG™ Driver

ASB6118 is a high power subwoofer system comprised of one 460 mm (18 in) SVG Super Vented Gap low frequency driver in a vented, front-loaded configuration for extended bandwidth.

Features

  • Large vent area for high output.
  • For fixed installation applications such as performing arts facilities, theatrical sound design, auditoriums, houses of worship, live clubs, dance-clubs/discotheques, sports facilities and themed entertainment venues.
    • Warranty

    We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

    Frequency Range 28 Hz 1 kHz (-10 dB)
    Frequency Response 35 Hz 1 kHz ( 3 dB)
    Transducer Power Rating (AES) 1200 W (4800 W peak), 2 hrs
    Long-Term System Power Rating (IEC) 800 W (3200 W peak), 100 hrs
    Maximum SPL 30 Hz 100 Hz: 129 dB-SPL cont avg (135 dB peak)100 Hz 500 Hz: 129 dB-SPL cont avg (135 dB peak)
    System Sensitivity (dB-SPL, 1W @ 1m) 30 Hz 100 Hz: 98 dB100 Hz 500 Hz: 98 dB
    Nominal Impedance 8 ohms

    Accessories

    JBL 2290000901 Kit Sp/Vs Set Of Three M10 X 35Mm Forged Shoulder Steel Ey
    JBL 2290000901 Kit Sp/Vs Set Of Three M10 X 35Mm Forged Shoulder Steel Ey JBL 229-00009-01
    In Stock
    $136.60 (EA)
    Increase value Decrease value View Product
