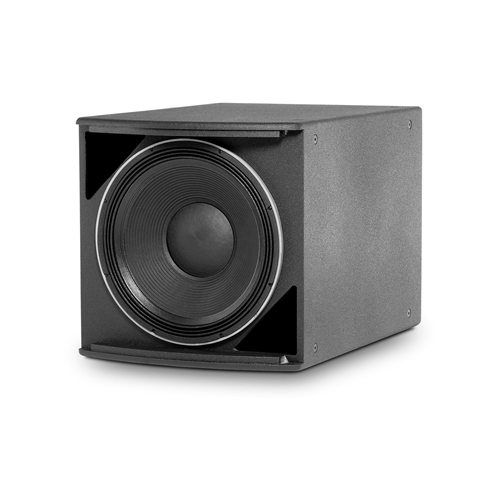

JBL ASB6118 - High Power Subwoofer 1 x 18 Inch 2242H SVG Driver with Extreme Weather Protection Treatment

Product Code: JBL ASB6118-WRX

Key Features
High Power Single 18" Subwoofer. 1 x 18" 2242H VGC Driver. With Extreme Weather Protection Treatment. Refer to WEATHER RESISTANT Configurations for AE, PD & VLA Series document for details regarding WRC/WRX models. WRC & WRX enclosures are larger than the standard enclosure. Visit www.jblpro.com to download AE Series 2D WRC & WRX drawings. PAF kits do not fit WRC & WRX enclosures. Standard color is GRAY. Available in Black (-BK) & White (-WH). 8-10 weeks for 1-10 pcs if larger 10-or greater has to be reviewed.
Enquire Now
Qty Each (inc GST) Each
Estimated Lead time Contact Us
  • Features
  • Overview
  • Technical Specs
  • Documents

High Power Subwoofer 1 x 18" 2242H SVG™ Driver

ASB6118 is a high power subwoofer system comprised of one 460 mm (18 in) SVG Super Vented Gap low frequency driver in a vented, front-loaded configuration for extended bandwidth.

Features

  • Large vent area for high output.
  • For fixed installation applications such as performing arts facilities, theatrical sound design, auditoriums, houses of worship, live clubs, dance-clubs/discotheques, sports facilities and themed entertainment venues.
    • Warranty

    We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

    Trade Terms
    This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
    Frequency Range 28 Hz 1 kHz (-10 dB)
    Frequency Response 35 Hz 1 kHz ( 3 dB)
    Transducer Power Rating (AES) 1200 W (4800 W peak), 2 hrs
    Long-Term System Power Rating (IEC) 800 W (3200 W peak), 100 hrs
    Maximum SPL 30 Hz 100 Hz: 129 dB-SPL cont avg (135 dB peak)100 Hz 500 Hz: 129 dB-SPL cont avg (135 dB peak)
    System Sensitivity (dB-SPL, 1W @ 1m) 30 Hz 100 Hz: 98 dB100 Hz 500 Hz: 98 dB
    Nominal Impedance 8 ohms
