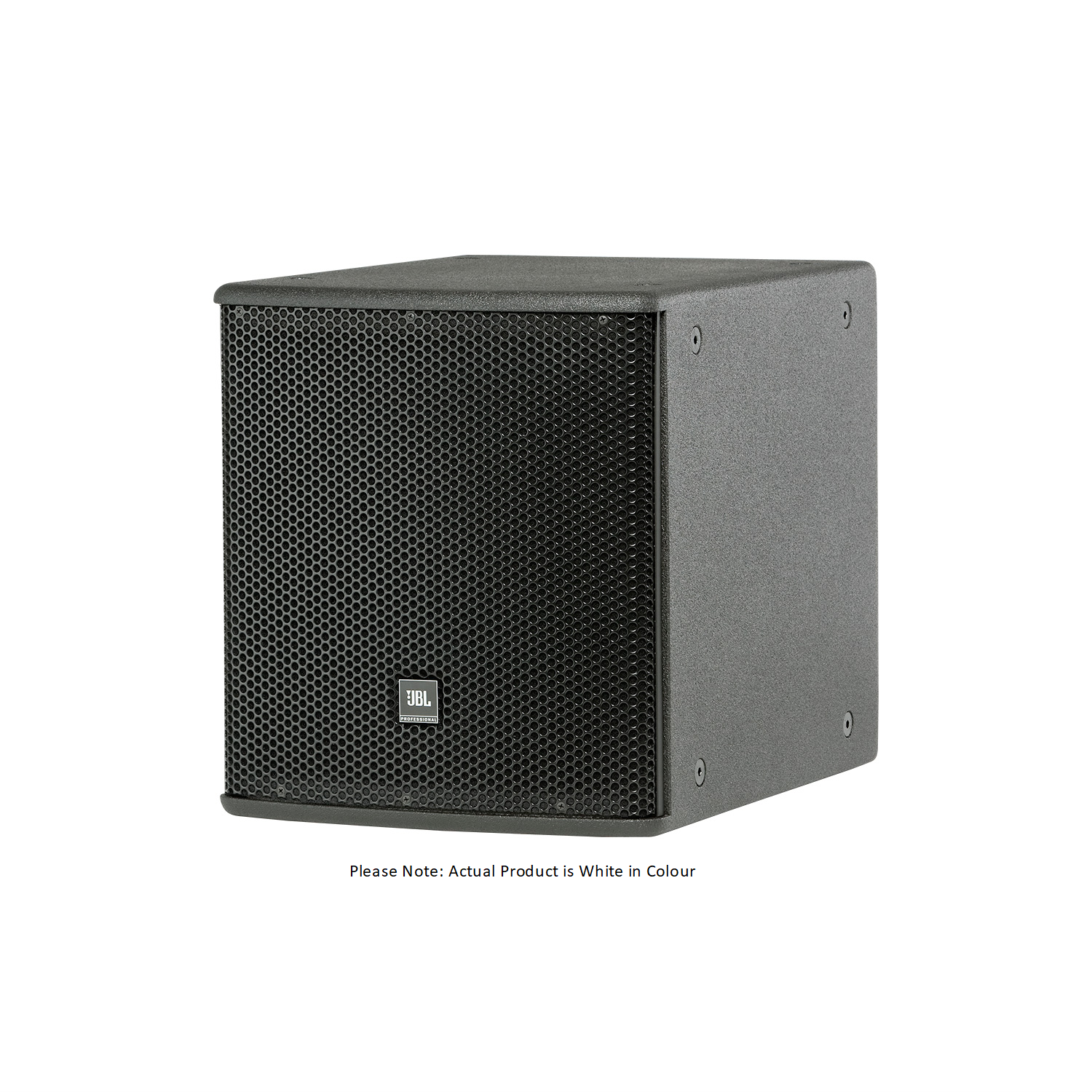

JBL ASB6112WH - Ultra Compact High-Power Single 12 Inch Subwoofer - White

Product Code: JBL ASB6112-WH

Key Features

Features

  • 2263H 12" Differential Drive® dual voice coil dual gap, neodymium magnet transducer
  • 1000 watts continuous pink noise,
    4000 watts peak power handling capacity
  • Large vent area for high output with low distortion
  • FIR Tuning Set Matches Phase Profile to Full-Range Models
  • For ground-stacked or suspended applications in stand-alone arrays or in combination with other
    AE Series products
$4,974.04 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

JBL ASB6112WH (White) Ultra Compact High-Power 12" Subwoofer

Compact High Power Single 12" Subwoofer

The ASB6112 is a high power, lightweight front-loaded vented subwoofer enclosure housing JBL’s 2263H Differential Drive® dual coil dual gap 12” woofer. This woofer features neodymium magnet and ultra-robust cone for extra-long life.

The enclosure is constructed of multiply hardwood coated in JBL’s rugged DuraFlex™ finish and is heavily braced to maximize low-frequency performance. The rectangular enclosure is fitted with sixteen M10 threaded attachment points and utilizes a 14-gauge steel grille internally lined with acoustically transparent foam to provide additional driver protection and give a very professional appearance.

The ASB6112 is part of JBL’s AE Series, a versatile family of loudspeakers intended for a wide variety of applications.

Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
Frequency Range (-10dB) 35 Hz – 1 kHz
Frequency Response (±3 dB) 43 Hz – 1 kHz
Transducer Power Rating (AES) 1000 W (4000 W peak), 2 hrs.
System Power Rating 700 W (2800 W peak), 100 hrs.
Maximum SPL (1m) 40 Hz - 300 Hz: 126 dB-SPL cont avg (132 dB peak)
System Sensitivity 40 Hz - 300 Hz: 96 dB-SPL,1W (2.83V) @ 1m
Nominal Impedance 8 ohms
LF Driver 1 x 2263H, 305 mm (12 in) dia., 75 mm (3 in) Dual Coil Dual Gap neodymium Differential Drive® driver
Enclosure Rectangular cabinet, 16 mm (5/8 in) exterior grade 11-ply birch plywood
Suspension Attachment 16 points (4 top, 4 bottom, 4 each side), M10 threaded hardware
Finish Black DuraFlex™ finish.White available upon request.
Grille Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.
Input Connector NL4 Neutrik Speakon® and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through.
Environmental Mil-Std 810; IP-x3 per IEC529.
Dimensions (H x W x D in vertical orientation) 406 x 369 x 483 mm(16.0 x 14.5 x 19.0 in)
Net Weight (each) 16.3 kg (36.0 lb)
Optional Accessories M10 x 35 mm forged shoulder eyebolts with washers.
Nominal LF Driver Impedance 8 ohms
