JBL ASB7118 - Ultra Long Excursion High Power Single 18 Inch Subwoofer Black

Product Code: JBL ASB7118-BK

Key Features
Ultra High-Power 18 Subwoofer System. . 2269H Differential Drive® Vented Gap woofer, 4 dual voice coil dual gap, neodymium magnet. Multiply hardwood enclosure with DuraFlex finish and 14-gauge steel grille. Sixteen M10 suspension points. Available in Black and White. Priced as each.
$10,848.53 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time 8-12 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

Ultra Long Excursion High Power Single 18" Subwoofer

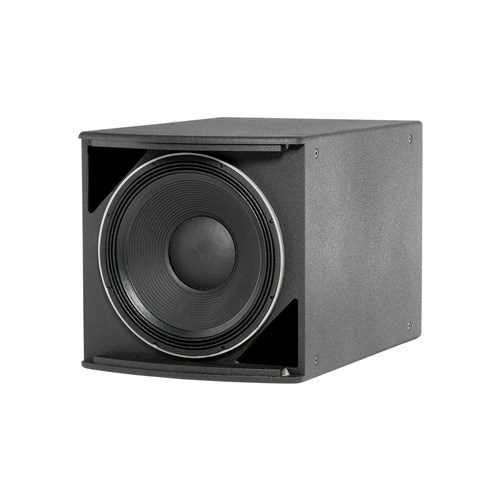

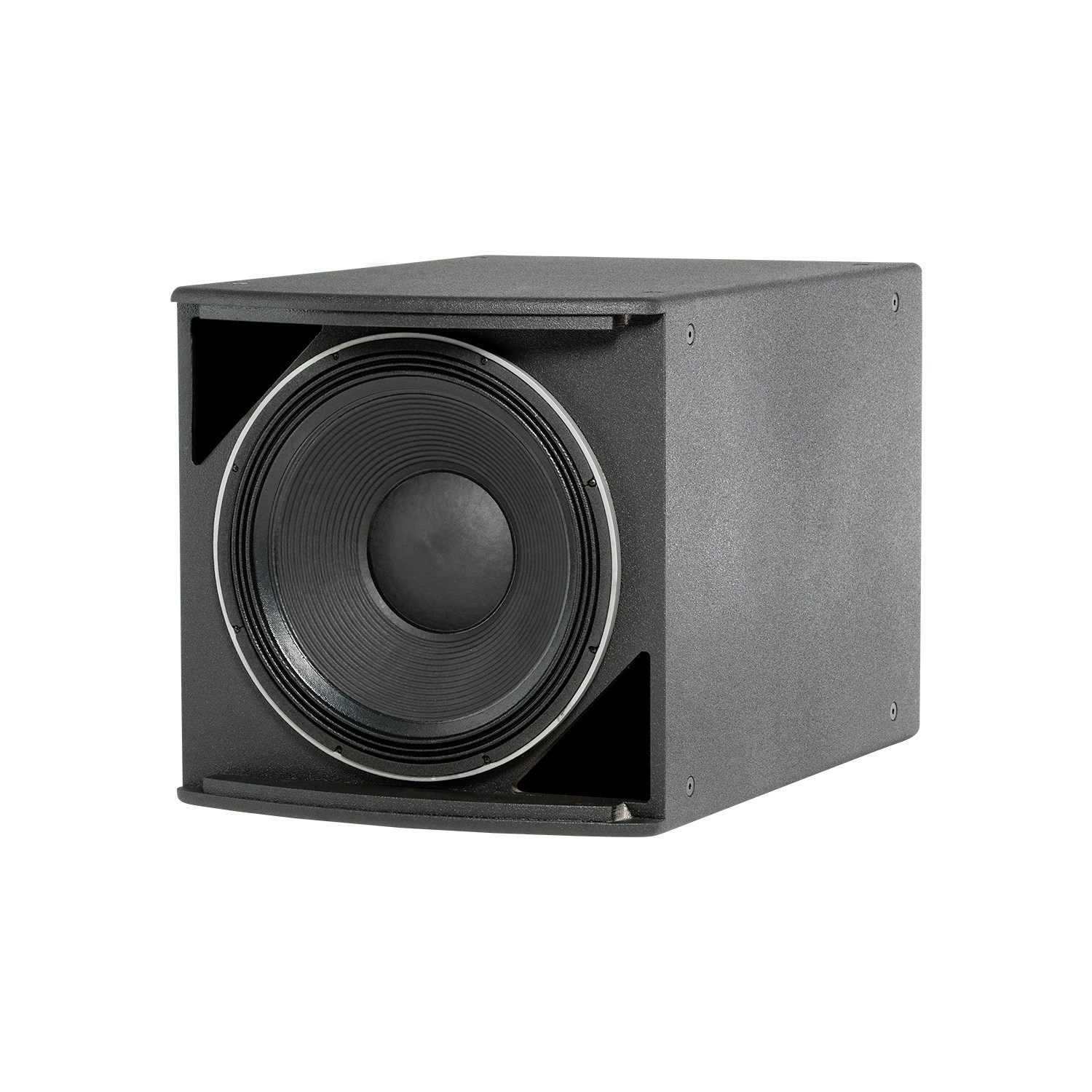

The ASB7118 is a high power, lightweight front-loaded vented subwoofer enclosure housing JBL's exclusive 2269H Ultra Long Excursion 18" Differential Drive® woofer. This woofer features neodymium magnet, dual voice coils and dual gaps, JBL's exclusive Vented Gap Cooling™ and ultra robust composite cone for high excursion and extra long life. Woofer is capable of a peak-to-peak maximum excursion of 89 mm (3.5").

Features

  • 2269H 18" Differential Drive® dual voice coil dual gap, neodymium magnet transducer
  • 2000 watts continuous pink noise,
    8000 watts peak power handling capacity
  • Ultra Long Excursion
  • Large vent area for high output with low distortion
  • For ground-stacked or suspended applications in stand-alone arrays or in combination with other
    AE Series products
    • Warranty

    We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

    Trade Terms
    This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
    Frequency Range (-10 dB) 22 Hz - 1 kHz
    Frequency Response ( 3 dB) 34 Hz - 1 kHz
    Transducer Power Rating 2000 W (8000 W peak), 2 hrs
    Long-Term System Power Rating 1200 W (4800 W peak), 100 hrs.
    Maximum SPL (1m) 25 Hz - 200 Hz: 129 dB-SPL cont avg (135 dB peak)
    System Sensitivity 25 Hz - 200 Hz: 96 dB-SPL, 1W (2.83V) @ 1m
    Nominal Impedance 8 ohms
    Low Frequency Driver 1 x 2269H, 460 mm (18 in) dia., 100 mm (4 in) Dual Coil Dual Gap neodymium Differential Drive VGC driver
    Enclosure Rectangular cabinet, 16 mm (5/8 in) exterior grade 11-ply birch plywood
    Suspension Attachment 16 points (4 top, 4 bottom, 4 each side) M10 threaded hardware
    Finish Black DuraFlex finish. White available upon request.

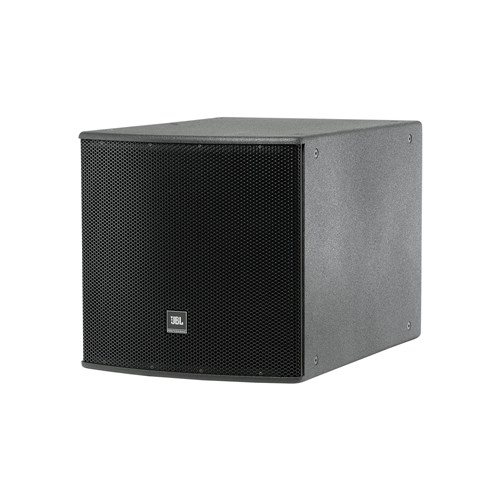

    Grille Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.
    Input Connector Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.
    Environmental Specifications Mil-Std 810; IP-x3 per IEC529.
    Dimensions (H x W x D invertical cabinet orientation) 546 x 560 x 815 mm(21.5 x 22.0 x 32.1 in)
    Net Weight 42.9 kg (94.5 lb)
    Optional Accessories M10 x 35 mm forged shoulder eyebolts with washers.

    Accessories

    JBL 2290000901 Kit Sp/Vs Set Of Three M10 X 35Mm Forged Shoulder Steel Ey
    JBL 2290000901 Kit Sp/Vs Set Of Three M10 X 35Mm Forged Shoulder Steel Ey JBL 229-00009-01
    In Stock
    $136.60 (EA)
    Increase value Decrease value View Product
