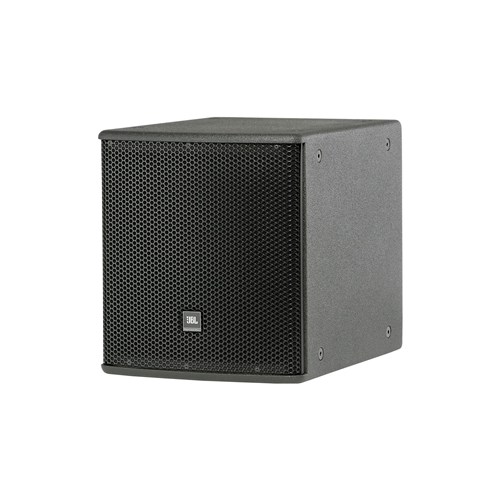

JBL ASB6112BK - Ultra Compact High-Power Single 12 Inch Subwoofer - Black

Product Code: JBL ASB6112-BK

Key Features
Ultra Compact High-Power 12 Subwoofer System. 2263H Differential Drive® woofer, 3 dual voice coil dual gap, neodymium magnet. Multiply hardwood enclosure with DuraFlex finish and 14-gauge steel grille. Sixteen M10 suspension points. Available in Black or White. Priced as each.
$4,974.04 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

Compact High Power Single 12" Subwoofer

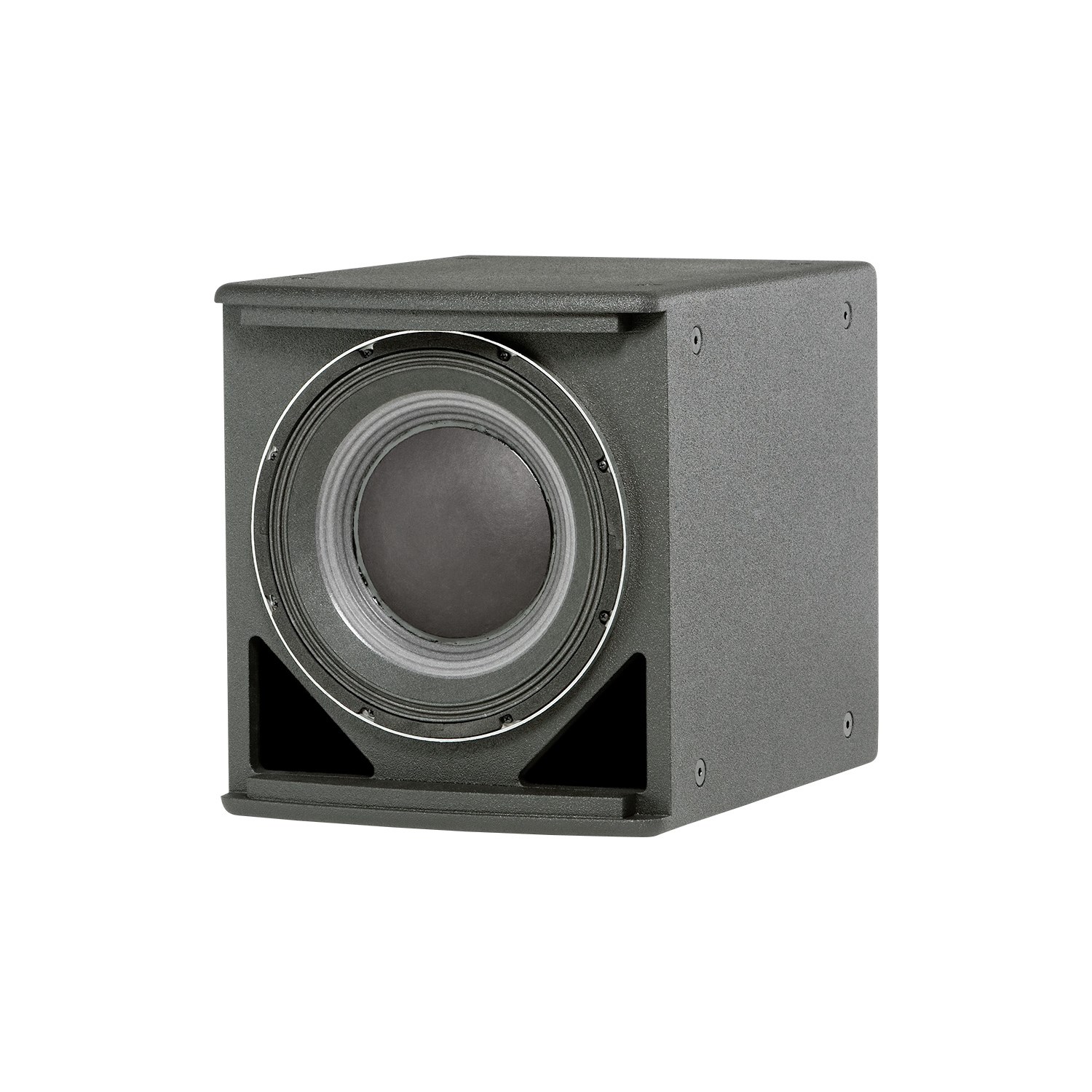

The ASB6112 is a high power, lightweight front-loaded vented subwoofer enclosure housing JBL’s 2263H Differential Drive® dual coil dual gap 12" woofer. This woofer features neodymium magnet and ultra robust cone for extra long life.

Features

  • 2263H 12" Differential Drive® dual voice coil dual gap, neodymium magnet transducer
  • 1000 watts continuous pink noise,
    4000 watts peak power handling capacity
  • Large vent area for high output with low distortion
  • For ground-stacked or suspended applications in stand-alone arrays or in combination with other AE Series products
Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Frequency Range (-10 dB) 35 Hz 1 kHz
Frequency Response ( 3 dB) 43 Hz 1 kHz
Transducer Power Rating 1000 W (4000 W peak), 2 hrs.
Long-Term System Power Rating 700 W (2800 W peak), 100 hrs.
Maximum SPL (1m) 40 Hz - 300 Hz: 126 dB-SPL cont avg (132 dB peak)
System Sensitivity 40 Hz - 300 Hz: 96 dB-SPL,1W (2.83V) @ 1m
Nominal Impedance 8 ohms
Low Frequency Driver 1 x 2263H, 305 mm (12 in) dia., 75 mm (3 in) Dual Coil Dual Gap neodymium Differential Drive driver
Enclosure Rectangular cabinet, 16 mm (5/8 in) exterior grade 11-ply birch plywood
Suspension Attachment 16 points (4 top, 4 bottom, 4 each side), M10 threaded hardware
Finish Black DuraFlex finish.White available upon request.
Grille Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.
Input Connector NL4 Neutrik Speakon and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through.
Environmental Specifications Mil-Std 810; IP-x3 per IEC529.
Dimensions (H x W x D invertical cabinet orientation) 406 x 369 x 483 mm(16.0 x 14.5 x 19.0 in)
Net Weight 16.3 kg (36.0 lb)
Optional Accessories M10 x 35 mm forged shoulder eyebolts with washers.
