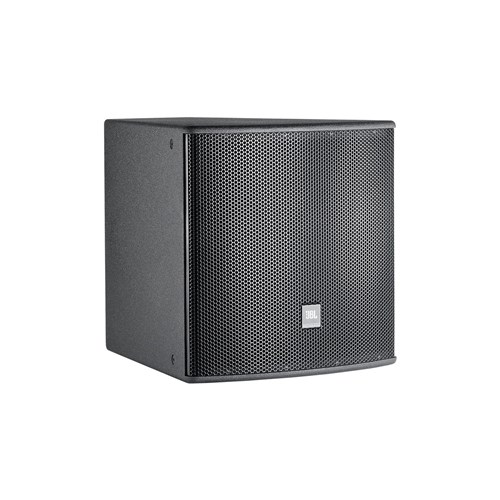

JBL AL7115 - High Power Single 15 Inch Low Frequency Loudspeaker Black

Product Code: JBL AL7115-BK

Key Features
High Power 1 x 15" Low Frequency Loudspeaker. 1 x 15" 2265H Differential Drive® woofer. Available in Black or White (-WH). Priced as each. Suspension Eyebolts Not Included. Arrays With AM7200 and Mid-High Loudspeakers using PAF-3K Planar Array Frame Kit.
$5,624.38 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

High Power Single 15" Low Frequency Loudspeaker

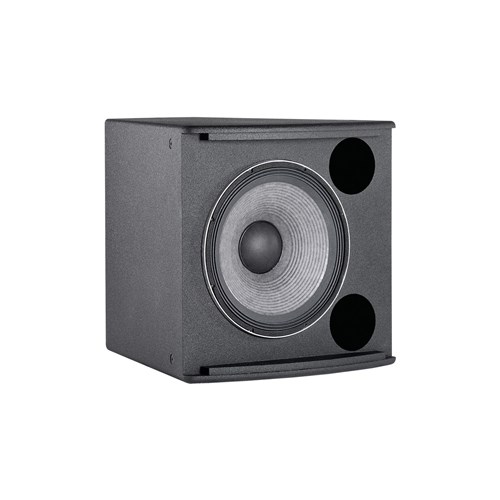

AL7115 is a high power, low frequency loudspeaker system comprised of one 380 mm (15 in) Differential Drive® low frequency driver in a front-loaded, vented configuration. The trapezoidal cabinet is fitted with M10 threaded suspension points. Pre-engineered array bracketry is available. AL7115 is part of JBL's AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of applications.

Features

  • 1 x 15" 2265H Differential Drive® Low- Frequency Driver.
  • Large vent area for high output with low distortion.
  • Arrays with various AE Series mid-high frequency and compact 2-way models (see AE Series Array Guide).

    • Applications

  • Performing arts facilities
  • Theatrical sound design
  • Auditoriums
  • Houses of worship
  • Live clubs
  • Dance-clubs/discotheques
  • Sports facilities
  • Themed entertainment venues
    • Warranty

    We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

    Frequency Range (-10 dB) 40 Hz 4.2 kHz
    Frequency Response ( 3 dB) 47 Hz - 3.0 kHz
    Transducer Power Rating (AES) 1000 W (4000 W peak), 2 hrs
    Long-Term System Power Rating (IEC) 600 W (2400 W peak), 100 hrs
    Maximum SPL 50 Hz 125 Hz: 127 dB-SPL cont avg (133 dB peak) 125 Hz 800 Hz: 126 dB-SPL cont avg (132 dB peak)
    System Sensitivity(dB-SPL, 1W @ 1m) 50 Hz 125 Hz: 97 dB125 Hz 800 Hz: 97 dB
    Nominal Impedance 8 ohms
    Low Frequency Driver 1 x JBL 2265H 380 mm (15 in) Differential Drive driver with 75 mm (3 in) dual voice coil
    Enclosure Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply Finnish birch plywood
    Suspension Attachment 13 points (3 top, 3 bottom, 2 each side, 3 rear), M10 threaded hardware
    Finish Black DuraFlex finish.White available upon request.
    Grille Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.
    Input Connector NL4 Neutrik Speakon and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through.
    Environmental Specifications Mil-Std 810; IP-x3 per IEC529
    Dimensions (H x W x D in vertical cabinet orientation) 548 x 561 x 657 mm(21.6 x 22.1 x 25.9 in)
    Net Weight 25.9 kg (57 lb)
    Optional Accessories M10 x 35 mm forged shoulder eyebolts with washers. Optional planar array frame kit. See AE Series Bracket Guide.
