JBL AL7115 - High Power Single 15 Inch Low Frequency Loudspeaker with Weather Protection Treatment

Product Code: JBL AL7115-WRC

Key Features
With Weather Protection Treatment. Refer to WEATHER RESISTANT Configurations for AE, PD & VLA Series document for details regarding WRC/WRX models. WRC & WRX enclosures are larger than the standard enclosure. Visit www.jblpro.com to download AE Series 2D WRC & WRX drawings. PAF kits do not fit WRC & WRX enclosures. Standard color is GRAY. Available in Black (-BK) & White (-WH).
Enquire Now
Qty Each (inc GST) Each
Estimated Lead time Contact Us
  • Features
  • Overview
  • Technical Specs
  • Documents

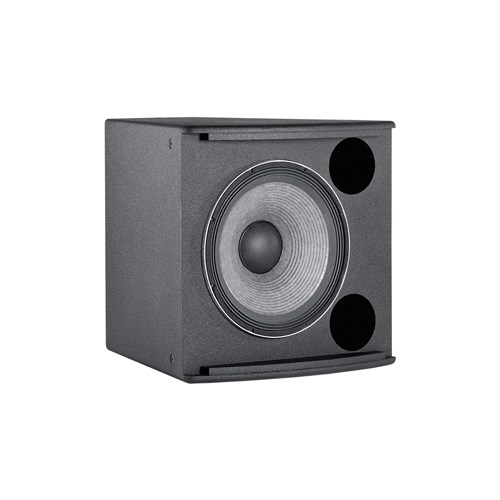

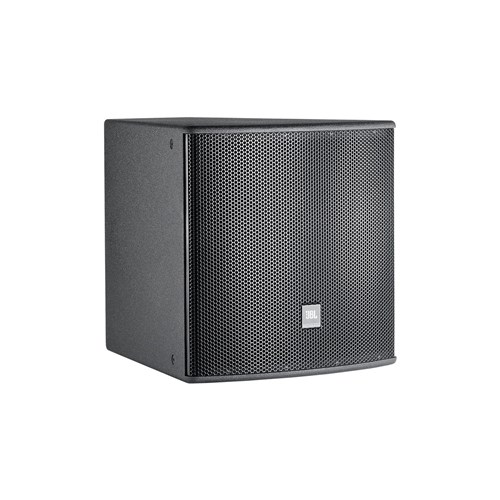

High Power Single 15" Low Frequency Loudspeaker

AL7115 is a high power, low frequency loudspeaker system comprised of one 380 mm (15 in) Differential Drive® low frequency driver in a front-loaded, vented configuration. The trapezoidal cabinet is fitted with M10 threaded suspension points. Pre-engineered array bracketry is available. AL7115 is part of JBL's AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of applications.

Features

  • 1 x 15" 2265H Differential Drive® Low- Frequency Driver.
  • Large vent area for high output with low distortion.
  • Arrays with various AE Series mid-high frequency and compact 2-way models (see AE Series Array Guide).

    • Applications

  • Performing arts facilities
  • Theatrical sound design
  • Auditoriums
  • Houses of worship
  • Live clubs
  • Dance-clubs/discotheques
  • Sports facilities
  • Themed entertainment venues
    • Warranty

    We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

    Trade Terms
    This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
    Frequency Range (-10 dB) 40 Hz 4.2 kHz
    Frequency Response ( 3 dB) 47 Hz - 3.0 kHz
    Transducer Power Rating (AES) 1000 W (4000 W peak), 2 hrs
    Long-Term System Power Rating (IEC) 600 W (2400 W peak), 100 hrs
    Maximum SPL 50 Hz 125 Hz: 127 dB-SPL cont avg (133 dB peak) 125 Hz 800 Hz: 126 dB-SPL cont avg (132 dB peak)
    System Sensitivity(dB-SPL, 1W @ 1m) 50 Hz 125 Hz: 97 dB125 Hz 800 Hz: 97 dB
    Nominal Impedance 8 ohms
    Low Frequency Driver 1 x JBL 2265H 380 mm (15 in) Differential Drive driver with 75 mm (3 in) dual voice coil
    Enclosure Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply Finnish birch plywood
    Suspension Attachment 13 points (3 top, 3 bottom, 2 each side, 3 rear), M10 threaded hardware
    Finish Black DuraFlex finish.White available upon request.
    Grille Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.
    Input Connector NL4 Neutrik Speakon and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through.
    Environmental Specifications Mil-Std 810; IP-x3 per IEC529
    Dimensions (H x W x D in vertical cabinet orientation) 548 x 561 x 657 mm(21.6 x 22.1 x 25.9 in)
    Net Weight 25.9 kg (57 lb)
    Optional Accessories M10 x 35 mm forged shoulder eyebolts with washers. Optional planar array frame kit. See AE Series Bracket Guide.
