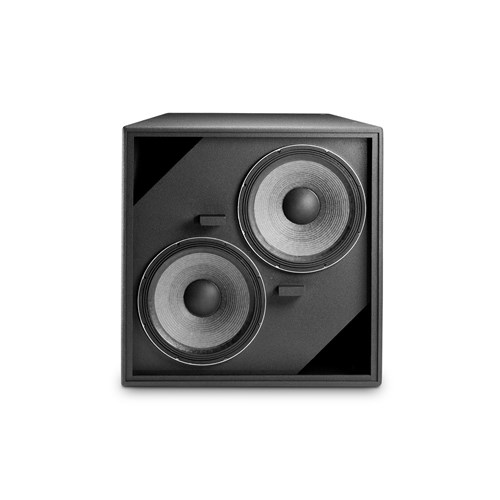

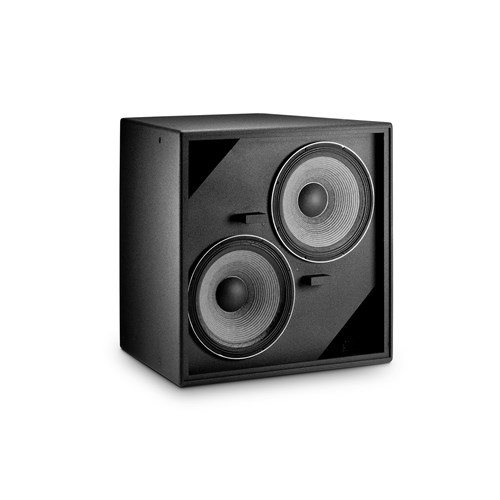

JBL PD525S - High Output Dual 15 Inch Low-Frequency Subwoofer Loudspeaker Black

Product Code: JBL PD525S

Key Features
Dual 15" subwoofer system, 2275H driver, 75mm (3 in) voice coil, 4-ohm nominal impedance.
$7,796.93 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

High Output, Dual 15" Low-Frequency / Subwoofer Loudspeaker

The PD525S is a high power low frequency loudspeaker comprised of two 380 mm (15 in) Dual Coil - Dual Gap Differential Drive® low frequency drivers in a front-loaded, vented configuration. The trapezoidal cabinet is fitted with M10 threaded suspension points.

Features

  • Two high power 380 mm (15 in) low frequency drivers
  • Low frequency extension to 40 Hz
  • Enclosure dimensions compatible with all PD500 Series models

Applications

  • Sports Facilities
  • Performance spaces
  • Auditoriums
  • Worship facilities

Please Note: Sale Pricing is only available on our current stock. Future stock of this product is subject to our regular pricing. For any enquiries regarding pricing please contact us on 1800 00 77 80.

Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
Frequency Range (-10 dB) 28 Hz to 3.8kHz
Frequency Response ( 3 dB) 40 Hz to 1.1kHz
Transducer Power Ratings (AES) 2000 W (8000 W peak) 2 hrs
System Power Rating TBD
Sensitivity (1W @ 1m) 102 dB (avg 40-1kHz)
Maximum SPL 135 dB cont (141 dB peak)
Input Modes Drivers Parallel/Drivers Discrete
Nominal Impedance 4 ohms in parallel-drive mode, 2 x 8 ohms in discrete drive mode
Low Frequency Driver 2 x JBL 2275H 380 mm (15 in) Dual Coil - Dual Gap Differential Drive drivers with 75 mm (3 in) voice coils.
Enclosure Trapezoidal with 10 degree side angles, 18 mm exterior grade 11-ply Finnish birch plywood.
Suspension Attachment 20 points (5 top, 5 bottom, 4 each side, 2 rear), M10 threaded hardware (eyebolts NOT included, see optional accessories).
Finish Black DuraFlex finish. White (-WH) available upon request.
Optional Weather Resistant Versions WRC for outdoor placement where the loudspeaker will be sheltered from direct exposure to the elements. WRX for direct exposure or extreme environments, such as tropical or beach, or in areas with salt air, extreme high humidity or rapid changes in temperature. See WRC/WRX configuration sheet for details.
Grille Powder coated 14 gauge perforated steel, acoustically transparent backing
Input Connectors CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs.
Environmental Specifications Mil-Std 810; IP-x3 per IEC529. For higher environmental ratings, use WRC or WRX.
Dimensions (H x W x D in vertical orientation) 782.0 x 783.0 x 670.0 mm (30.8 x 30.8 x 26.4 in)
Net Weight 53.4 kg (118 lb)
Optional Accessories 229-00009-01 kit of three M10 x 35 mm forged shoulder steel eyebolts.
