Bittree Flush-Mount Modular Keystone Panel - 1x24 Jacks 1 RU Cat 6 RJ45 to ID 110 1 Designation Strip

Product Code: DSKP124B-C6P

Key Features

FLUSH MOUNT, 1 ROW OF 24 JACKS, 1 RU, CAT 6, RJ45 TO ID 110, 1 DESIGNATION STRIP

Enquire Now
Qty Each (inc GST) Each
Estimated Lead time 2-3 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

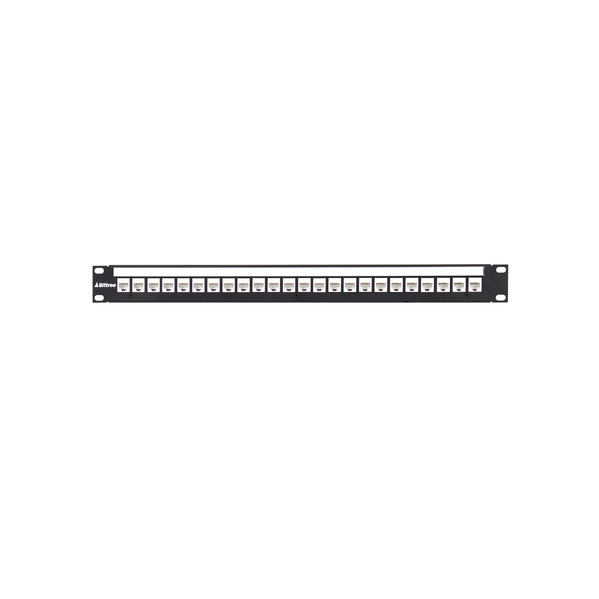

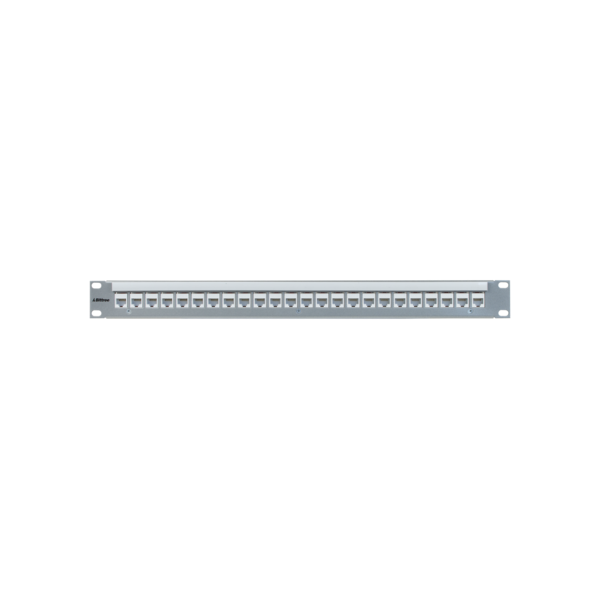

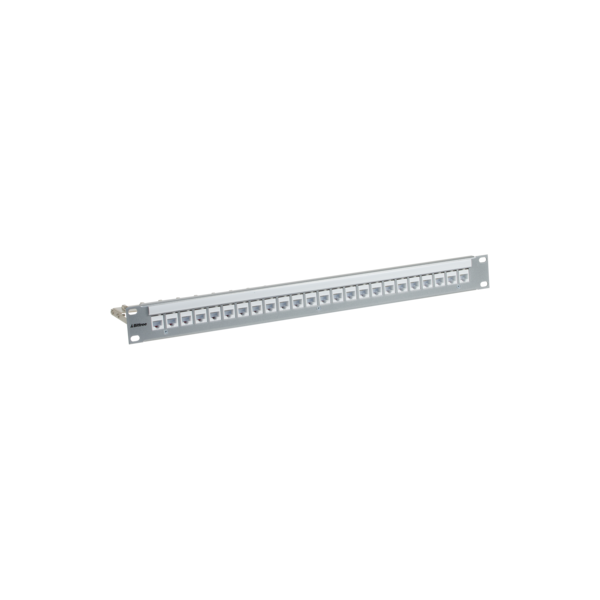

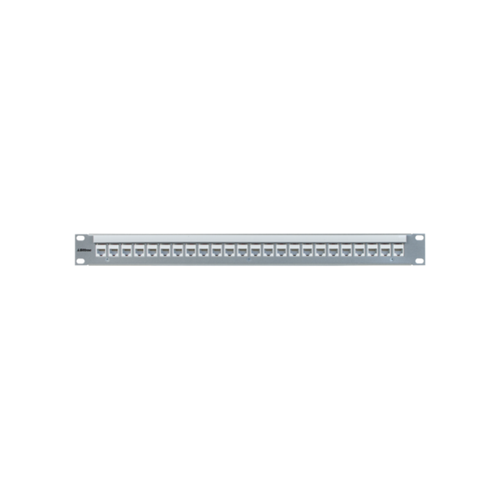

Bittree® Flush-Mount Modular Keystone Panel in 1 RU with 1x24 Jack Configuration



Panel and jack modules are packaged separately for simplified termination/integration

CAT 6 Jack Properties:
• RJ45 jack to 110 IDC (punchdown) interface, unshielded
• Exceeds ANSI/TIA-568-C.2 Category 6 connecting hardware requirements
• High-impact PBT resin housing and PC termination cap, UL 94 V-2
• Nickel-plated phosphor bronze contacts with gold over plate
• Integrated TIA-568A/B color wiring diagram
• Accommodates 22-24 AWG solid wire

Panel Features:
• Keystone jacks mount flush with the surface of the panel
• Accommodates high-density (HD) keystone inserts with up to a 17 mm width
• Folded steel front panel with a durable black powder-coat finish

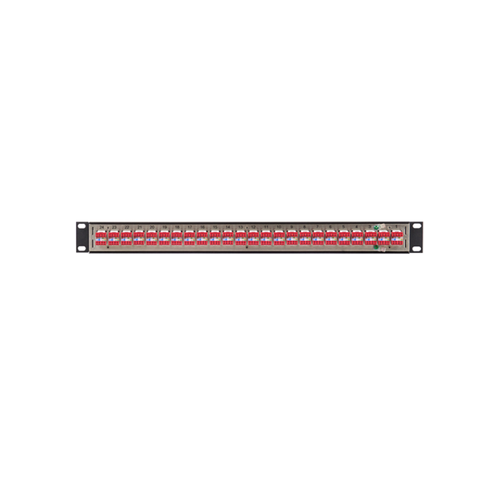

• Nickel-plated rear panel and two 45-degree faston lugs enable bussed and bonded grounding schemes when used with shielded modular jacks

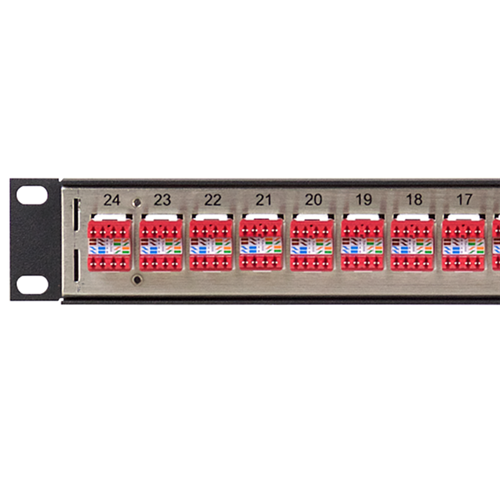

• Silk screened circuit numbering on the rear
• 1 x DS430-10 designation strip on the front (bar and cap design)
• 6" (15.24 cm) deep removable rear lacing bar for cable dressing

Feed-Through and Punchdown 110. Prices of Data Keystone Panels affected by the panel style, type of jack used and the number of rows of jacks Flush-mount style includes lacing bar for enhanced cable organization Accommodates all standard keystone couplers Available in heights of 1 and 2 RU Optional designation strip(s) available on all models Additional configurations available; please contact us for more information.

Warranty

We offer a 5 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
