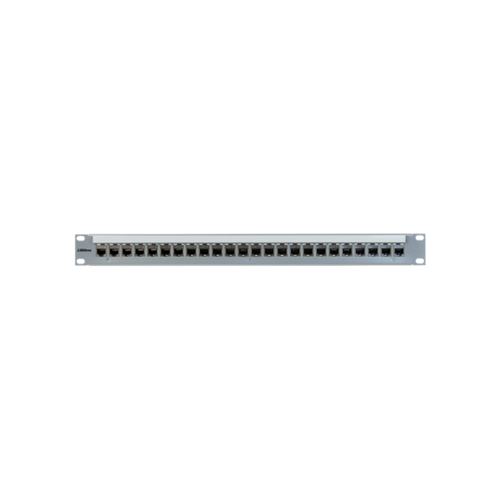

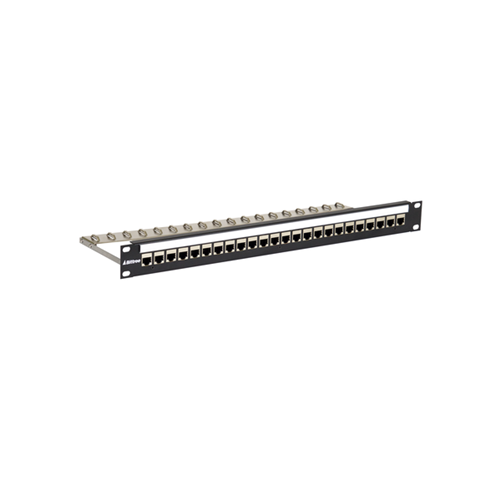

Bittree Flush-Mount Modular Keystone Panel - 1x24 Jacks 1 RU Shielded Cat6 RJ45 to RJ45 1 Designation Strip

Product Code: DSKP124B-C6FS

Key Features
  • FLUSH-MOUNT MODULAR KEYSTONE PANEL
  • CAT 6
  • FEED-THROUGH
  • SHIELDED
  • 1X24
  • 1 RU
Enquire Now
Qty Each (inc GST) Each
Estimated Lead time 2-3 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

Bittree DSKP124BC6FS Flush Mount 1 Row Of 24 Jacks 1 Ru Shielded Cat 6 Rj45 To Rj45

Bittree® Flush-Mount Modular Feed-Through Panel in 1 RU with 1x24 Jack Configuration

Panel and jack modules are packaged separately for simplified termination/integration

Feed-Through and Punchdown 110. Prices of Data Keystone Panels affected by the panel style, type of jack used and the number of rows of jacks Flush-mount style includes lacing bar for enhanced cable organization Accommodates all standard keystone couplers Available in heights of 1 and 2 RU Optional designation strip(s) available on all models Additional configurations available; please contact us for more information.

Warranty

We offer a 5 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.

CAT 6 Jack Properties:
• RJ45 jack to RJ45 jack with shielding for protection from EMI, RFI, and alien crosstalk
• High-impact ABS resin housing and PBT contact holder, UL 94 V-0
• Nickel-plated phosphor bronze contacts with gold over plate
• Shielded connector for protection from EMI, RFI and alien crosstalk

Panel Features:

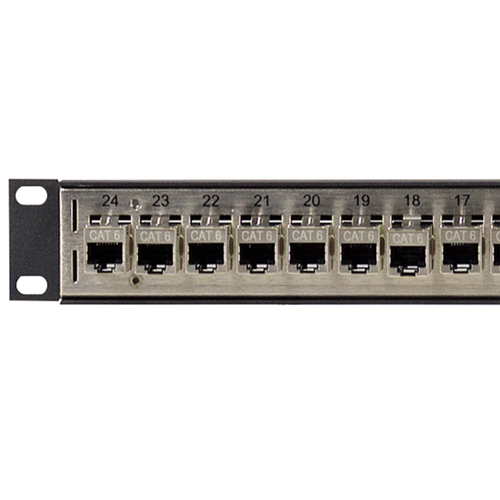

• Keystone jacks mount flush with the surface of the panel
• Accommodates high-density (HD) keystone inserts with up to a 17 mm width
• Folded steel front panel with a durable black powder-coat finish
• Nickel-plated rear panel and two 45-degree faston lugs enable bussed and bonded grounding schemes when used with shielded modular jacks
• Silk screened circuit numbering on the rear
• 1 x DS430-10 designation strip on the front (bar and cap design)

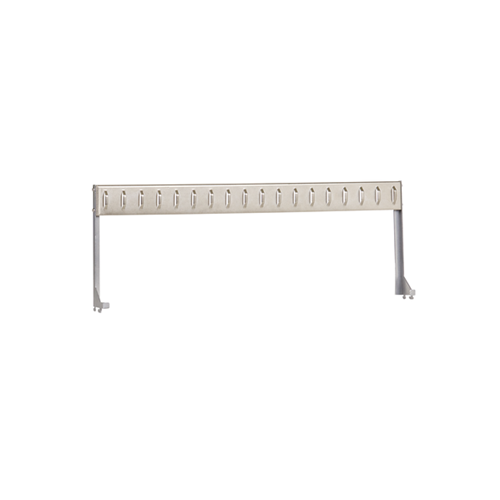

• 6" (15.24 cm) deep removable rear lacing bar for cable dressing

Compliance:
• RoHS Compliance
