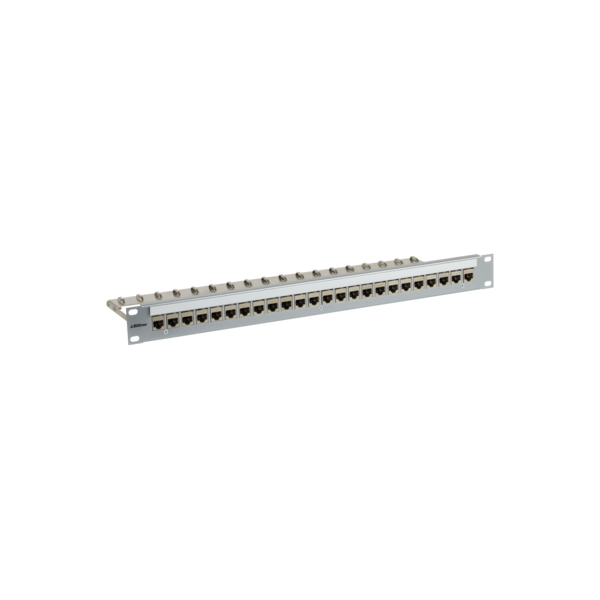

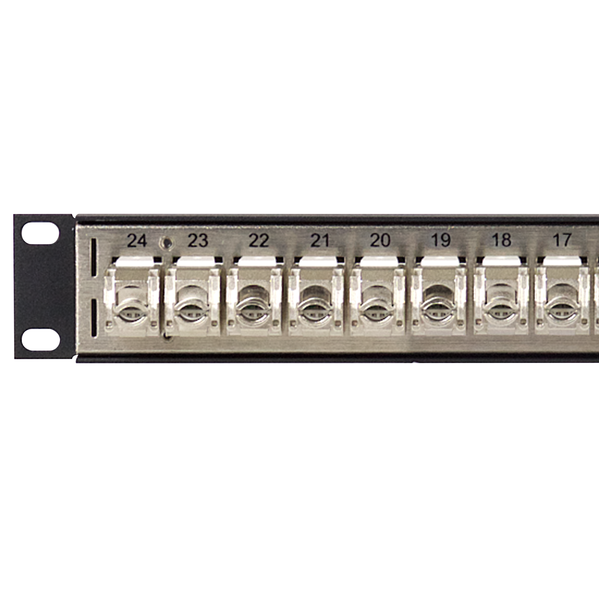

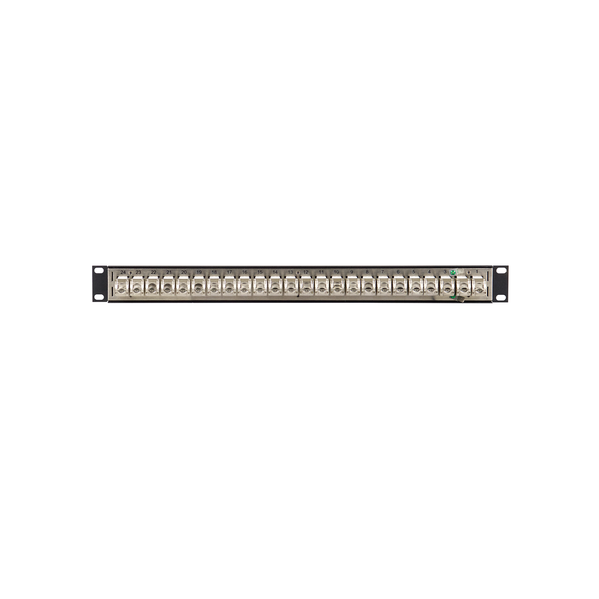

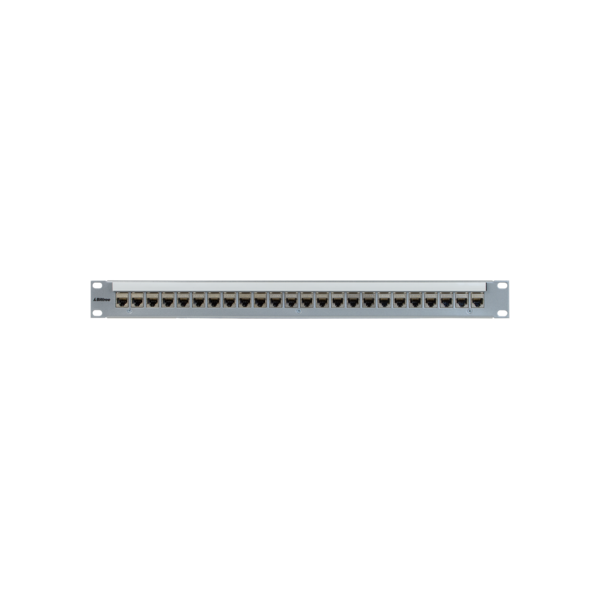

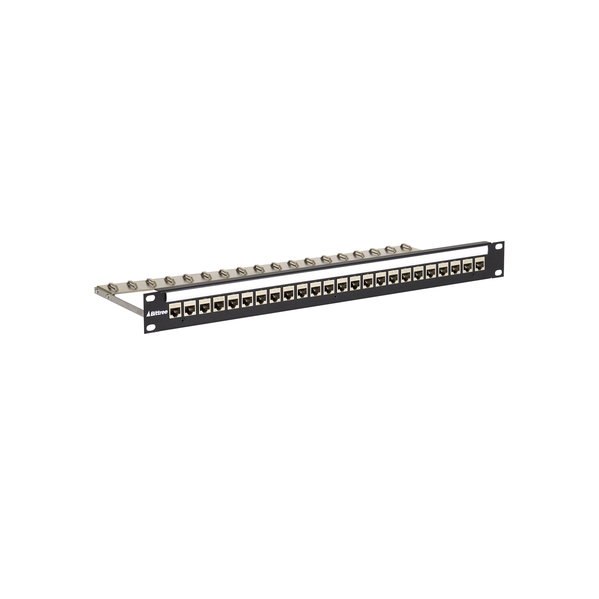

Bittree® Flush-Mount Modular Keystone Panel in 1 RU with 1x24 Jack Configuration• Panel and jack modules are packaged separately for simplified termination/integration
Feed-Through and Punchdown 110. Prices of Data Keystone Panels affected by the panel style, type of jack used and the number of rows of jacks Flush-mount style includes lacing bar for enhanced cable organization Accommodates all standard keystone couplers Available in heights of 1 and 2 RU Optional designation strip(s) available on all models Additional configurations available; please contact us for more information.
We offer a 5 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.
CAT 6 Jack Properties: • RJ45 jack to 110 IDC (punchdown) interface with shielding for protection from EMI, RFI, and alien crosstalk• Exceeds ANSI/TIA-568-C.2 Category 6A requirements• Die-cast nickel-plated zinc clamshell housing• Nickel-plated phosphor bronze contacts with gold over plate• Suppressed internal magnetic coupling up to a bandwidth of 500 MHz• Integrated TIA-568A/B color wiring diagram• Accommodates 23-26 AWG solid wire• Stainless steel internal grounding clip
Panel Features: • Keystone jacks mount flush with the surface of the panel• Accommodates high-density (HD) keystone inserts with up to a 17 mm width• Folded steel front panel with a durable black powder-coat finish• Nickel-plated rear panel and two 45-degree faston lugs enable bussed and bonded grounding schemes when used with shielded modular jacks• Silk screened circuit numbering on the rear• 1 x DS430-10 designation strip on the front (bar and cap design)• 6" (15.24 cm) deep removable rear lacing bar for cable dressing
Compliance:
