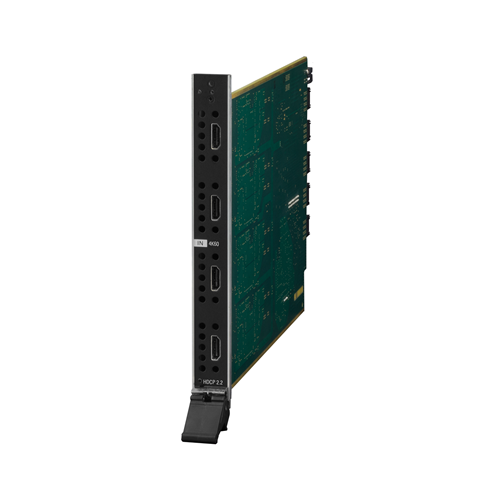

AMX DGX-I-HDMI-4K60 - Enova DGX 4K60 4-4-4 HDMI Input Board

Product Code: AMX FG1061-542

Key Features
The DGX-I-HDMI-4K60 is a 4K60 4:4:4 input board for the Enova DGX 800, Enova DGX 1600, Enova DGX 3200, and Enova DGX 6400, UHD capable and HDCP 2.2 compliant. It has four connections and supports HDMI with embedded audio, DisplayPort++ or DVI signals.
Enquire Now
Qty Each (inc GST) Each
Estimated Lead time Contact Us
  • Features
  • Overview
  • Technical Specs
  • Documents

The DGX-I-HDMI-4K60 is a 4K60 4:4:4 input board for the Enova DGX 800, Enova DGX 1600, Enova DGX 3200, and Enova DGX 6400. The board is Ultra High Definition (UHD) capable and HDCP 2.2 compliant, with support for full 4K60 4:4:4 video and High Dynamic Range (HDR) for optimum image quality and full bandwidth, pixel-for-pixel image reproduction without compression or chroma subsampling. It has four connections and supports HDMI with embedded audio, DisplayPort++ or DVI signals.

The Enova DGX HDMI Input Board is ideal for applications where source devices are located within 7 meters of the Enova DGX Digital Media Switcher, providing 4K60 4:4:4 HDMI routing for video wall processors, divisible rooms, and more without the need for external transmitters.

Features

  • 4K60 4:4:4 Support  Experience pixel-for-pixel video reproduction with full bandwidth 4K60 images with full 4:4:4 color space
  • HDCP 2.2 Support with InstaGate Pro® Technology  Support the latest entertainment devices and enjoy hassle-free matrix switching to all compliant displays.
  • High Dynamic Range (HDR)  Dramatically improve the viewing experience with broader color range for improved clarity
  • Hot Swappable  Easily add or replace I/O boards at any time after deployment - the system automatically recognizes the new configuration and activates the boards
  • Surround Sound Support  Pass through high definition surround sound including Dolby Atmos, Dolby TrueHD, Dolby Digital, Dolby Digital Plus, DTS-HD Master Audio, DTS, and 2-channel through 8-channel L-PCM

Harman Professional University certifications required to purchase this product. Please contact your Account Manager to learn more.

Warranty

We offer a 3 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Connectors 4 HDMI Type A Female Ports
Compatible Formats HDMI, HDMI 2.x, HDCP, HDCP 2.2, DVI
Signal Type Support HDMI, HDMI 2.x, DVI-D (Single Link With HDMI Cable Adapter), DisplayPort ++ (Input Only, With HDMI Cable Adapter)
Maximum Resolution Support 3840x2160p@24/25/30/60 Hz @ 4:4:4, 4096x2160p@24/25/30/60 Hz @ 4:4:4 (when used with compatible Enova DGX 100 Series enclosures)
Audio Format Support Dolby TrueHD, Dolby Digital, DTS-HD Master Audio, DTS, 2 CH through 8 CH L-PCM, Dolby Digital and DTS support up to 48 kHz, 5.1 channels
FG Numbers FG1061-542
