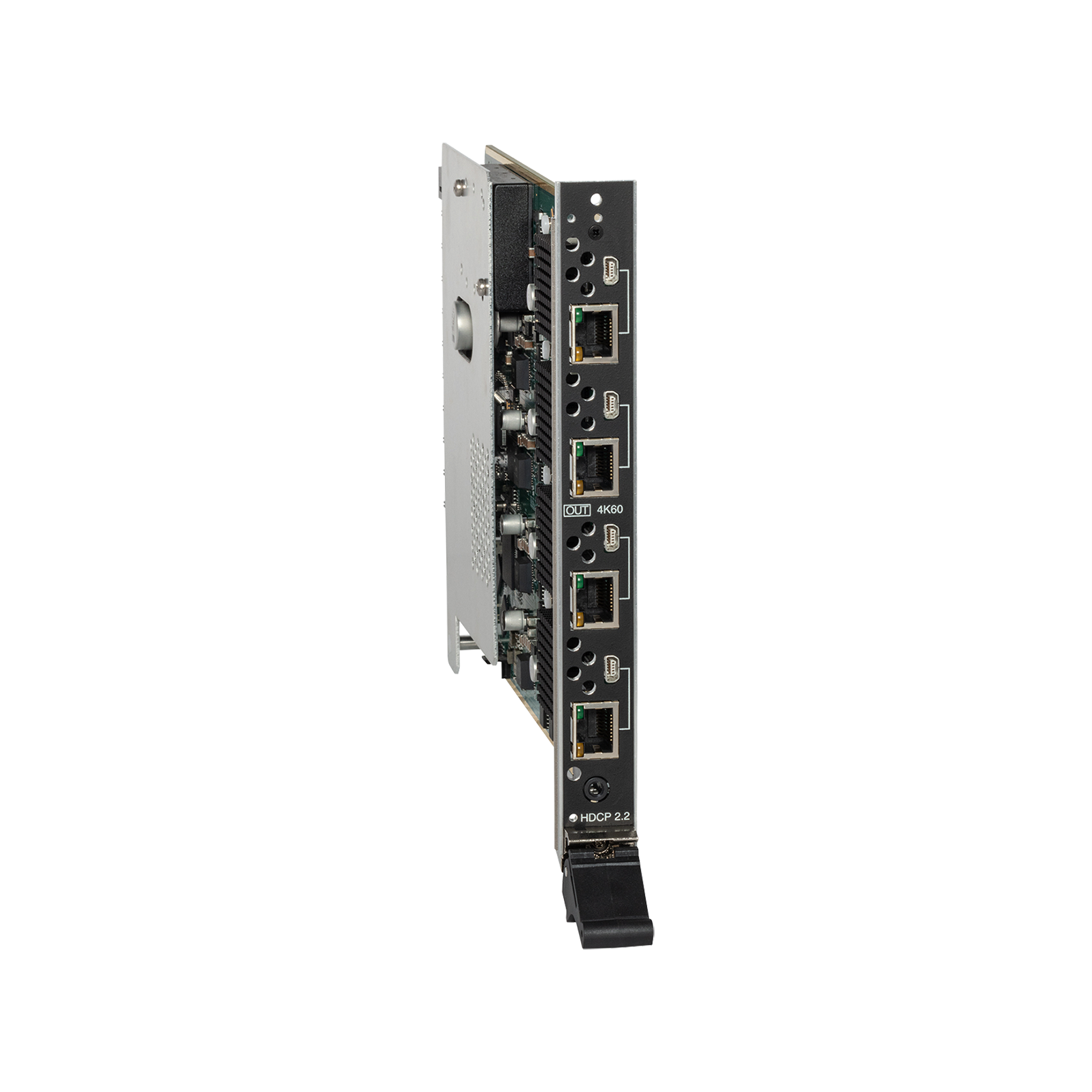

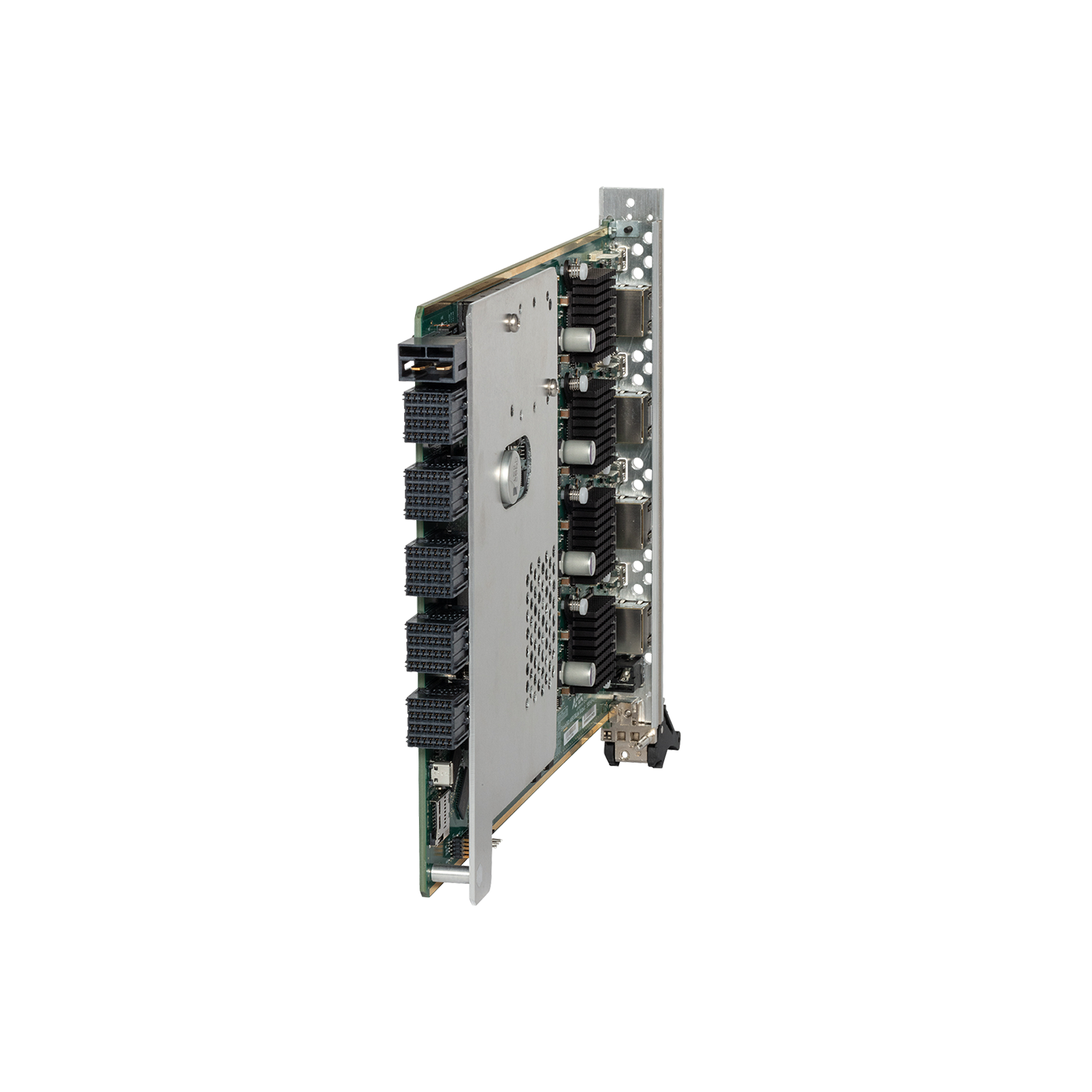

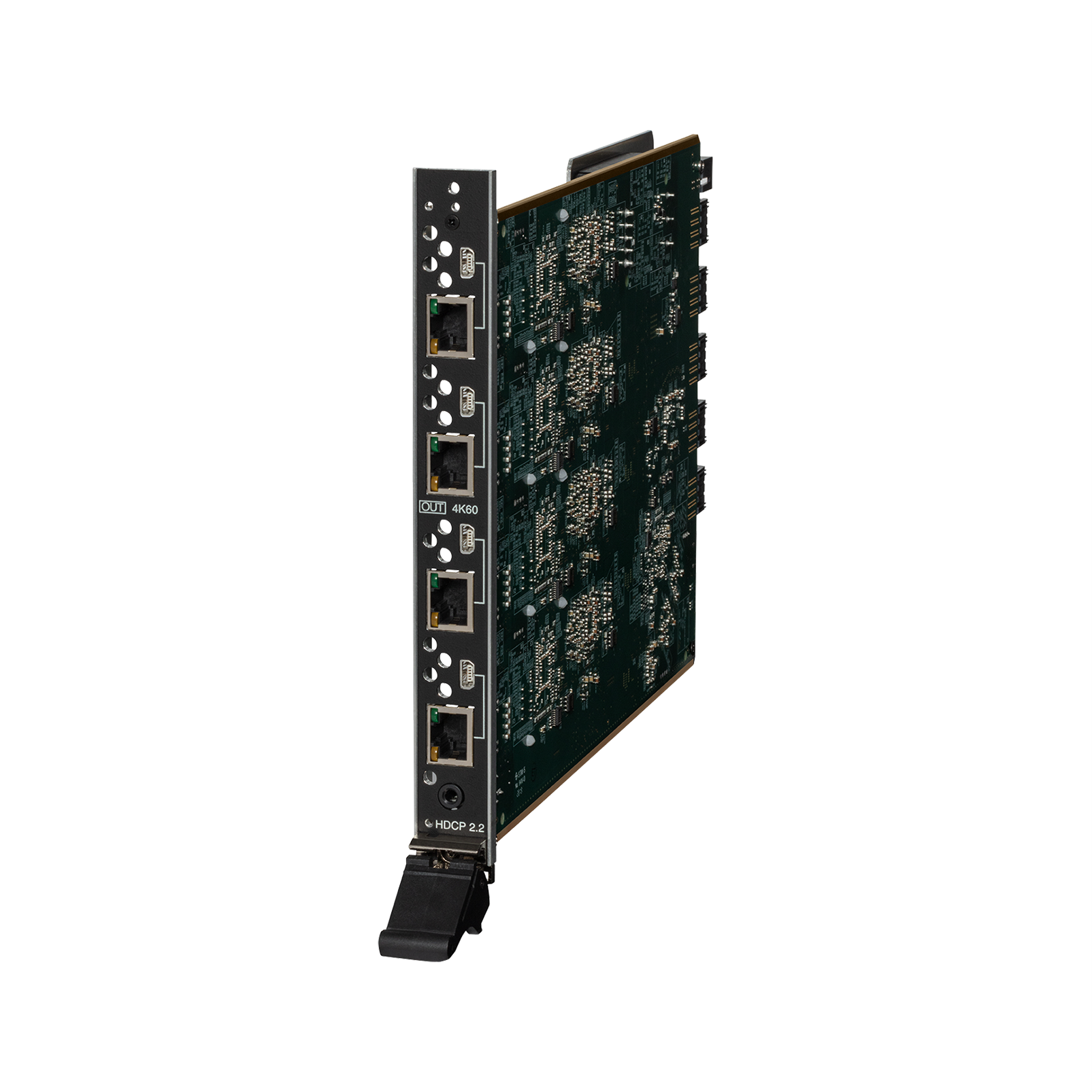

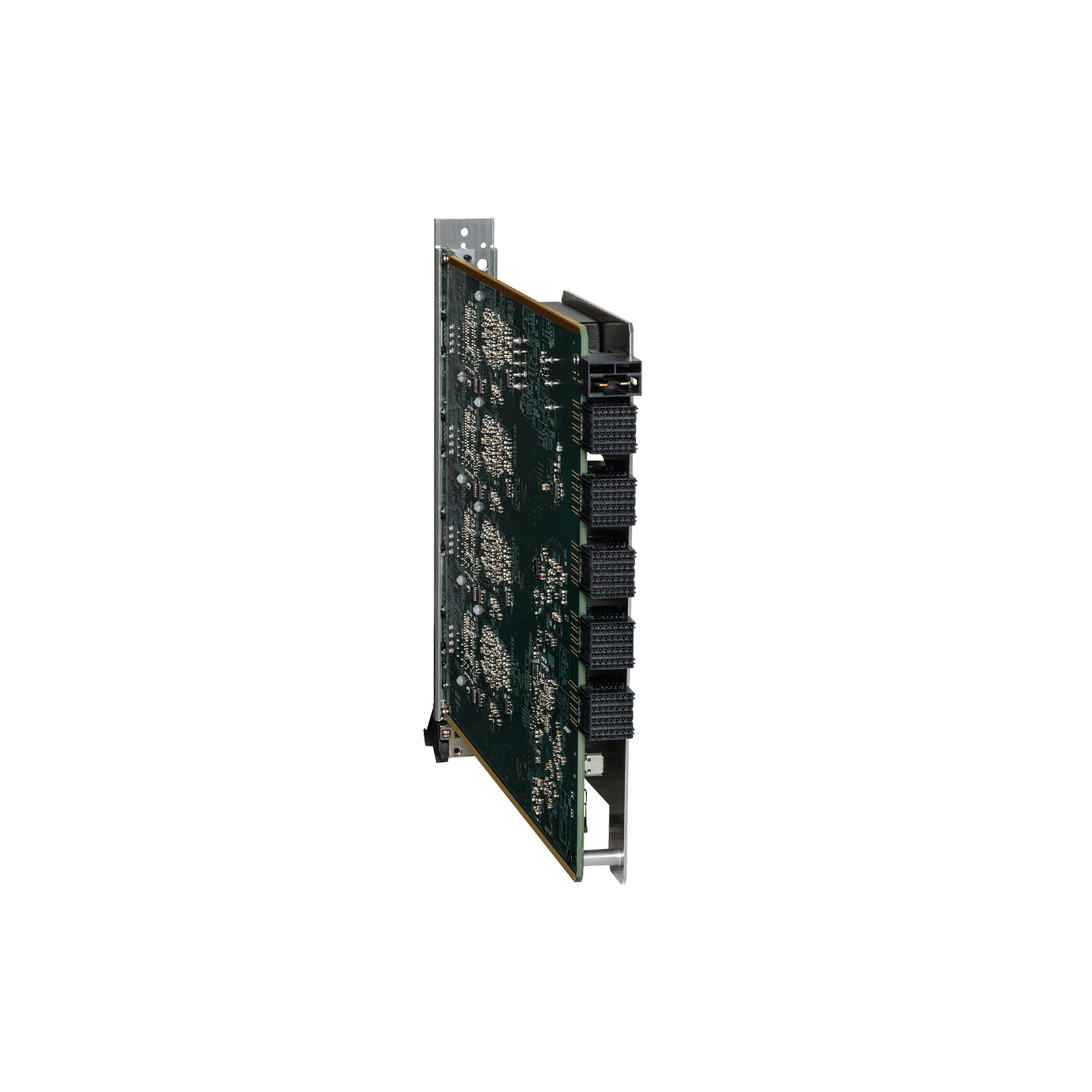

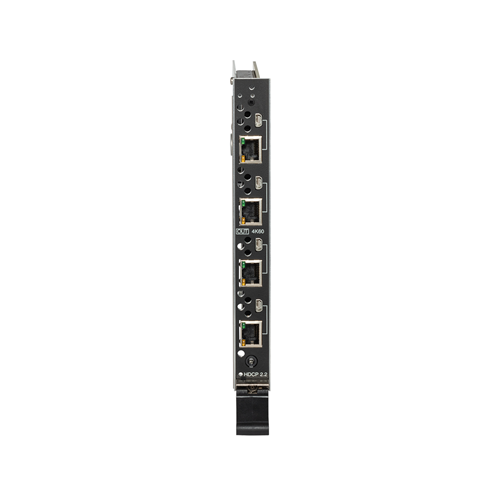

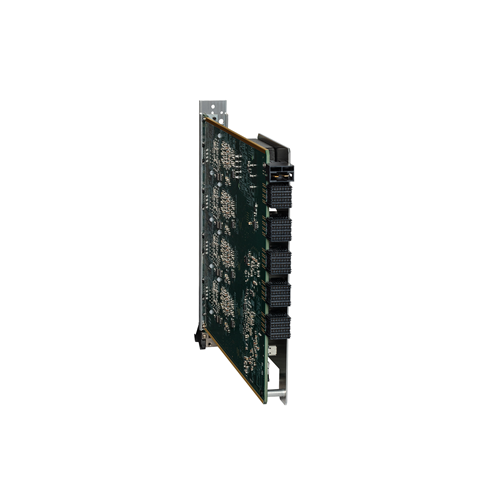

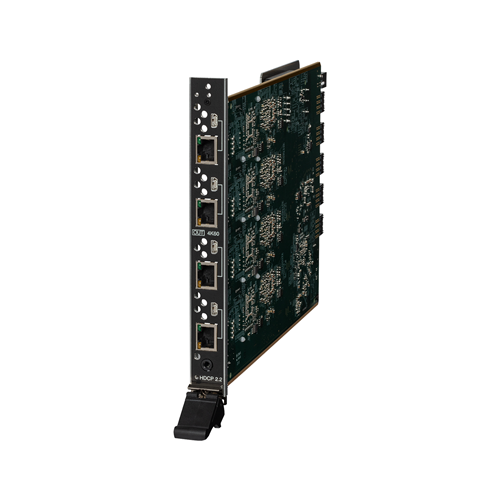

AMX DGX-O-DXL-4K60 - Enova DGX DXLink 4K60 Twisted Pair Output Board

Product Code: AMX FG1061-582

Key Features

The AMX Enova DGX DXLink 4K60 Output Board supports HDMI 2.0 features and is HDCP 2.2 compliant with support for full 4K60 4:4:4 video and High Dynamic Range (HDR) for optimum image quality and pixel-for-pixel image reproduction without chroma subsampling. It has four connections per board designed to transmit audio and video to DXLink Twisted Pair Receivers while passing bi-directional control, USB 2.0, and Ethernet signals over one Cat6, Cat6A or Cat7 twisted pair cable. The AMX DGX-O-DXL-4K60 Output Board is compatible with the Enova DGX 800, Enova DGX 1600, Enova DGX 3200, and Enova DGX 6400 enclosures. DXLink Power is available from the DXLink Output Board to power DXLink Twisted Pair Receivers.

Enquire Now
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

Features

  • HDMI 2.0 4K60 4:4:4 Over Distance - Ideal for users running critical viewing applications such as operations centers requiring transport which use the full fidelity of their displays
  • High Dynamic Range (HDR) and Deep Color Support Support for HDR10 and 36-bit Deep Color.
  • HDCP 2.2 - Supports the latest video standards to realize the full capabilities of their HDMI interfaces.

  • USB 2.0 - High-speed USB 2.0 data from devices like web cameras and storage devices are transmitted without the need for separate cables.

  • As Always, Just One Cable  Just like all current AMX Enova DGX audio and video transport solutions, high level resolution and fidelity transport is achieved over a single twisted pair cable in comparison to other products that may require dual cable runs, typically adding significant cost.
  • Twisted Pair Cable  Save time and effort in installation by leveraging cost effective twisted pair cable.
  • Hot Swappable  Easily add or replace I/O boards at any time after deployment - the system automatically recognizes the new configuration and activates the boards.
  • HDBaseT Compatible - Compliant with the HDBaseT standard, making them compatible with third party HDBaseT displays and projectors.

Harman Professional University certifications required to purchase this product. Please contact your Account Manager to learn more.

Warranty

We offer a 3 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Connectors (4) RJ-45 Ports, (4) Micro-USB AB Ports
Compatible Formats HDMI Video, Audio, Ethernet, USB2.0, Power, Serial Control, and IR Control
Signal Type Support DXLink Twisted Pair
USB2.0 USB2.0 supported point-to-point to DXLink 4K60 HDMI Receivers
Resolution Support 480p up to 3840x2160 @ 60Hz 4:4:4 and 4:2:2, including:
  • 3840x2160p@50/60 Hz, 4:2:0
  • 4096x2160p@50/60 Hz, 4:2:0
Audio Format Support Dolby TrueHD, Dolby Digital, DTS-HD Master Audio, DTS, 2 CH through 8 CH L-PCM (Dolby Digital and DTS support up to 48 kHz, 5.1 channels)
Compatible DXLink TX/RX 4K60 HDMI DXLink Twisted Pair Receivers
FG Numbers FG1061-582
