Roadworx RW240624 Analog Audio Snake 6 Pair Flexible 24AWG Black 500m Reels

Product Code: RW240624BK500

Key Features

Analog Audio Snake 6 Pair Flexible 24AWG Black 500M Reels

$11.00 inc GST
(M)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time 12+ weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

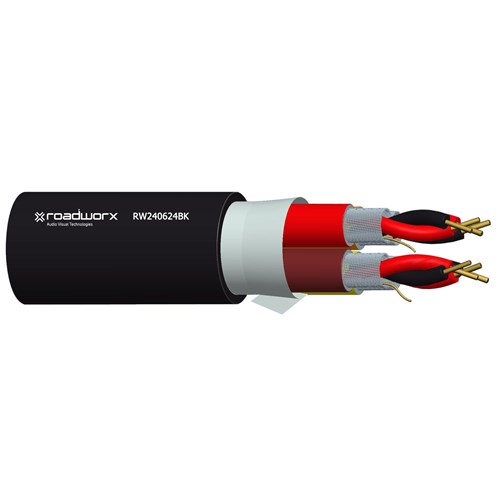

Roadworx RW240624 Analog Audio Snake 6 Pair Flexible 24AWG Black 500M Reels

Description

(14/0.12BC x 2C + PE Insulation + Drain Wire + 26/0.12BC Left Spiral Shield + 26/0.12BC Right Spiral Shield + Inner Sheath) x 6C + Cotton Wire + Cotton Paper + Outer Sheath Φ 11.7mm

Applicable Standards

N/A

Suitable Applications

Used to connect multiple audio channels in low level (microphone) and high level (line) componentry such as console board equipment for Radio television stations, post-production facilities, and sound system installation where superior flexibility is required.

Please Note: This cable is able to be cut in lengths other than 50m increments if needed. Please contact Sales@madisonav.com.au to enquire about cut lengths.

Colours also available - contact us for colour options, MOQ may apply

Warranty

We offer a 1 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.

Cable Description

Conductor 14/0.12+/-0.006BC
Insulation Pair: 6
Material: PE
Colour: Red/Black
Min. Thickness 0.20mm / Nom. Thickness ≥0.25mm / Nom. O.D 1.03+/-0.1mm
Drain Wire 19/0.12+/-0.006TC
Shielding

26/0.12+/-0.006mmBC Left Spiral Shield

26/0.12+/-0.006mmBC Right Spiral Shield
Inner Sheath Material: PVC / Colour: Brown, Red, Orange, Yellow, Green, Blue
Min. Thickness 0.30mm / Nom. Thickness ≥0.35mm / Nom. Sheath O.D 3.3+/-0.1mm
Spark Voltage: 3000V a.c
Filler Material: Cotton Wire, Cotton Paper
Outer Sheath Material: PVC / Colour: Black
Min. Thickness 0.64mm / Nom. Thickness ≥0.80mm / Nom. Sheath O.D11.7+/-0.2mm
Spark Voltage: 3000V a.c

Electrical Properties

Conductor Max D.C Resistance  117.77 ohm/km 20°C
Voltage Test: Core to Core 1000V a.c/1min
Voltage Test: Core to Screen 1000V a.c/1min

Physical Properties

Inner Sheath Elongation ≥300%
Inner Sheath Tensile Strength ≥13.6 N/mm2
Inner Sheath Elongation ≥100%
Inner Sheath Tensile Strength ≥12 N/mm2
Sheath Elongation ≥100%
Sheath Tensile Strength ≥12 N/mm2

Mechanical Properties

Operating Temperature Range -15 to 70
Max. Recommended Pulling Tension 156N
Min. Bend Radius (install) 117mm
Approximate Mass 17.66kg/100m
Sheath Printing ROADWORX RW240624 Analog Audio Snake, 6 pair, flexible, 24AWG (meter marking)
