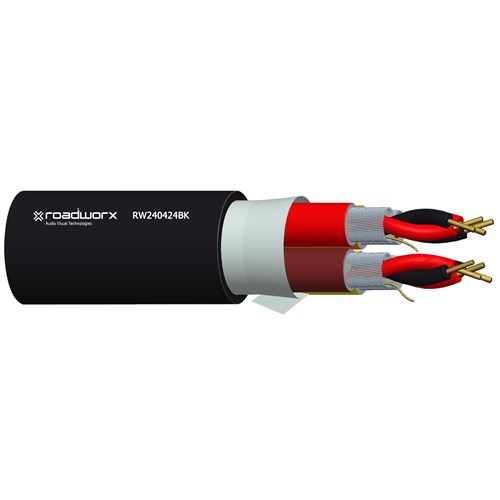

Analog Audio Snake, 4 pair, flexible, 24AWG, Black 500m reels
Description
(14/0.12BC x 2C + PE Insulation + Drain Wire + 26/0.12BC Left Spiral Shield + 26/0.12BC Right Spiral Shield + Inner Sheath) x 4C + Cotton Wire + Cotton Paper + Outer Sheath Φ 9.6mm
Applicable Standards
N/A
Suitable Applications
Used to connect multiple audio channels in low level (microphone) and high level (line) componentry such as console board equipment for Radio television stations, post-production facilities, and sound system installation where superior flexibility is required.
Please Note: This cable is able to be cut in lengths other than 50m increments if needed. Please contact Sales@madisonav.com.au to enquire about cut lengths.
Colours also available - contact us for colour options, MOQ may apply
We offer a 1 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.
Cable Description
26/0.12+/-0.006mmBC Left Spiral Shield
26/0.12+/-0.006mmBC Right Spiral Shield
Material: PVC / Colour: Brown, Red, Orange, Yellow
Min. Thickness 0.30mm / Nom. Thickness ≥0.35mm / Nom. Sheath O.D 3.3+/-0.1mm
Spark Voltage: 3000V a.c
Material: Cotton Wire, Cotton Paper
Material: PVC / Colour: Black
Min. Thickness 0.64mm / Nom. Thickness ≥0.80mm / Nom. Sheath O.D 9.6+/-0.2mm
Electrical Properties
1000V a.c/1min
Physical Properties
Mechanical Properties
ROADWORX RW240424 Analog Audio Snake, 4 pair,flexible, 24AWG (meter marking)
