Roadworx RW220224 Analog Audio Snake 2 Pair 24AWG Grey 500m Reels

Product Code: RW220224GY500

Key Features

Analog Audio Snake 2 Pair 24AWG Grey 500M Reels

$2.14 inc GST
(M)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

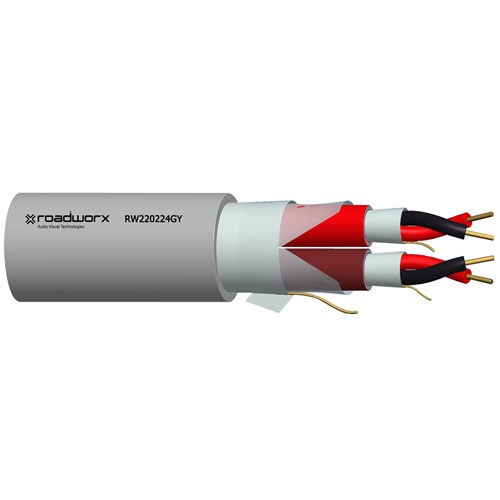

Roadworx RW220224 Analog Audio Snake 2 Pair 24AWG Grey 500M Reels

Description

(7/0.2TC x 1P + PE Insulation + Drain Wire + Al. Foil + PVC Sheath ) x 2C + Polyester Tape + Drain Wire + Al. Foil + PVC Sheath Φ7.1mm

Applicable Standards

N/A

Suitable Applications

Snake cables are used to connect multiple audio channels in lowlevel(microphone) and high-level(line) componentry such as console board equipment for recording studios, radio and television stations, post production facilities, and sound system installations.

Please Note: This cable is able to be cut in lengths other than 50m increments if needed. Please contact Sales@madisonav.com.au to enquire about cut lengths.

Colours also available - contact us for colour options, MOQ may apply

Warranty

We offer a 1 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Cable Description

Conductor 7/0.20+/-0.006TC
Insulation Pair: 2
Material: PE
Colour: Red/Black
Min. Thickness 0.20mm / Nom. Thickness ≥0.25mm / Nom. O.D 1.1+/-0.1mm
Screen

Al. Foil 100% Coverage
Drain Wire 7/0.20+/-0.006TC
Inner Sheath Material: PVC / Colour: Brown, Red
Min. Thickness 0.24mm / Nom. Thickness ≥0.30mm / Nom. Sheath O.D 2.9+/-0.1mm
Spark Voltage: 3000V a.c
Filler Polyester Tape 100% Coverage
Outer Sheath Material: PVC / Colour: Grey
Min. Thickness 0.48mm / Nom. Thickness ≥0.60mm / Nom. Sheath O.D 7.1+/-0.2mm
Spark Voltage: 3000V a.c

Electrical Properties

Conductor Max D.C Resistance 93.25 ohm/km 20°C
Voltage Test: Core to Core 1000V a.c/1min
Voltage Test: Core to Screen 1000V a.c/1min

Physical Properties

Inner Sheath Elongation ≥300%
Inner Sheath Tensile Strength ≥13.6 N/mm2
Outer Sheath Elongation ≥100%
Outer Sheath Tensile Strength ≥12 N/mm2

Mechanical Properties

Operating Temperature Range -15 to 70
Max. Recommended Pulling Tension 96N
Min. Bend Radius (install) 71mm
Approximate Mass 4.85kg/100m
Sheath Printing ROADWORX RW220224 Analog Audio Snake, 2 pair,
24AWG (meter marking)
