AMX HPX-USBC-100 USB-C Power Module

Product Code: AMX UHMF00C

Key Features
  • USB-C Charging Port – USB-C port capable of delivering up to 100W of power when connected to a compatible power supply
  • USB-A Charging Port – USB-A port capable of delivering up to 30W of power when connected to a compatible power supply
  • Note: Power Supply Not Included.
Enquire Now
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

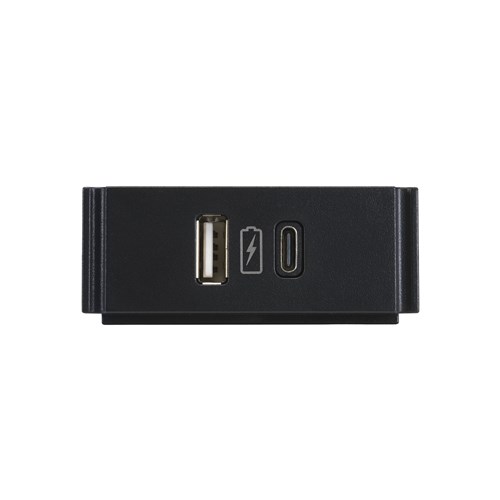

AMX HPX-USBC-100 USB-C Power Module

The AMX HPX-USBC-100 module provides both a USB-C and a USB-A connection with charging capability to the HydraPort® chassis. The power symbol on the module makes it easy for users to identify that power is provided. The HPX-USBC-100 is compatible with USB-C PD 3.0 power supplies up to 100W over USB-C, and up to 30W over USB-A. Power supplies not included.

Common Applications

Many modern laptops and mobile devices leverage USB-C connections for every signal type including video, audio, data, and power. The HPX-USBC-100 provides both a USB-C port and a USB-A port which can provide power to charge any connected device.
Warranty

We offer a 3 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Dimensions 1 HydraPort Unit
Product Weight 0.35 lb. (0.16 kg)
Front Panel Components One (1) USB-C Port (100W max)
One (1) USB-A port (30W max)
Integrated Cable USB Cables: (2) USB cables 6‘ (1.83 m) - connect the module to the USB Ports on the user supplied power supply
Included Accessories n/a
SKU Numbers AMX-UHMF00C
