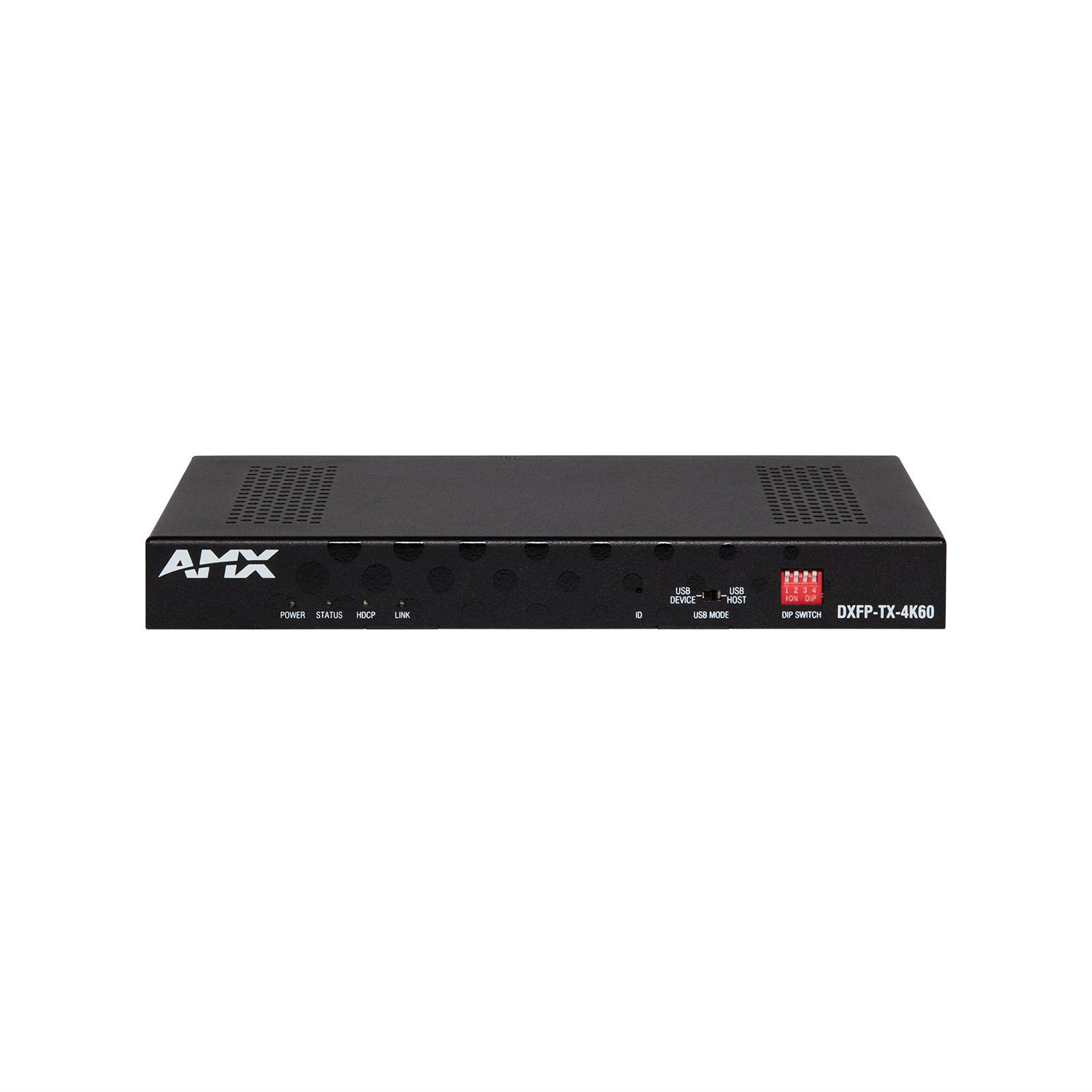

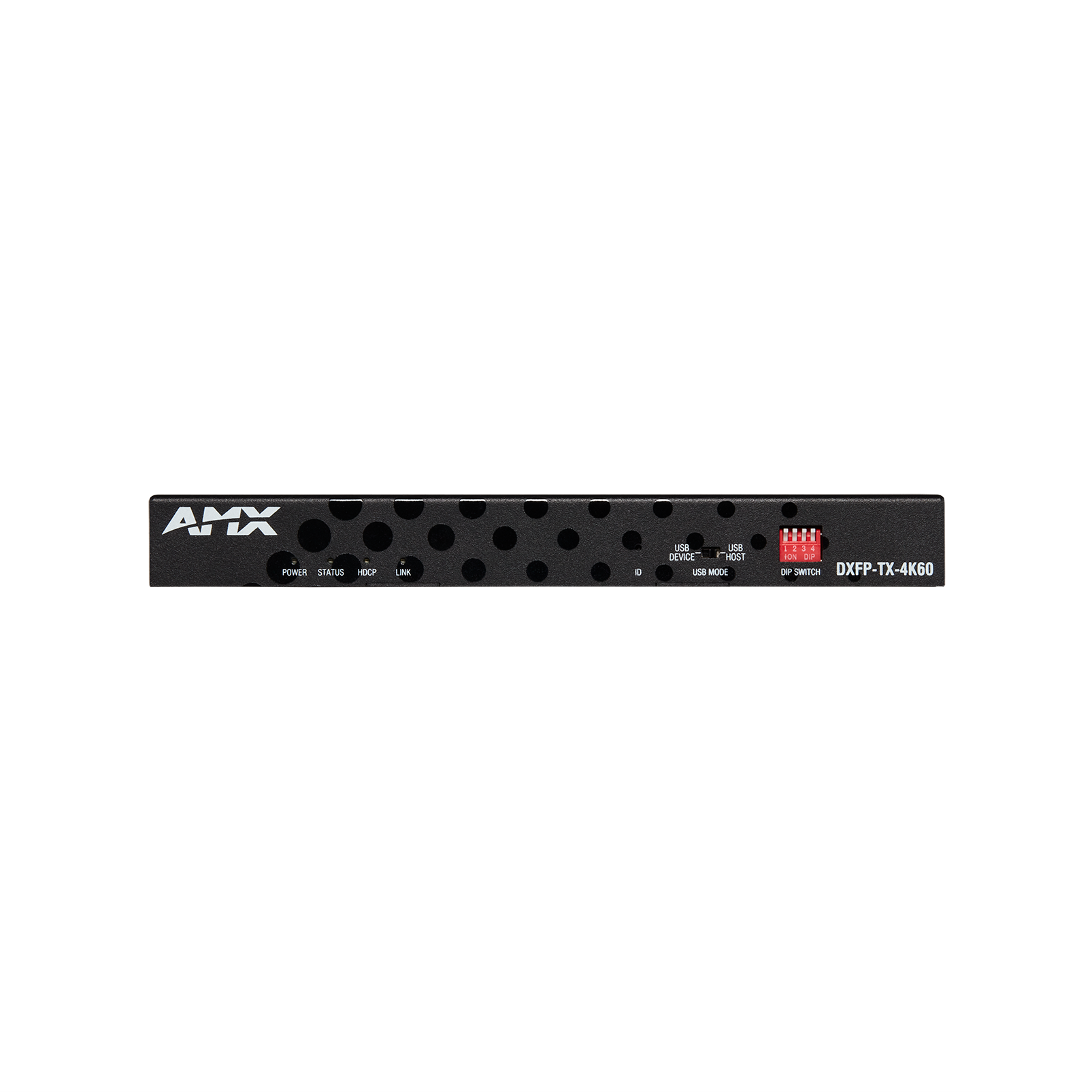

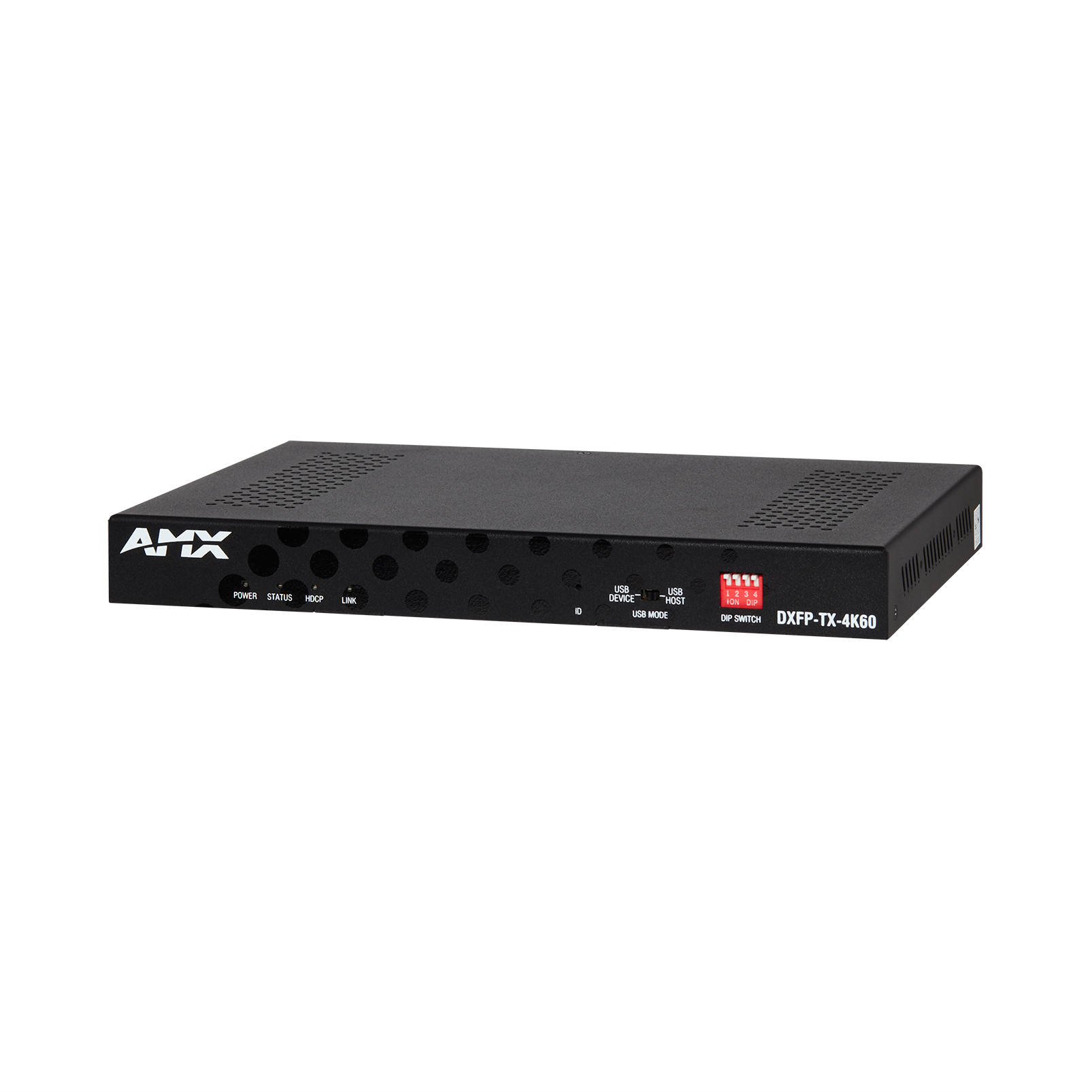

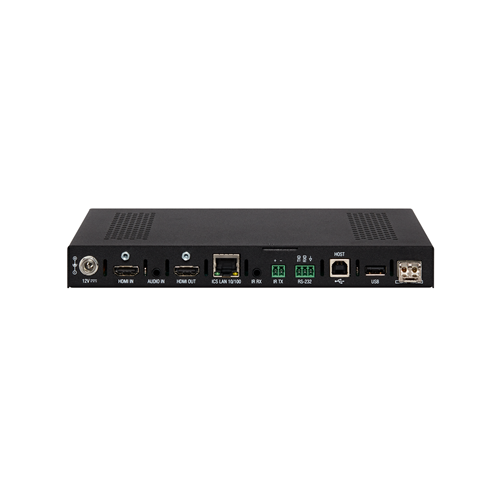

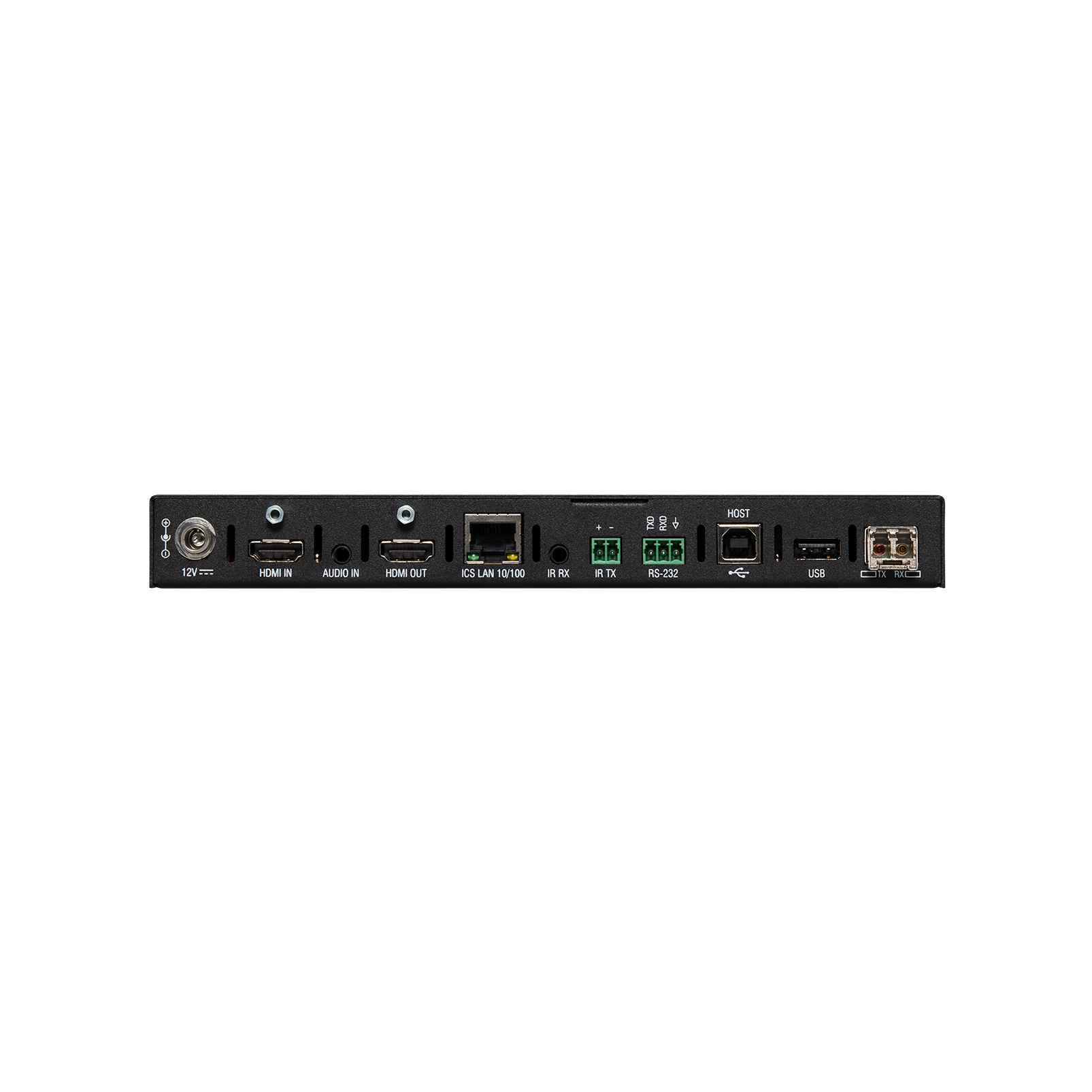

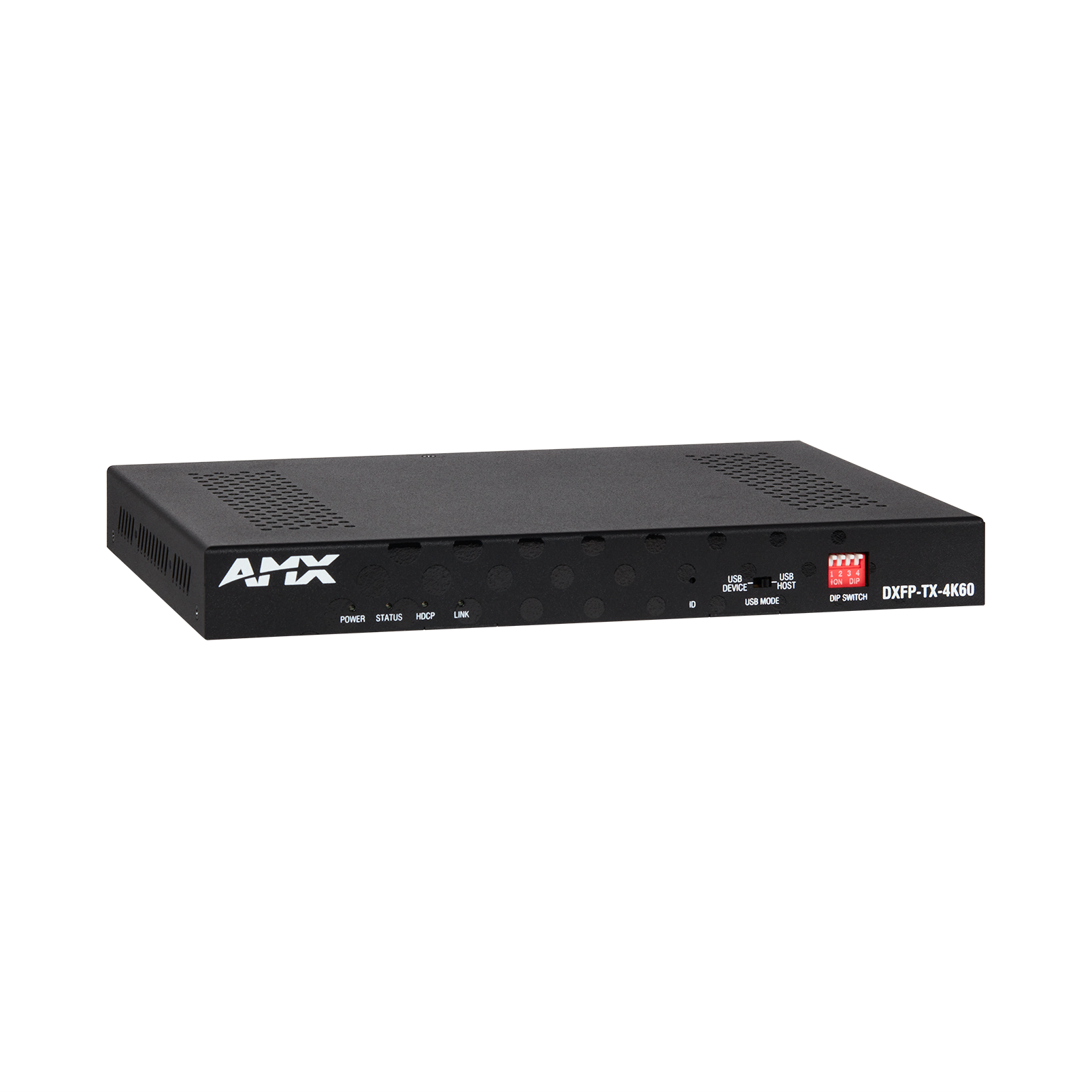

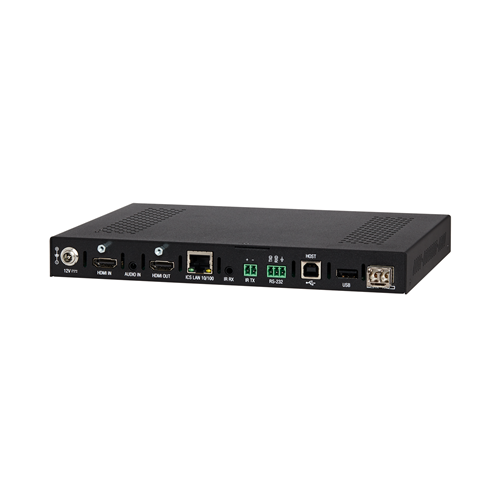

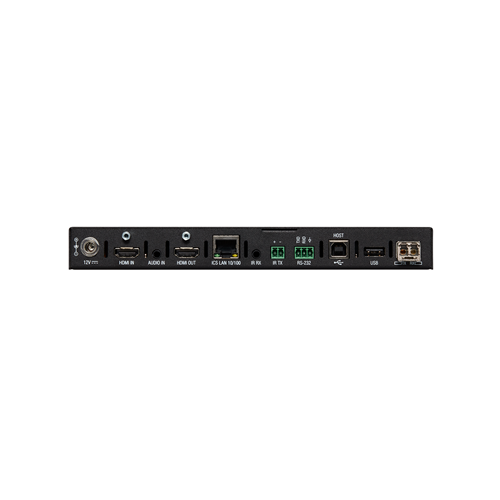

AMX DXFP-TX-4K60 - DXLink 4K60 HDMI Fiber Transmitter Module

AMX DXFP-TX-4K60 - DXLink 4K60 HDMI Fiber Transmitter Module

The DXLink 4K60 HDMI Fiber Transmitter is HDMI 2.0 and HDCP 2.2 compliant. It supports 4K60 4:4:4 video and High Dynamic Range (HDR) for optimum image quality and pixel-for-pixel image reproduction without chroma subsampling. DXLink 4K60 Fiber allows end users to realize the full potential of their source and display devices by fully supporting 36-bit Deep Color for the richest, most realistic video.

This module transmits audio, video, control, USB 2.0, and Ethernet over duplex fiber up to 300 meters to a DXLink 4K60 Fiber receiver. It includes a Multi-Mode Duplex (MMD) SFP, which can be replaced with a Single-Mode Duplex (SMD) SFP if needed.

Fiber uses light to distribute data rather than electric signals making it both the highest quality and most secure way to transport video as it is not susceptible to electronic noise or non-intrusive physical wiretapping. This module is compatible with DGX DXLink 4K60 Fiber input cards and DXLink 4K60 Fiber receivers.

Common Applications:

This transmitter is ideal for applications where the demands of high-resolution video clarity, long distance transmission, and maximum security need to be met without compromise, including campus-wide distribution of sources that are shared between classrooms, secure military applications, casinos, arenas, and museums.

Features:

• HDMI 2.0 4K60 4:4:4 Over Distance - Ideal for users running critical viewing applications such as operations centers requiring transport which uses the full fidelity of their displays
• High Dynamic Range (HDR) Support – Support for 36-bit Deep Color.
• HDCP 2.2 - Supports the latest video standards to realize the full capabilities of HDMI interfaces
• USB 2.0 - High-speed USB 2.0 data from devices like web cameras and storage devices are transmitted without the need for separate cables.
• As Always, Just One Cable– Just like all current AMX DGX Fiber solutions, video, audio, and control are delivered over a single cable. Many competitive products require two or more cable runs which adds significant cost.
• Single MMD SKU – All Fiber Modules include a Multi-Mode Duplex (MMD) SFP module. Customers may replace these with their own Single-Mode Duplex (SMD) module if needed.

Harman Professional University certifications required to purchase this product. Please contact your Account Manager to learn more.
