AMX DX-TX-DWP-4K60-BL DXLink 4K60 HDMI Wallplate Transmitter Black

Product Code: AMX VTT0001B

Key Features
  • HDMI 2.0 4K60 4:4:4 Over Distance: For users running critical viewing applications such as operations centers requiring transport which use the full fidelity of their displays
  • High Dynamic Range and Deep Color Support for HDR10 and up to 36-bit Deep Color
  • High-speed USB 2.0 data from devices like conferencing cameras and storage devices are transmitted without the need for separate cables
  • Support bi-directional RS-232 pass-through to a remote DXLink receiver
  • Always, Just One Cable: Video, audio and USB are delivered over a single twisted pair cable. 4K60 4:4:4 can be transmitted up to 40m when using Cat6a shielded cable or better
  • Powered locally or remotely: Power is supplied by a DXLink power-sourcing device, such as DGX DXLink 4K60 Twisted Pair Input Board or DVX-4K All-In-One Presentation Switcher, or locally with a desktop power supply
  • Easy Installation: Mounts in standard single-gang backbox
Enquire Now
Qty Each (inc GST) Each
Estimated Lead time 4-6 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

AMX DX-TX-DWP-4K60-BL DXLink 4K60 HDMI Wallplate Transmitter Black

The AMX DXLink 4K60 HDMI Wallplate Transmitter is a 4K60 4:4:4 capable distance transport solution with support for HDMI 2.0 and HDCP 2.2. It transmits audio, video, and USB 2.0 over one shielded Cat6A or Cat7 standard twisted pair cable. DXLink 4K60 HDMI Wallplate Transmitters are perfect for sending HDMI and control signals over long distances to remote DXLink 4K60 Receiver Modules or other compatible AMX Receivers such as the DGX DXLink 4K60 Twisted Pair Input Board or DVX 4K60 All-In-One Presentation Switchers. The transmitter's built-in USB Host port can be connected to a laptop to provide access to USB devices such as a room cameras or soundbars, connected to a DXLink receiver near a display.

Common Applications:

Mount the DXLink 4K60 HDMI Wallplate Transmitter in walls, lecterns, or floor boxes to connect guest equipment and send audio and video signals across the meeting room or to a classroom down the hall. Since it can be powered locally or remotely, the wallplate can be installed virtually anywhere.

Warranty

We offer a 3 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Dimensions (H x W x D) 4.23’’(107.5mm) x 1.78’’ (45.3mm) x 2.01’’(51mm)

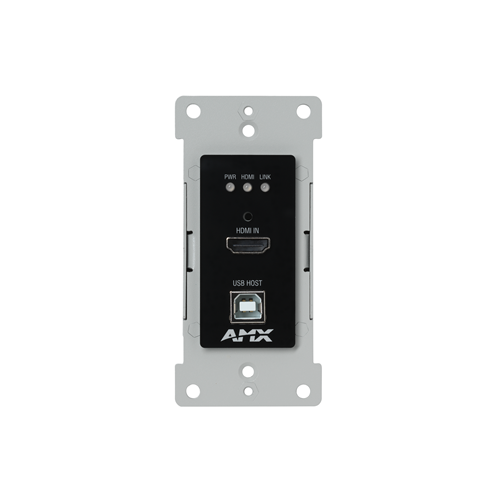

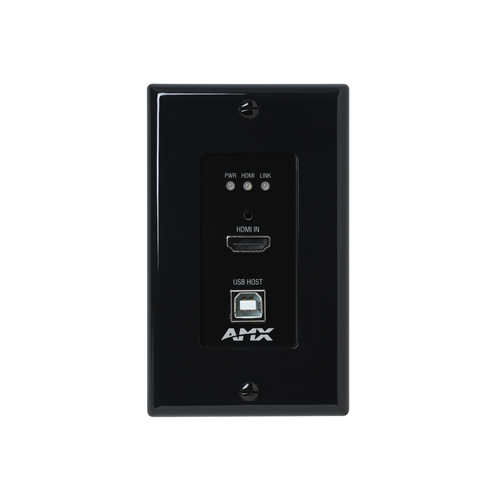

Front Connectors (1) HDMI, (1) USB 2.0 Type B Host Port

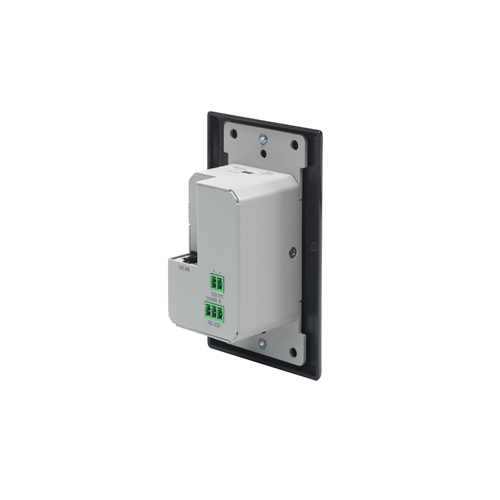

Back Connectors (1) 2-pin Phoenix Port for 12V DC Power, (1) RJ-45 DXLink Output Port, (1) 3-pin Phoenix Port for RS-232
HDMI Compatible Formats: HDMI, HDCP, DVI
Resolution Support Progressive: Up to 4096x2160@60 Hz
Interlaced: 1080i @ 50/60 Hz
Audio Format Support Dolby TrueHD, Dolby Digital, DTS-HD MA, DTS, 2 CH L-PCM, 6 CH L-PCM, 8 CH L-PCM Dolby Digital and DTS support up to 48kHz, 5.1 channels
USB Transport USB HID and USB 2.0 are supported point-to-point.

Compatible with:
DXLink 4K60 HDMI Receiver
DXLite 4K60 HDMI Receiver
Enova DGX with DXLink 4K60 Twisted Pair Input Board Enova DVX-4K Presentation Switcher.
Twisted Pair Cable Type & Length Shielded Cat 6/6a/7

For shielded Cat 6 cable:
Up to 115ft. (35m) for 4K@30/60Hz 4:4:4
Up to 197ft. (60m) for 1080P@60Hz
For shielded Cat 6a/7 cable:
Up to 131ft. (40m) for 4K@30/60Hz 4:4:4
Up to 230ft. (70m) for 1080P@60Hz
Power Requirements 5.5W Max 12V DC
Environmental • Operating Temperature: 32° F (0° C) to 104° F (40° C)
• Storage Temperature: -40° F (-40° C) to 185° F (85° C)
• Operating Humidity: 10% to 90%, non-condensing
• Storage Humidity: 10% to 95%, non-condensing
Regulatory Compliance FCC
CE EN 55032
CE EN 55035
ICES-003
IEC 62368-1
UL 62368-1
VCCI-CISPR 32
RCM
RoHS
Product Weight 0.44 lbs (200g)
SKU Numbers AMX-VTT0001B (DX-TX-DWP-4K60-BL - Black)
AMX-VTT0001W (DX-TX-DWP-4K60-WH - White)
