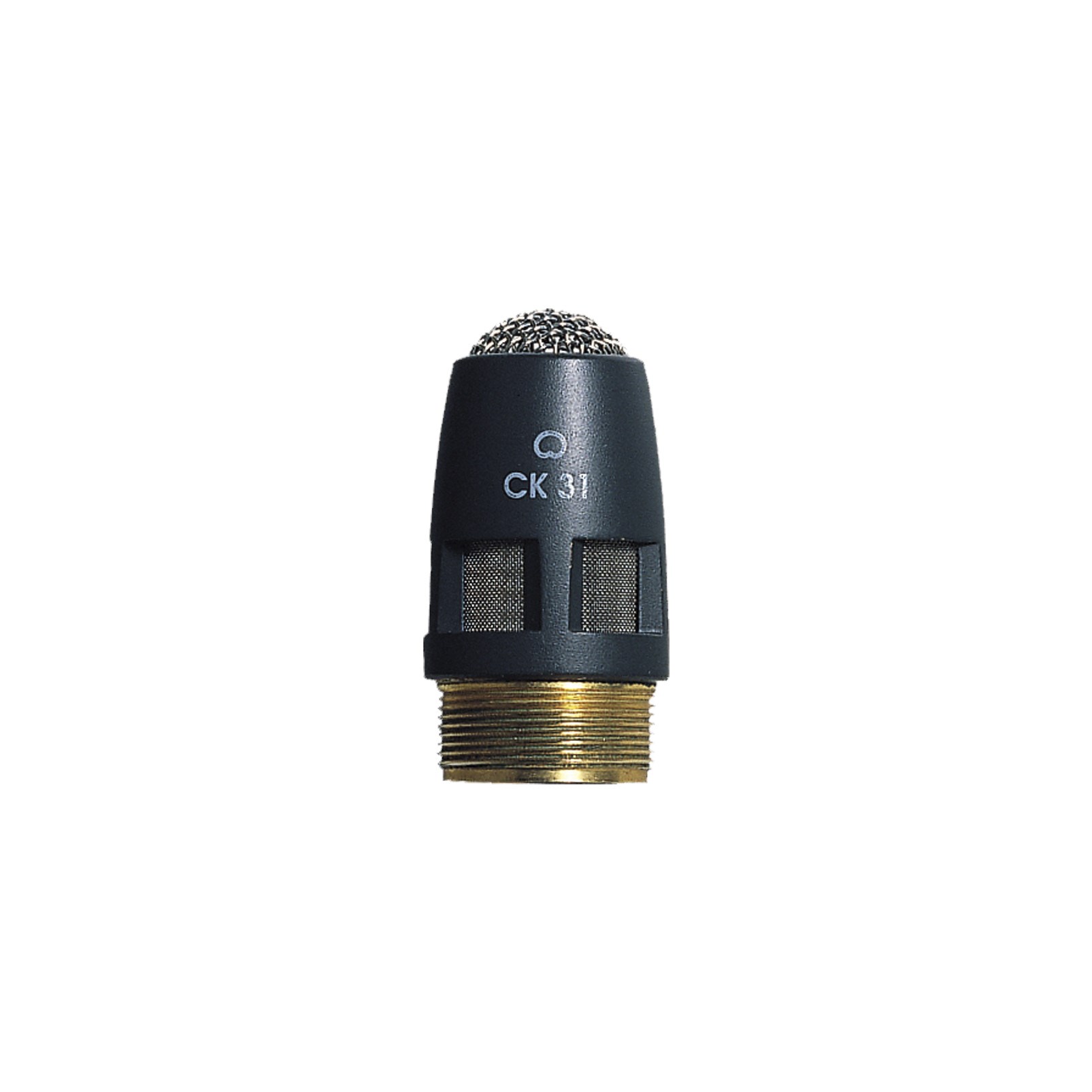

AKG CK31 High performance cardioid condenser microphone capsule DAM Series

Product Code: AKG 2765H00200

Key Features
Screw-on cardioid microphone capsule module, only for GN / HM modules, W30 windscreen included
$232.51 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Stock on order
  • Features
  • Overview
  • Technical Specs
  • Documents

The CK31 is a high-performance condenser microphone capsule with a wide cardioid polar pattern, especially designed for inexperienced speakers and applications where more than one person uses the microphone in turn. The CK31 capsule is integrated in a rugged metal housing and fits any mounting module of the DAM Series. To prevent contact problems, the capsule is equipped with large-area, self-cleaning, gold-plated contacts with deep threads to prevent misalignment and ensure extra-long life. The package includes a special two-part windscreen, which efficiently reduces wind and pop noise.

Features

Cardioid polar pattern

Eliminates noise from the rear

125° pickup angle

For inexperienced or very vivacious speakers

Highly reliable capsule contacts

Prevent contact problems and ensure extra-long life

Highly efficient two-in-one windscreen

Reduces wind and pop noise equally

Wide frequency range

For a speech-optimized audio performance

Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Audio frequency bandwidth 50 - 20000 Hz
Equivalent noise level 21 dB-A
Sensitivity 20 mV/Pa
Signal to Noise 73 dB-A
Electrical impedance 600 Ohms
Recommended load impedance 2000 Ohms
Polar Pattern Cardioid

Dimensions

Height 20 mm
Diameter 13.5 mm
Net Weight 5 g

Design

Finish matte dark gray

Audio Output

Type Modular Series Standard

Powering Interface

Voltage 9 to 52 V
Current 3 mA
